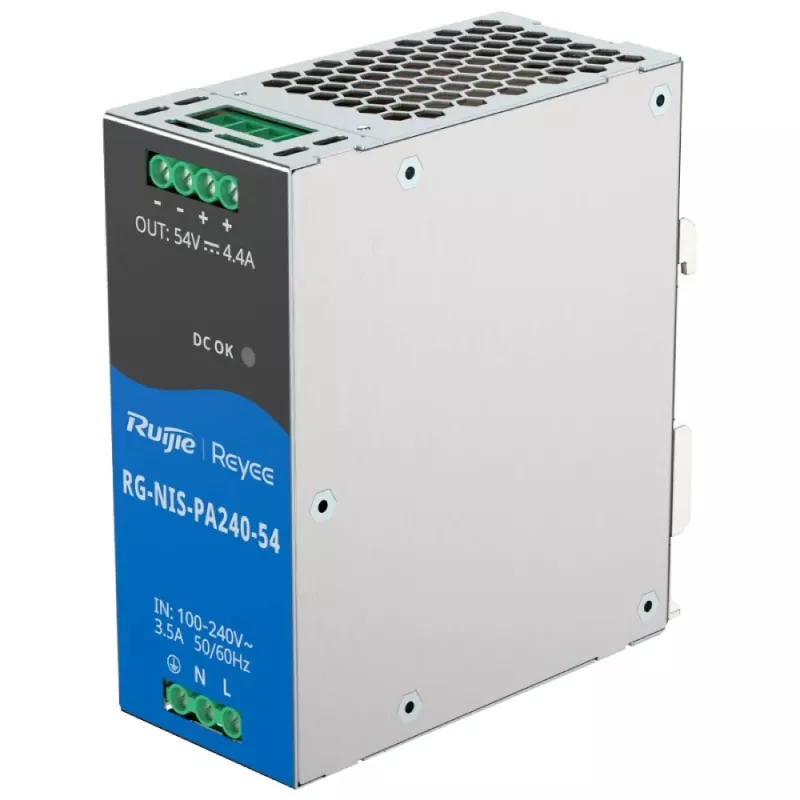

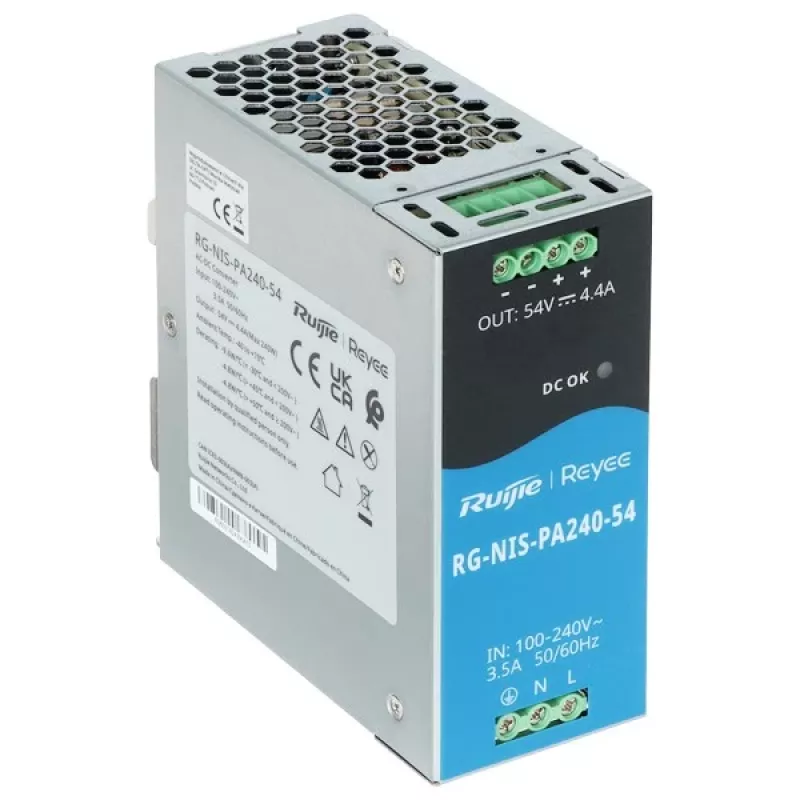

Reyee RG-NIS-PA240-54 industriële switch-voeding 240W 54V

The Reyee RG-NIS-PA240-54 is a high-performance AC/DC power module designed for Ruijie RG-NIS3100 Series industrial switches. Delivering 240W of power with an output voltage of 54V DC, this hot-swappable module ensures reliable and uninterrupted operation in demanding industrial environments. Its convection cooling and metal casing provide durability and efficient thermal management.

Advantages

Hot-swappable design allows for easy replacement without powering down the switch. Wide operating temperature range (-40°C to 75°C) ensures performance in extreme conditions. Comprehensive protection features (overcurrent, overvoltage, short-circuit) safeguard connected equipment.

Suitable for

• Ruijie RG-NIS3100 Series industrial switches
• Factory automation, transportation, and energy sector networks
• Outdoor or harsh environment installations

Key specifications

• Power Output: 240 W
• Input Voltage: 100-240 V AC, 50/60 Hz
• Output Voltage: 54 V DC
• Output Current: 4.44 A
• Form Factor: Hot-swappable module, slot-in installation
• Cooling: Convection cooling
• Operating Temperature: -40°C to 75°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 5% to 95% RH (non-condensing)
• Certifications: CE, FCC

Recommendations

Ensure compatibility with Ruijie RG-NIS3100 series switches. For optimal performance, install in a well-ventilated area. This power supply is ideal for mission-critical industrial networks requiring high reliability.
