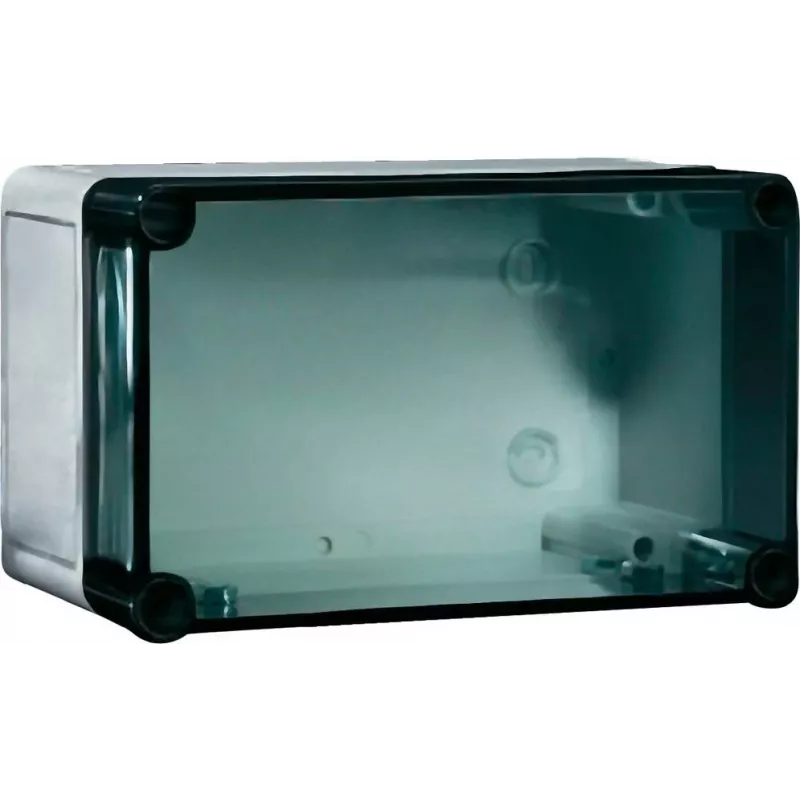

Rittal 9505.000 installatiebehuizing 94 x 94 x 81 mm polycarbonaat lichtgrijs RAL 7035 IP66 IK08

Rittal's compact installation enclosure delivers robust protection for electrical and electronic components in demanding environments. Its IP66 rating ensures complete defense against dust and powerful water jets, while the IK08 impact resistance guards against mechanical stress. The polycarbonate construction offers excellent insulation, chemical resistance, and a light grey RAL 7035 finish that blends seamlessly into industrial settings.

Advantages

The screw-fastened lid with polyurethane foam gasket maintains a reliable seal even under temperature fluctuations from -35 °C to +80 °C. Polyamide lid screws provide corrosion-free fastening, and internal mounting bosses simplify installation of DIN rails or mounting plates. UL 94 V-2 flammability rating adds an extra layer of safety.

Suitable for

• Protecting terminal blocks, relays, and small controllers
• Wall-mounted installations in factories, workshops, and outdoor shelters
• Applications requiring frequent access for maintenance or inspection
• Harsh environments with dust, moisture, or chemical exposure

Key specifications

• External dimensions: 94 x 94 x 81 mm (W x H x D)
• Material: Polycarbonate (PC), light grey RAL 7035
• Protection class: IP66, impact resistance IK08
• Lid: Screw-fastened with polyurethane foam gasket
• Operating temperature: -35 °C to +80 °C
• Certifications: UL, cUL, Germanischer Lloyd, VDE

Recommendations

For reliable component protection in compact spaces, this Rittal enclosure offers a proven solution with easy installation and long-term durability. Pair with appropriate cable glands and mounting accessories for a complete setup.
