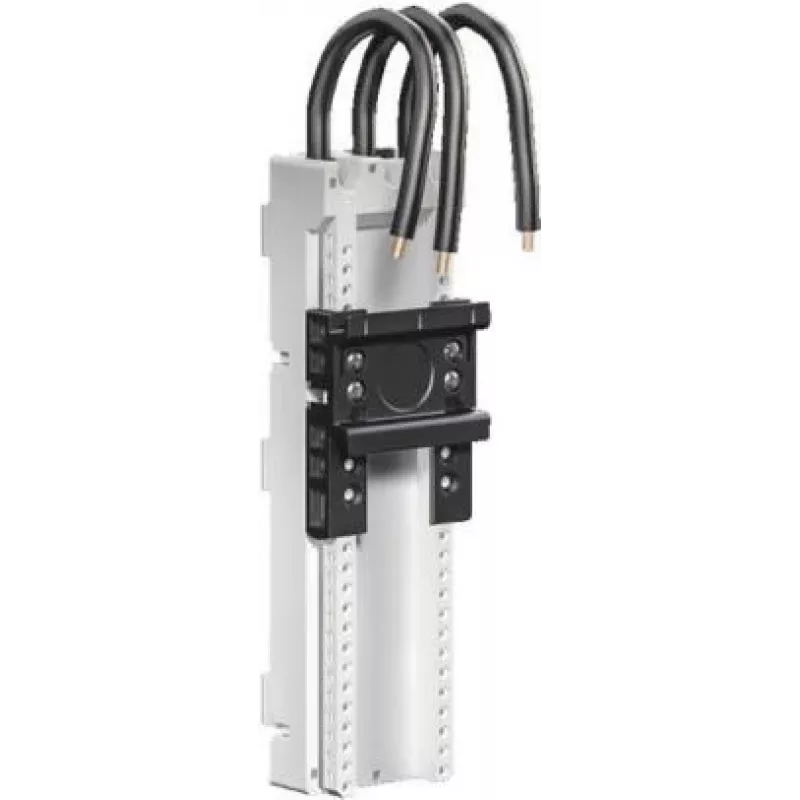

Rittal apparaatadapter Comfort 32A AWG10 3-polig 45x160mm - kabel - 3-polig (9635350)

In modern IT racks and industrial enclosures, connecting equipment to busbar power distribution often requires a reliable, high-current adapter that fits neatly into the existing infrastructure. The Rittal Device Adapter Comfort solves this by providing a 32 A, 3-pole connection point directly on the busbar, eliminating the need for complex wiring or additional distribution blocks.

Who is it for

This adapter is intended for system integrators, data centre technicians, and industrial electricians who need to power high-load devices from Rittal busbar systems. It is suitable for use in 230 V AC environments and can be installed in both IT and industrial enclosures.

Main features

• 32 A current rating for demanding loads
• 3-pole (2P+E) configuration for single-phase power
• Snap-on mounting for quick installation on Rittal busbars
• Compact 45 x 160 mm footprint saves space
• PC-ABS housing in jet black (RAL 9005)

Specifications

• Adapter Type: Device Adapter
• Current Rating: 32 A
• Number of Poles: 3-pole (2P+E)
• Input Connection: Rittal Busbar/PDU System (Internal)
• Output Connector Type: CEE 32A Socket
• Nominal Voltage: 230 V AC
• Wire Cross-Section: 6 mm² (AWG 10 equivalent)
• Frequency: 50/60 Hz
• Housing Material: PC-ABS
• Colour: Jet Black (RAL 9005)
• Protection Class: IP20
• Mounting: Snap-on for Rittal busbar systems
• Operating Temperature Range: -5 °C to +45 °C
• Application: Power distribution in IT racks and industrial enclosures
• Certifications: CE

Tips

Ensure the busbar system is de-energised before snapping the adapter into place. The adapter is designed for indoor use only, as indicated by its IP20 rating.
