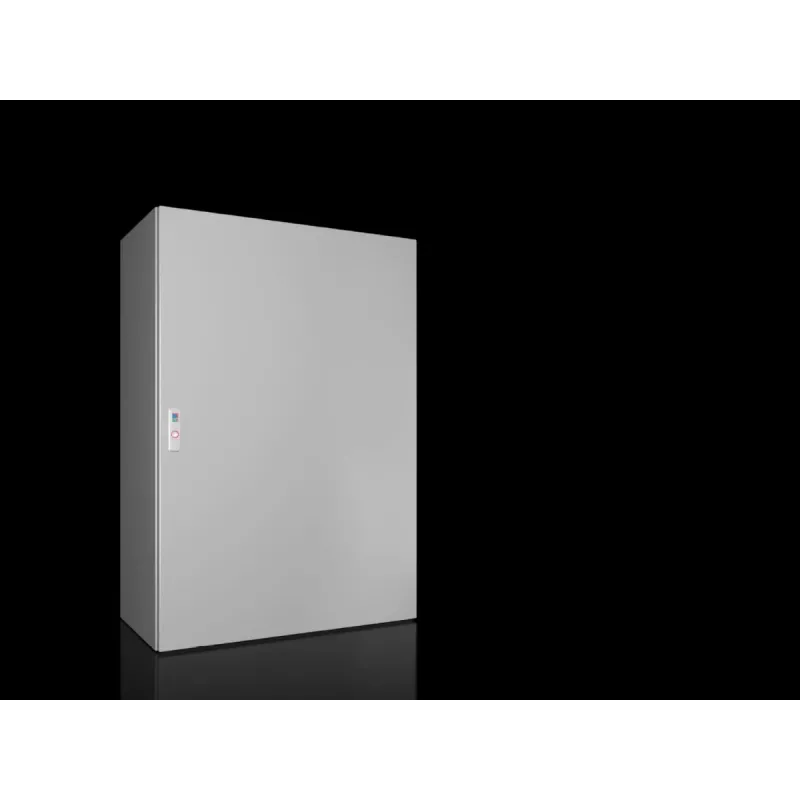

RITTAL AX 1281.000 compactkast 800x1200x300mm, staalplaat, IP66, RAL7035

With an IP 66 protection rating and robust sheet steel construction, the RITTAL AX 1281.000 compact enclosure safeguards electrical components in demanding industrial environments. Its spacious 800 x 1200 x 300 mm interior accommodates a wide range of equipment, while the included mounting plate simplifies installation.

Overview

The RITTAL AX 1281.000 is a single-door compact enclosure from the AX series, engineered for reliable protection and easy access. The door is hinged on the right and can be swapped to the left for flexible installation. A 3 mm double-bit lock secures the enclosure, and a gland plate in the base facilitates cable entry. The enclosure and door are dip-primed and powder-coated in RAL 7035 light grey, providing a durable, corrosion-resistant finish. The mounting plate is zinc-plated for added protection.

What stands out

• IP 66 and NEMA 4 protection against dust and water
• IK08 impact resistance for harsh conditions
• Reversible door hinge for left or right opening
• Includes zinc-plated mounting plate
• Gland plate in base for easy cable management
• UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE approvals

Technical details

• Dimensions (W x H x D): 800 x 1200 x 300 mm
• Material: Sheet steel
• Door thickness: 1.5 mm
• Enclosure thickness: 1.25 mm
• Mounting plate thickness: 2.5 mm
• Lock type: 3 mm double-bit
• Colour: RAL 7035 (light grey)

Our verdict

A versatile and durable enclosure for industrial control and automation applications, offering excellent protection and ease of installation.
