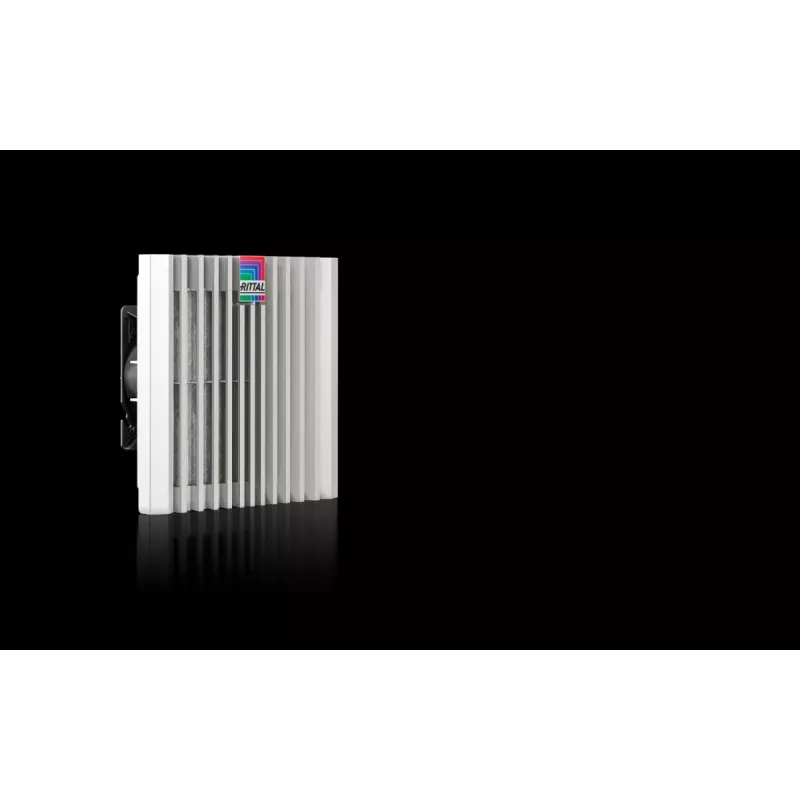

Rittal Blue e+ EMC filterventilator 100/115 m³/h RAL 7035 3239800

With an airflow of 100 m³/h at 50 Hz and 115 m³/h at 60 Hz, this Rittal Blue e+ filter fan provides effective enclosure cooling while maintaining electromagnetic compatibility. The EMC shielding ensures reliable operation in environments with electromagnetic interference.

Overview

The Rittal Blue e+ EMC filter fan is designed for cooling electrical enclosures. It operates at 230 V AC, 50/60 Hz, and consumes 18 W at 50 Hz or 17 W at 60 Hz. The fan features a snap-on mounting system and spring-type terminals for easy installation. A standard filter mat is included.

What stands out

• EMC shielding for electromagnetic compatibility
• Airflow: 100 m³/h (50 Hz) / 115 m³/h (60 Hz)
• Protection category IP54
• Light grey (RAL 7035) ABS/PC housing
• Snap-on mounting with spring-type terminals

Technical details

• Product type: Filter fan
• Series: Blue e+
• Rated operating voltage: 230 V AC
• Rated operating frequency: 50/60 Hz
• Power consumption: 18 W (50 Hz) / 17 W (60 Hz)
• Noise level: 50 dB(A) at 50 Hz / 52 dB(A) at 60 Hz
• Operating temperature range: -10 °C to +55 °C
• External dimensions (WxH): 255 x 255 mm
• Installation cut-out (WxH): 223 x 223 mm
• Depth (into enclosure): 105 mm
• Material: ABS/PC plastic
• Colour: RAL 7035 (light grey)

Our verdict

A reliable EMC-shielded filter fan for enclosures in electromagnetically sensitive environments, offering solid airflow and IP54 protection.
