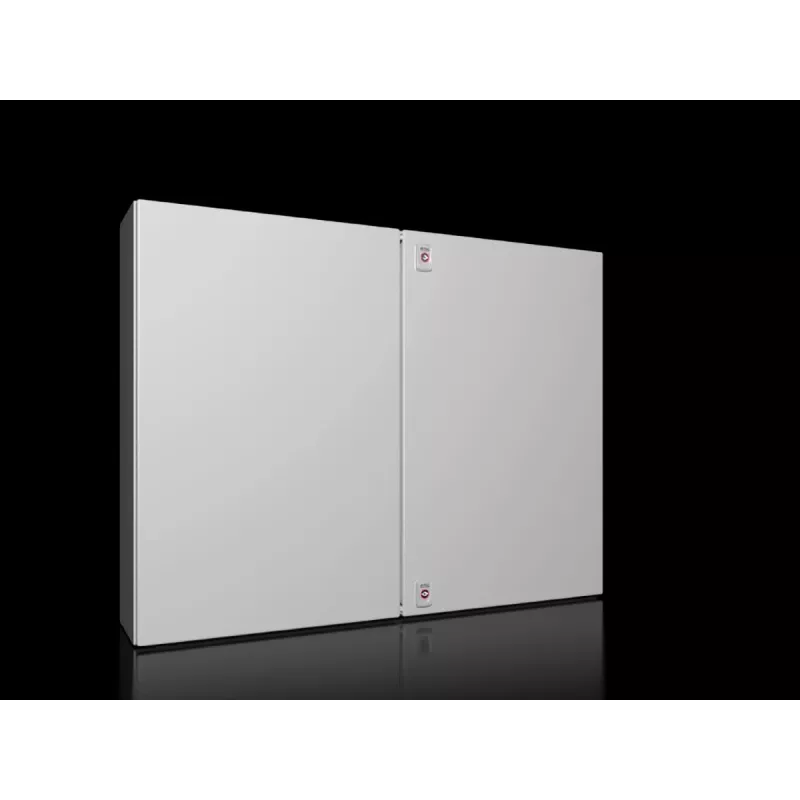

Rittal compacte behuizing AX, 2-deurs, 1000x760x210 mm

Industrial automation and control systems demand enclosures that protect sensitive electronics from harsh environments. The Rittal Compact Enclosure AX delivers IP 66 protection in a space-saving, wall-mountable design, ensuring reliable operation even in dusty or wet conditions.

Who is it for

This enclosure is ideal for system integrators, panel builders, and maintenance teams in manufacturing, process industries, and infrastructure. It suits applications such as motor control centers, PLC cabinets, and power distribution units where space is limited but protection cannot be compromised.

Main features

• Two-door design with 130° opening angle for easy access to mounted components.
• Robust sheet steel construction with dipcoat-primed and powder-coated finish in RAL 7035 light grey.
• Concealed hinges and foamed-in PU door seal ensure a tight, durable seal against contaminants.
• Includes a zinc-plated mounting plate for straightforward component installation.
• Bottom gland plate included for cable entry, with optional wall-mounting brackets.
• 3 mm double-bit lock (interchangeable) provides secure closure.

Specifications

• External dimensions (WxHxD): 1000 x 760 x 210 mm
• Material: Sheet steel
• Protection category: IP 66
• NEMA rating: NEMA 4
• Colour: RAL 7035 (light grey)
• Mounting plate: Included, zinc-plated
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE, CSA
• Door hinge type: Concealed hinges
• Door seal: Foamed-in PU seal
• Lock type: 3 mm double-bit

Tips

For outdoor installations, pair this enclosure with a rain canopy and ensure proper cable glands are used to maintain the IP rating. The mounting plate can be pre-assembled outside the enclosure for easier wiring.
