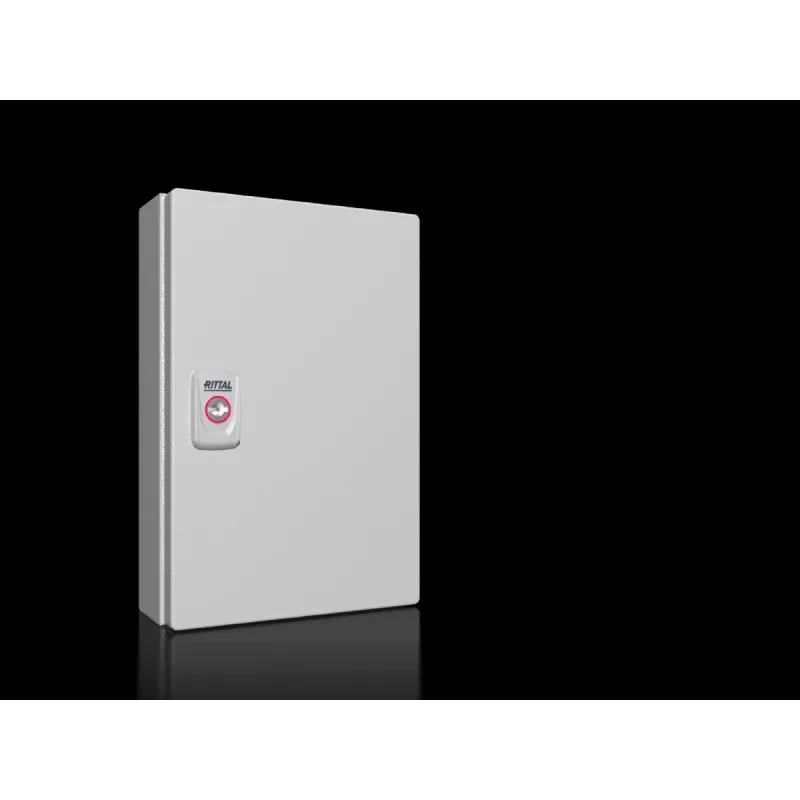

Rittal KX BHT kleine behuizing 200x300x80 mm, staal, lichtgrijs, IP66 1552000

The Rittal KX BHT 1552.000 is a compact wall-mount enclosure built for industrial control and distribution tasks where space is tight but protection requirements are high. Its 200 x 300 x 80 mm footprint accepts standard components, while the sheet steel body with dipcoat-primed, powder-coated finish in RAL 7035 light grey stands up to demanding environments.

Highlights

• External dimensions: 200 mm height, 300 mm width, 80 mm depth
• Material: sheet steel, 1.25 mm thickness, dipcoat-primed and powder-coated
• Colour: RAL 7035 light grey
• Protection rating: IP66 and NEMA 4, impact resistance IK08
• Solid hinged door with quarter-turn lock (3 mm double-bit)
• Galvanized sheet steel mounting plate and bottom gland plate included
• PU foam seal for reliable gasketing
• Approvals: UL, cUL, TÜV, EAC

In daily use

The KX BHT is designed for wall or surface mounting in control cabinets, machine interfaces, or junction boxes. The hinged door opens to a flat mounting plate, making component installation straightforward. The quarter-turn lock can be operated with a standard 3 mm double-bit key, and the PU foam seal maintains the enclosure's high protection rating even after repeated openings.

Full specifications

• Enclosure type: Small enclosure, wall-mount
• Material: Sheet steel
• Surface finish: Dipcoat-primed, powder-coated
• Colour: RAL 7035 (light grey)
• Protection rating: IP66, NEMA 4
• Impact resistance: IK08
• External height: 200 mm
• External width: 300 mm
• External depth: 80 mm
• Material thickness: 1.25 mm
• Door type: Solid, hinged
• Lock type: Quarter-turn lock, 3 mm double-bit
• Mounting plate: Included, galvanized sheet steel
• Gland plate: Included, bottom
• Seal material: PU foam
• Approvals: UL, cUL, TÜV, EAC
• Mounting type: Wall / surface

Final note

The Rittal KX BHT 1552.000 combines a compact form factor with high protection, making it a reliable choice for industrial control applications.
