RITTAL sokkel-koppellip TS montagehoek verpakking 20 stuks (8660140)

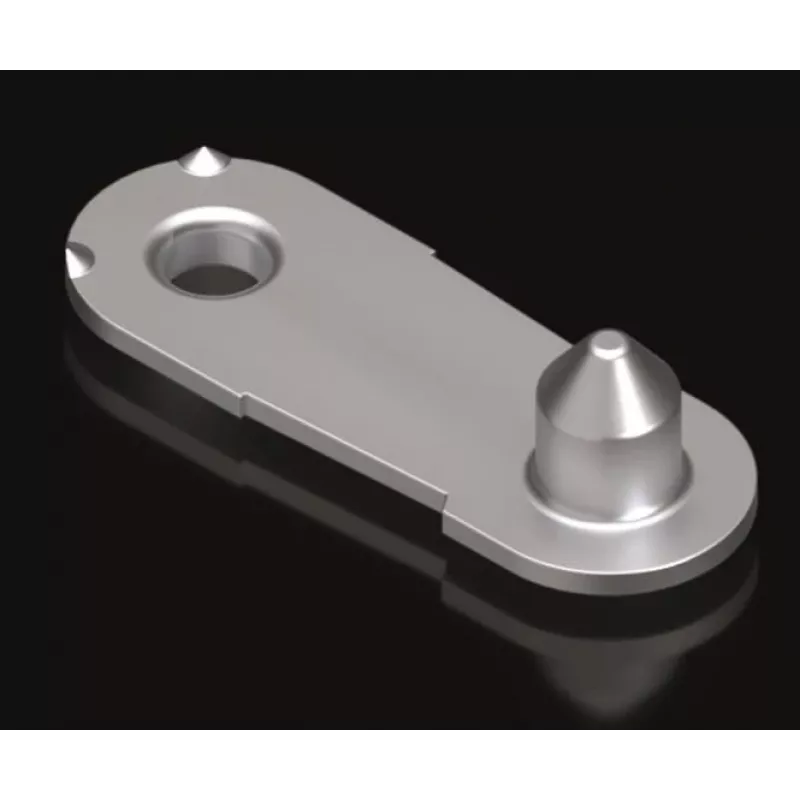

RITTAL Sockel-Anreihlaschen TS mounting brackets pack 20 pcs are metal joining brackets designed for use with Rittal TS enclosure bases and plinths. Supplied as a set of 20 pieces, these brackets allow installers to align and secure adjacent cabinet bases to achieve a continuous, stable run of enclosures. They are intended for use in industrial environments such as server rooms, workshops and electrical installations where precise alignment and solid mechanical connection between base elements is required.

Advantages

These mounting brackets provide dependable mechanical connection and alignment between neighboring enclosure bases. Made of robust metal suitable for industrial use, they simplify assembly by offering repeatable positioning and ease of installation. Using dedicated brackets reduces installation time compared with improvised fixings and helps ensure a uniform plinth line and improved stability of the overall rack or cabinet row.

Suitable for

Key specifications

How to use

Position the brackets between adjacent TS enclosure bases where a mechanical connection is required. Align the cabinet base edges and fit the bracket so that mounting holes match the base attachment points, then secure with appropriate fasteners through the bracket into the base structure. Follow the enclosure manufacturer’s assembly instructions for recommended torques and fastening sequence to ensure correct alignment and load distribution. Repeat the process for each junction along the base run.

Recommendations

Use original RITTAL-compatible fasteners and follow site safety procedures. Verify dimensional fit on Rittal TS base variants before installation and use corrosion-appropriate hardware in damp or corrosive environments.
