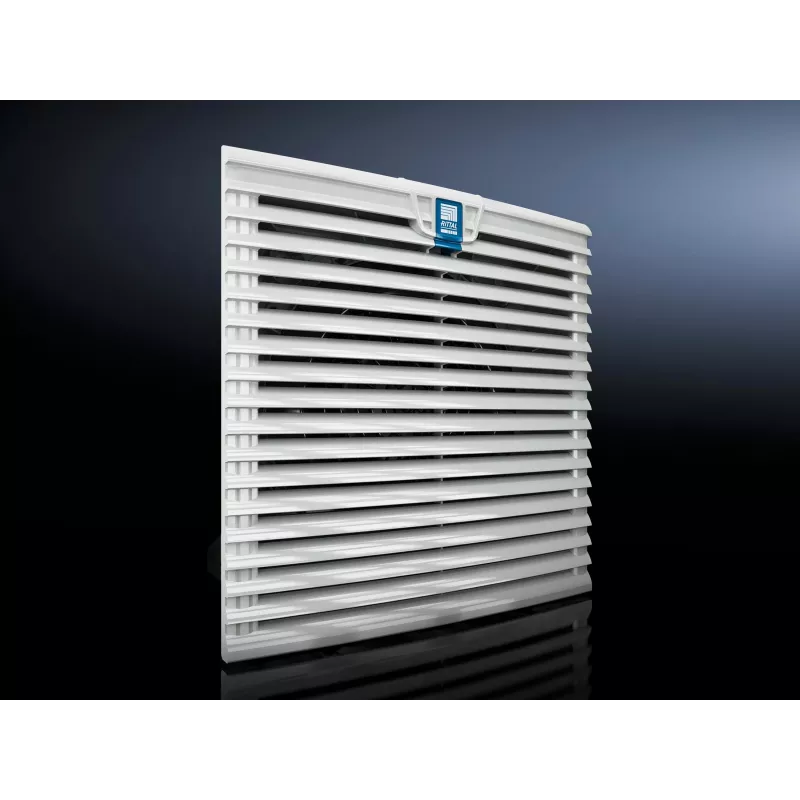

Rittal uitlaatfilter voor SK 3237.1xx filterventilatoren, G3, IP54, 204 x 204 mm, lichtgrijs 3237208

Protect your enclosure with the Rittal outlet filter, engineered for SK 3237.1xx filter fans. Its progressively structured chopped-fibre mat achieves filter class G3 per EN 779, ensuring reliable dust filtration while maintaining optimal airflow.

Overview

The Rittal outlet filter (model 3237208) is a passive ventilation component designed for industrial enclosures. It features a flat, snap-on design for tool-less installation and easy filter mat replacement. The frame is made of ABS plastic in RAL 7035 light grey, blending seamlessly with standard enclosure aesthetics.

What stands out

• Filter class G3 (EN 779) / ISO Coarse 50% (ISO 16890) for effective particle retention
• IP54 protection when correctly installed with filter mat
• Tool-less snap-on mounting for quick installation and maintenance
• Compatible with Rittal SK 3237.1xx series filter fans
• Flat design with outward airflow direction

Technical details

• Product type: Outlet filter
• Compatibility: Rittal SK 3237.1xx filter fans
• Material (frame): ABS plastic
• Material (filter mat): Chopped-fibre mat, progressively structured
• Filter class: G3 (EN 779) / ISO Coarse 50% (ISO 16890)
• Protection category: IP54 (when correctly installed with filter mat)
• Mounting type: Snap-on (tool-less)
• Colour: RAL 7035 (light grey)
• Overall dimensions (W x H x D): 204 x 204 x 16 mm
• Cut-out dimensions (W x H): 177 x 177 mm
• Operating temperature range: -10 °C to +55 °C
• Approvals: UL/cUL, TÜV, GOST
• Application: Passive ventilation for industrial enclosures
• Airflow direction: Outward (from enclosure)

Our verdict

A reliable outlet filter that matches Rittal's quality standards, offering straightforward installation and dependable filtration for filter fan systems.
