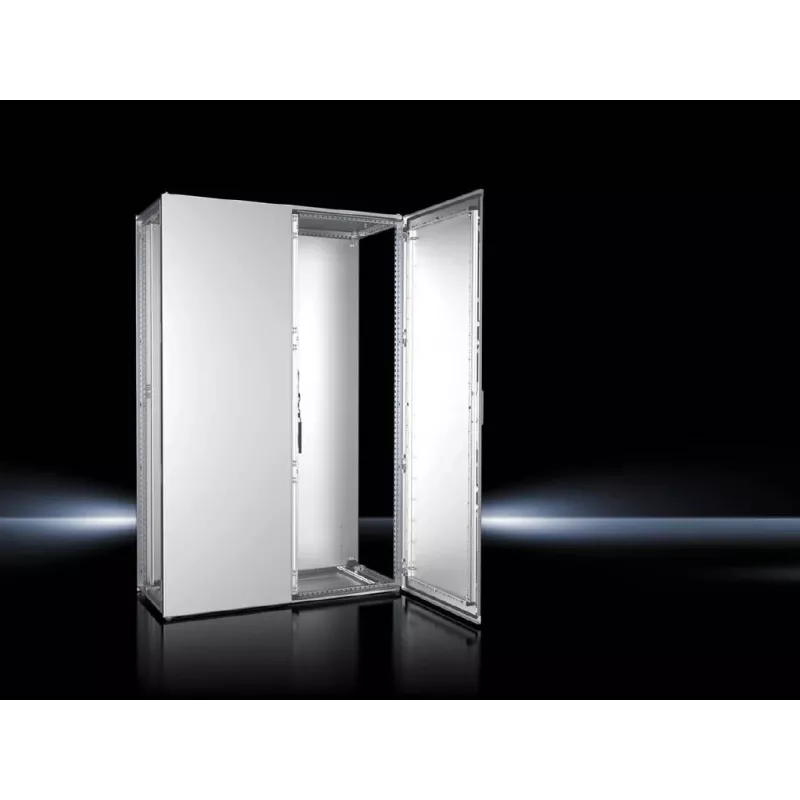

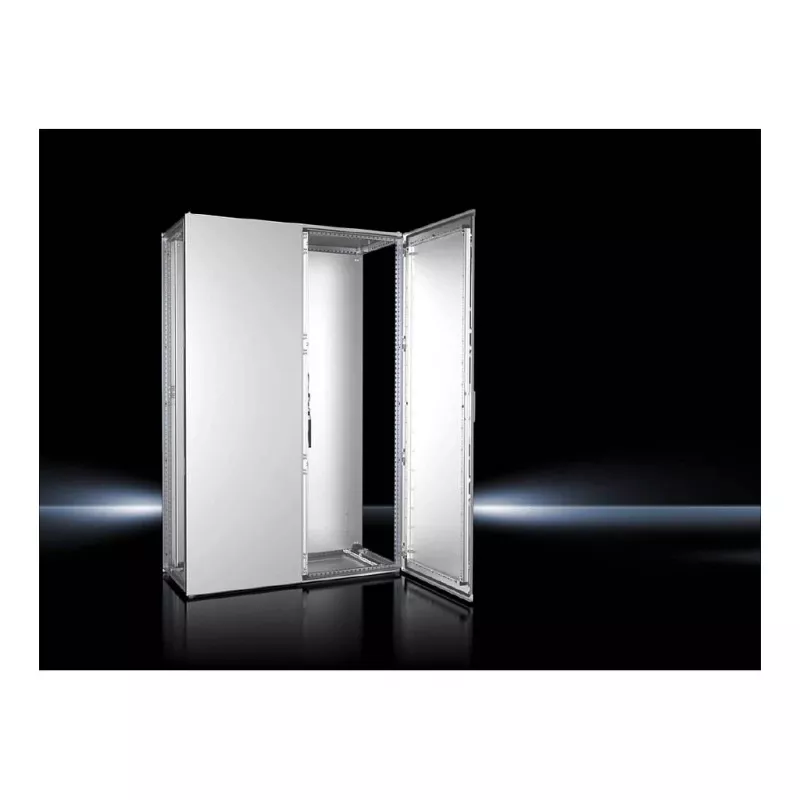

Rittal VX aaneenschakelbaar kastsysteem, 2-deurs, 1200x1800x500 mm, IP55, RAL 7035

Where standard enclosures force compromises, the Rittal VX Baying Enclosure System delivers a seamless side-by-side configuration with a spacious 1200x1800x500 mm footprint. Built from robust sheet steel and finished in light grey RAL 7035, it supports up to 1000 kg static frame load, making it a dependable backbone for industrial automation, power distribution, and IT infrastructure.

Highlights

• Baying enclosure system for seamless side-by-side configuration
• Two front doors with 130° opening angle for full access
• IP55 protection and NEMA 12 rating guard against dust and water jets
• Powder-coated surface in RAL 7035 light grey, resistant to wear
• Depth-adjustable mounting plate included, with 3.0 mm thickness
• Multi-piece gland plate simplifies cable entry and management
• IK09 impact protection for demanding environments

In daily use

The VX system is designed for practical flexibility. The doors open wide, allowing unobstructed access to internal components. The mounting plate can be adjusted in depth to accommodate varying component depths, and the gland plate can be customized for cable routing. The 4-point locking system secures the enclosure with a single handle operation, while the comfort handle accepts standard security inserts for keyed or tool-based locking. Whether you are integrating drives, controllers, or network gear, this enclosure adapts to your needs.

Full specifications

• Series: VX 25
• Material: Sheet steel
• Surface finish: Powder-coated
• Colour: RAL 7035 (Light Grey)
• Number of doors: 2
• Door type: Front door(s)
• Lock type: 4-point locking system, comfort handle for security lock insert
• Protection category: IP 55
• NEMA rating: NEMA 12
• IK code (impact protection): IK09
• Mounting plate: Included, depth-adjustable
• Frame load capacity (static): Up to 1000 kg
• Gland plate: Multi-piece, for cable entry
• Door opening angle: 130°
• Material thickness (frame): 1.5 mm
• Material thickness (door): 2.0 mm
• Material thickness (mounting plate): 3.0 mm
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, RMRS, VDE, CSA, EAC
• Application: Industrial automation, power distribution, IT infrastructure

Final note

Engineered for heavy-duty applications, the Rittal VX Baying Enclosure System combines flexibility, security, and durability in a single solution.
