RJ45-stekker veldmontage Cat.6A metaal haaks DeLOCK 86289

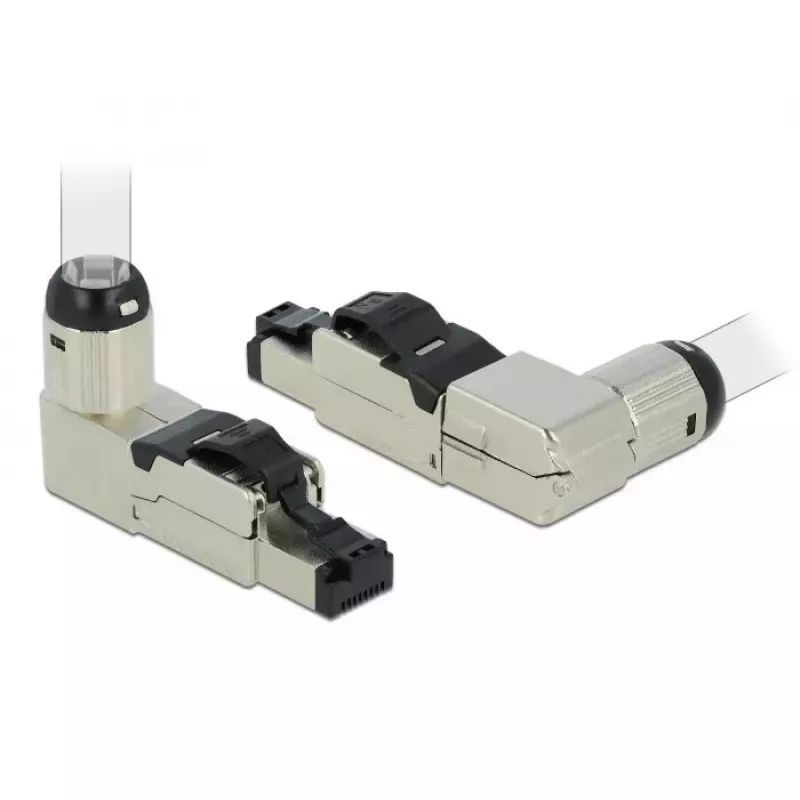

The DeLOCK RJ45 Plug field assembly Cat.6A is a metal angled RJ-45 connector designed for reliable network cable connections. The connector supports Category 6A performance and is intended for field assembly on compatible network cables. The housing is metal with a grey finish; the product includes one RJ-45 plug and is supplied in a polybag. The inner diameter for cable entry is 7.5 mm, and the connector measures 33.2 mm in width and 63.4 mm in depth.

Advantages

The angled cap can be positioned in four different directions, allowing the same connector to cover multiple installation orientations without additional parts. Tool-free assembly simplifies and speeds up the installation process, and the metal housing increases mechanical durability compared with plastic plugs. The product is compact and packaged in a polybag for convenient storage and transport.

Suitable for

• Field assembly of Cat.6A network cables
• Installations requiring angled RJ45 connections
• Situations where tool-free, quick assembly is needed
• Environments where a metal-bodied connector is preferred for durability

Key specifications

• Connector: 1 x RJ-45 (male)
• Category: Cat.6A
• Inner cable diameter: 7.5 mm
• Dimensions (W x D): 33.2 mm x 63.4 mm
• Material: metal housing
• Colour: grey
• Packaging: polybag
• Brand: DELOCK, MPN: 86289, EAN: 4043619862894

How to use

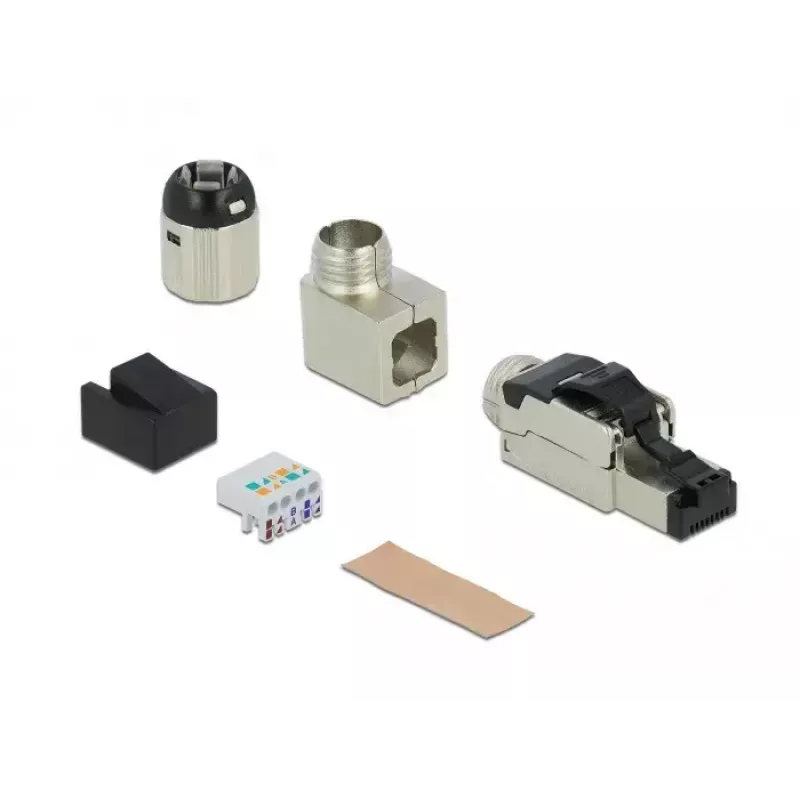

Prepare the network cable by stripping the outer jacket to expose the twisted pairs and ensuring the exposed diameter matches the 7.5 mm inner opening. Insert the wires into the plug according to the required wiring standard and assemble the connector by sliding the metal housing and angled cap into place. Rotate the angled cap to the desired orientation (one of four positions) or remove it if a straight exit is needed. Complete the assembly by securing the housing as specified in the included instructions.

Recommendations

Use this DeLOCK RJ45 Plug for Cat.6A installations where a metal, angled field-assembled connector is required. Verify cable diameter compatibility and wiring standard before assembly, and avoid excessive force when securing the housing to prevent damage to the contacts.
