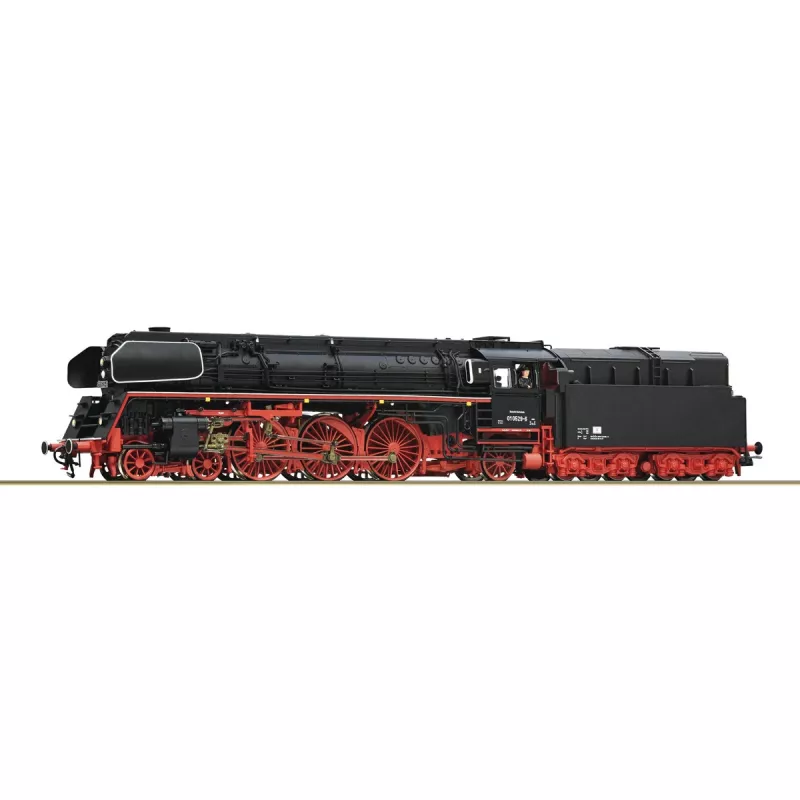

Roco 7110017 H0 stoomlocomotief BR 01 0529-6 van de DR

Model railway enthusiasts operating a Deutsche Reichsbahn (DR) layout in Era IV will appreciate the Roco 7110017 H0 steam locomotive BR 01 0529-6. This finely detailed model captures the distinctive appearance of the reconstructed class 01.05, with road number 01 0529-6, as it appeared between 1970 and 1990. The locomotive features a die-cast metal chassis and a metal boiler, providing excellent pulling power and durability. Equipped with a 5-pole motor with flywheel, it delivers smooth low-speed performance. Triple headlights change direction with the direction of travel, and the NEM 362 coupling with close coupling mechanism ensures reliable operation on curves down to radius R3 (419.6 mm). The model is prepared for digital operation with an 8-pin NEM 652 interface, allowing easy decoder installation for those who wish to upgrade from analog DC.

Key specifications

• Scale: H0 (1:87)
• Railway company: Deutsche Reichsbahn (DR)
• Class: BR 01.05 (reconstruction)
• Road number: 01 0529-6
• Era: IV (1970-1990)
• Power system: 2-rail DC
• Digital interface: NEM 652 (8-pin)
• Motor: 5-pole with flywheel
• Traction tyres: 2
• Headlights: Triple, directionally dependent
• Coupling: NEM 362 shaft with close coupling mechanism
• Minimum radius: R3 (419.6 mm)
• Sound: No (analog version, sound upgrade possible)
• Chassis material: Die-cast metal
• Body material: High-quality plastic
• Boiler material: Metal
• Number of driven axles: 3
• Length over buffers: 289 mm

Why choose it

This model combines authentic detailing with robust construction. The metal boiler and die-cast chassis give it a realistic weight and feel, while the separately applied parts and open-work bar frame add to the visual appeal. The smooth-running motor and close coupling mechanism make it suitable for both display and operation on a layout.

Ideal use cases

• Adding a DR Era IV express locomotive to your H0 collection
• Upgrading an analog layout with a high-quality steam locomotive
• Using as a basis for digital sound conversion

Good to know

The locomotive is delivered in analog DC version without a decoder or sound. It can be easily converted to digital operation using a decoder with an 8-pin plug. The minimum recommended radius is R3 (419.6 mm) to ensure reliable running.
