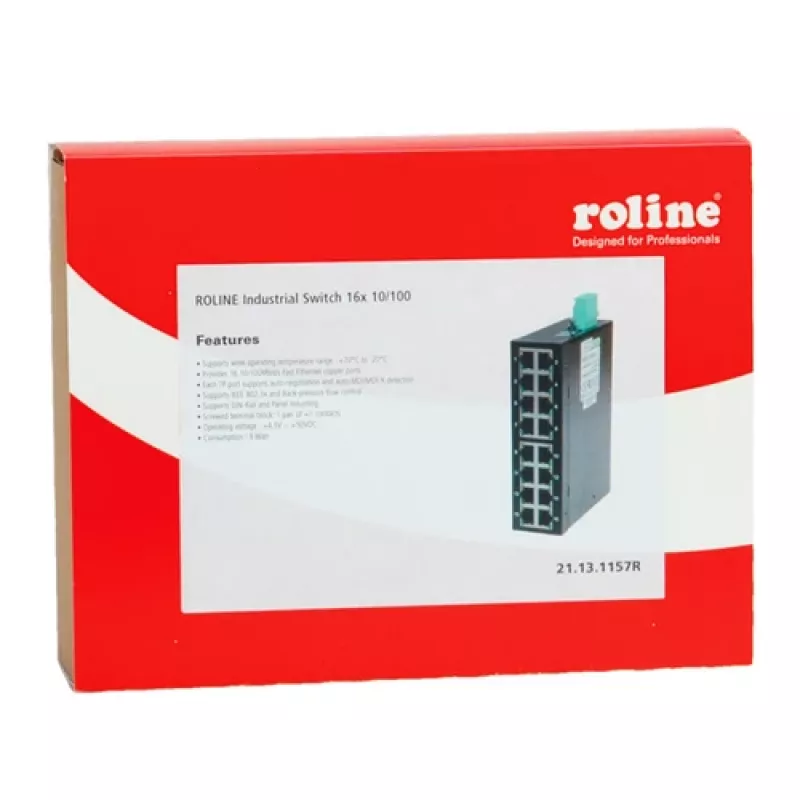

ROLINE Industrial Fast Ethernet-switch, 16x RJ-45, unmanaged

The ROLINE Industrial Fast Ethernet Switch is an unmanaged switch with 16x RJ-45 ports, designed for industrial environments. It supports full duplex and auto-negotiation, and features a MAC address table with 8000 entries.

Key features

• 16x 10/100Base-T ports
• Unmanaged
• Full duplex
• Auto-negotiation
• MAC address table: 8000 entries
• DIN rail mounting or mounting plate
• Operating voltage: +4.5 to +50 VDC
• Operating temperature range: -20 °C to +70 °C
• DC input via terminal block or DC hollow plug (6.3 mm / 2.0 mm)

Specifications

• Brand: Roline
• MPN: 21.13.1157
• Ethernet interface type: Fast Ethernet
• Number of Ethernet LAN ports (RJ-45): 16
• Dimensions (WxDxH): 140 x 40 x 106 mm
