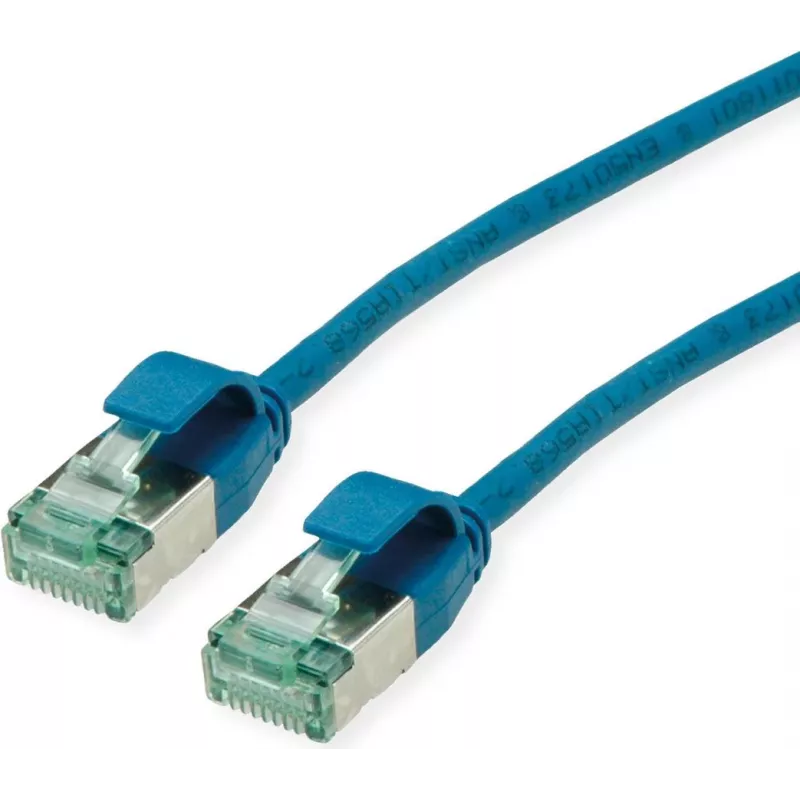

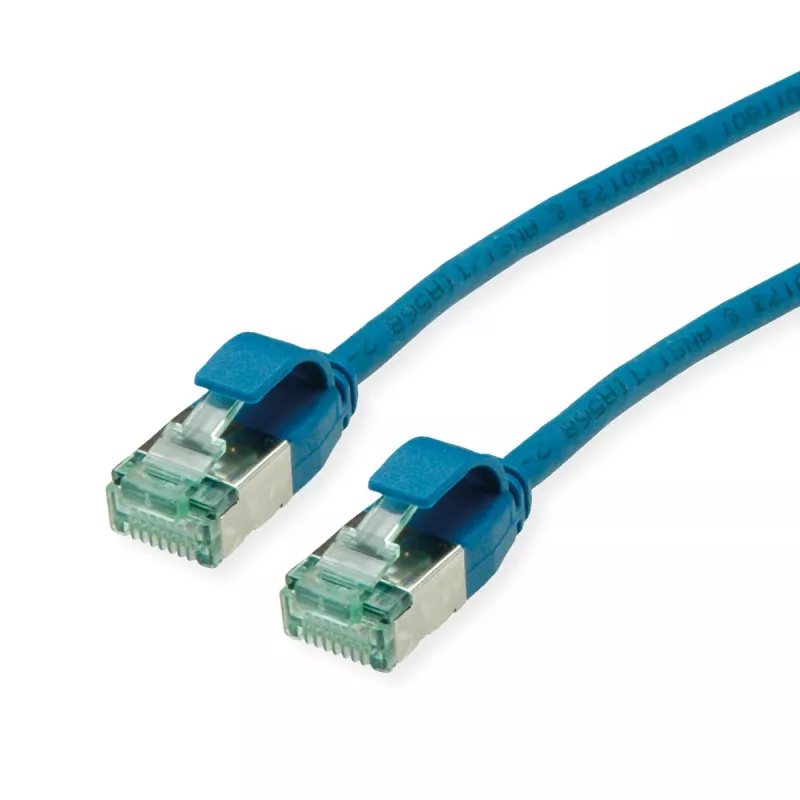

ROLINE RM U/FTP Cat.6A slim patchkabel, LSZH, blauw, 1,5 m 21.45.3344

Connect high-density 10-Gigabit Ethernet links in data centres and server rooms with this slim Cat.6A patch cable. The reduced outer diameter improves airflow and cable management in crowded racks, while the blue jacket aids port identification.

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: U/FTP (foiled twisted pairs)
• Length: 1.5 m
• Colour: Blue
• Connectors: RJ45 male to RJ45 male
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Stranded copper, AWG 26/7
• Jacket: LSZH (halogen-free)
• Wiring: TIA/EIA-568B
• Impedance: 100 Ohm

Why choose it

The slimline design saves space in high-density patch panels, and the LSZH jacket reduces toxic smoke in case of fire. Stranded conductors provide flexibility for frequent moves and changes.

Ideal use cases

• Data centre and server room patching
• 10GBASE-T network connections
• High-density rack installations

Good to know

U/FTP shielding means each pair is individually foiled, providing excellent crosstalk performance without an overall shield. The snagless boot protects the locking tab during installation.
