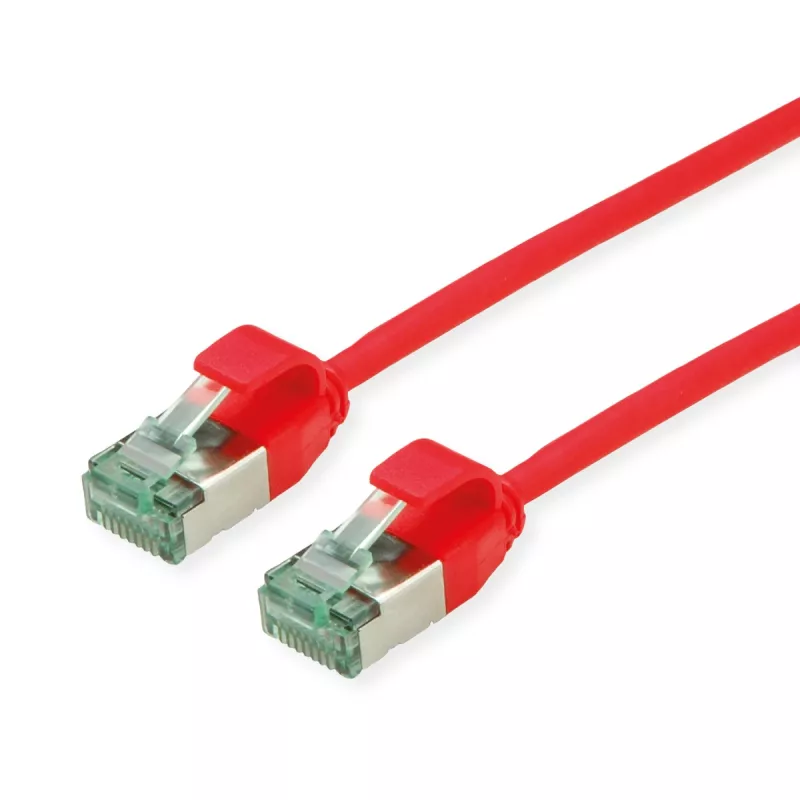

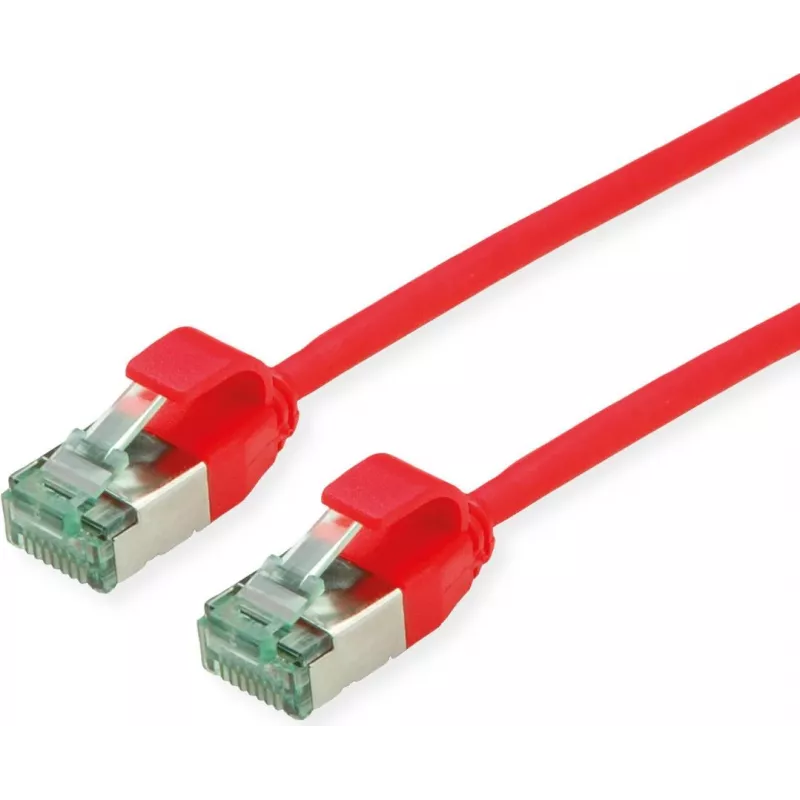

ROLINE RM U/FTP patchkabel Cat.6A/Class EA SLIM rood 0,3m 21.45.3311

In high-density data centers and server rooms, space is at a premium. This slim red patch cable connects servers, switches, and patch panels over short distances, delivering 10 Gigabit Ethernet performance without the bulk of standard cables. Its 0.3 m length is ideal for tidy rack cabling and inter-device links.

Key specifications

• Cable standard: Cat.6A / Class EA
• Shielding: U/FTP (foil screened pairs)
• Length: 0.3 m
• Colour: Red
• Connectors: RJ45 male to RJ45 male
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 28
• Jacket material: PVC
• Outer diameter: 3.6 mm
• Wiring standard: TIA/EIA 568B
• Boot type: Snagless
• Impedance: 100 Ohm

Why choose it

The slim design reduces cable clutter and improves airflow in dense racks. U/FTP shielding protects against alien crosstalk, ensuring reliable 10GBASE-T transmission. The snagless boot prevents connector damage during installation and moves.

Ideal use cases

• Connecting servers to top-of-rack switches
• Patch panel to switch in structured cabling
• Short links in high-density network environments

Good to know

Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2. Operating temperature range: -20°C to 60°C.
