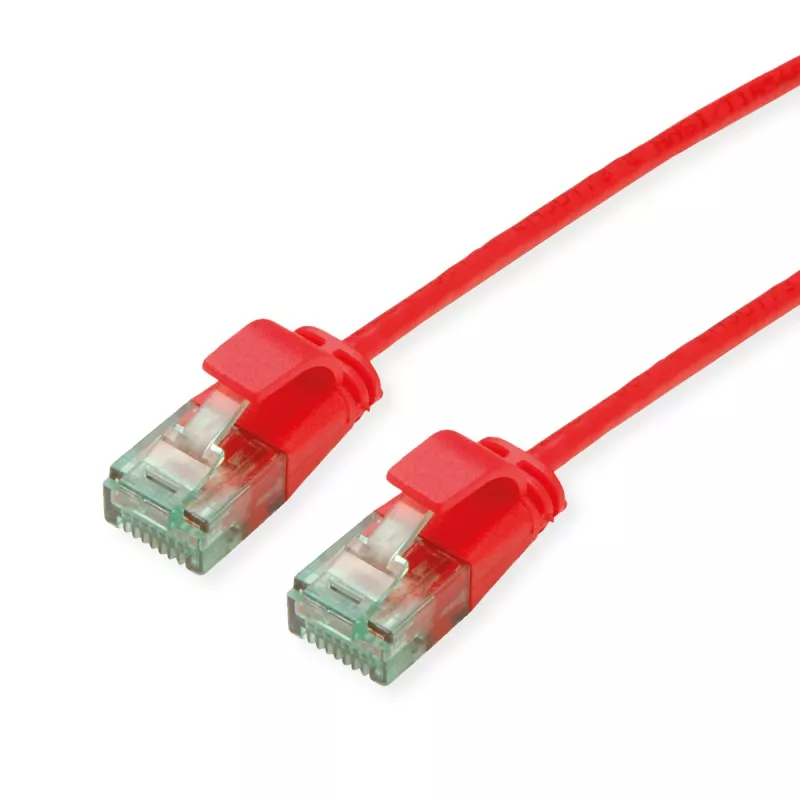

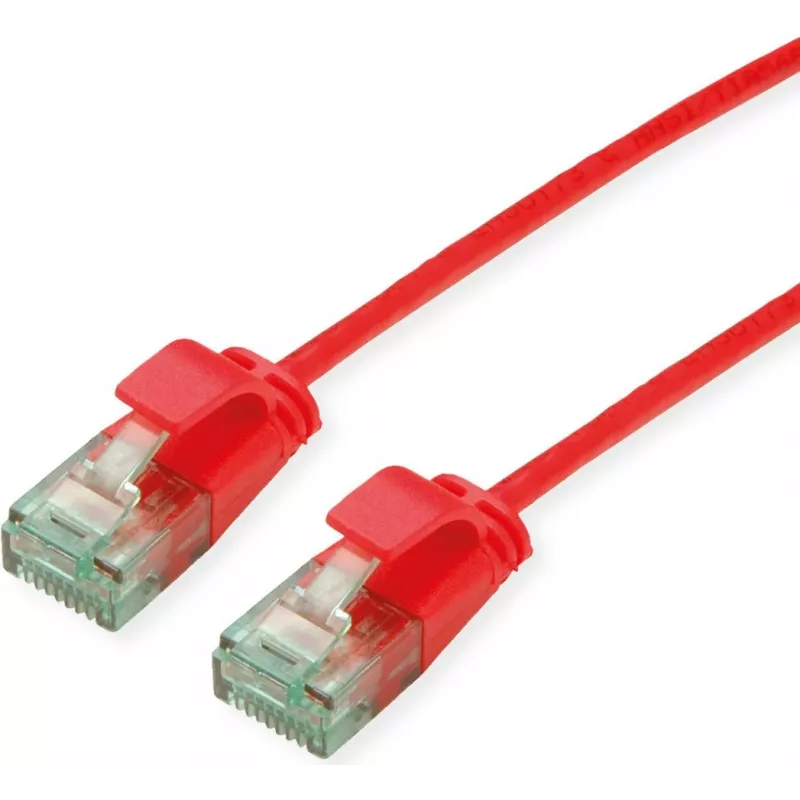

ROLINE RM UTP-patchkabel Cat.6A/Class EA SLIM rood 0,15m 21.45.3410

High-density patch panels and crowded switches demand cables that don't block airflow or each other. This ROLINE RM SLIM patch cable solves that with a reduced-diameter jacket, while still delivering Cat.6A performance for 10 Gigabit Ethernet links.

Who is it for

Network administrators and installers who need short, flexible, unshielded patch cords for data centers, server rooms, and office patch fields where space is tight and 10GBASE-T is required.

Main features

• Cat.6A / Class EA performance up to 500 MHz
• Supports 10 Gigabit Ethernet (10GBASE-T)
• Unshielded Twisted Pair (U/UTP) construction
• Slimline cable diameter of approximately 3.6 mm for better airflow and density
• Length: 0.15 m – ideal for short patching between adjacent ports
• Colour: Red
• Gold-plated RJ45 connectors on both ends
• LSZH (Low Smoke Zero Halogen) jacket for improved fire safety

Specifications

• Cable category: Cat.6A
• Performance class: Class EA
• Shielding: U/UTP (unshielded)
• Length: 0.15 m
• Colour: Red
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Copper
• Wire gauge: 28 AWG
• Jacket material: LSZH
• Cable diameter: 3.6 mm
• Wiring standard: TIA/EIA 568B
• Connector plating: Gold

Tips

For best performance, avoid bending the cable tighter than the manufacturer's minimum bend radius. The slim design is intended for short, high-density runs; for longer distances or noisy environments, consider shielded alternatives.
