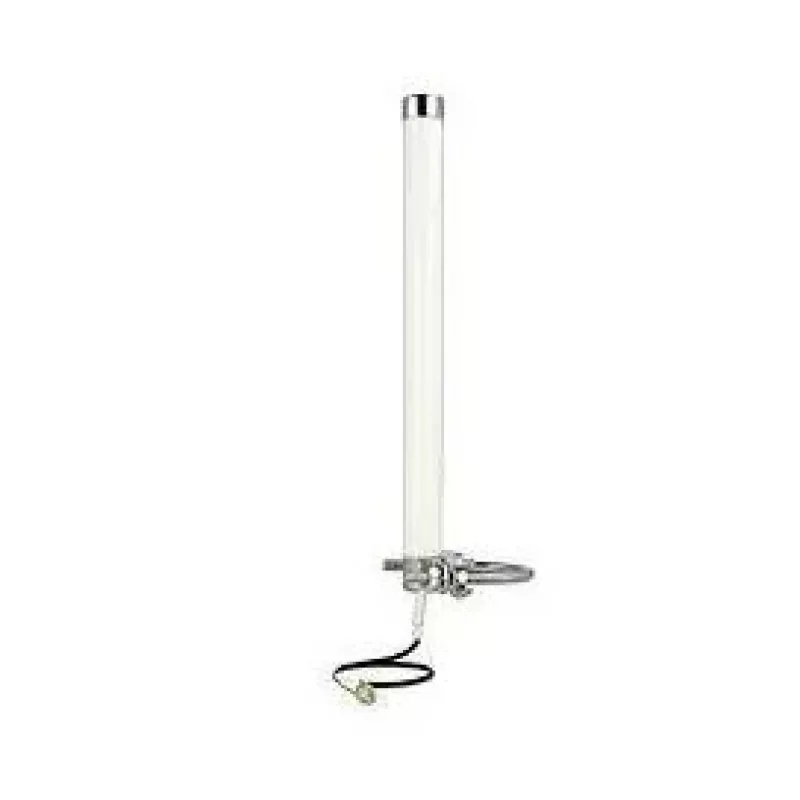

Rondstraalantenne DeLOCK 12433

The DeLOCK 12433 omni-directional antenna provides broad wireless compatibility across LTE, GSM and UMTS bands and supports common short-range technologies including Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa (868/915 MHz). It has a nominal gain of 6.5 dBi, 50 Ω impedance and vertical polarization, and its compact housing (210 × 295 × 63 mm) and 360° horizontal coverage make it suitable for indoor and outdoor installation.

Advantages

This antenna offers uniform 360° horizontal coverage with a 6.5 dBi gain for improved signal reception and transmission in multi-directional environments. The 50 Ω impedance and vertical polarization ensure compatibility with standard RF equipment, while the lightweight white housing (approx. 0.12 kg) allows easy mounting and discreet placement.

Suitable for

• Expanding coverage for LTE, GSM and UMTS networks
• Enhancing Bluetooth and 2.4 GHz WLAN connectivity
• Integrating with ZigBee, DECT or Z-Wave devices
• LoRa-based low-power wide-area applications at 868/915 MHz

Key specifications

• Model: DeLOCK 12433
• Antenna type: Omni-directional
• Gain (max): 6.5 dBi
• Impedance: 50 Ω
• Polarization: Vertical

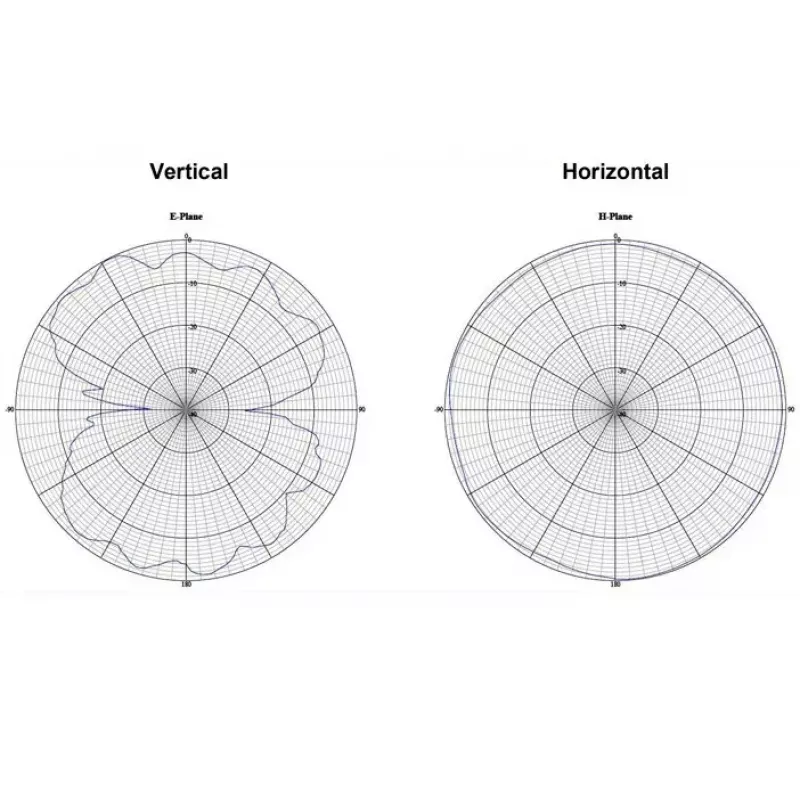

• Horizontal beam width: 360°
• Dimensions: 210 × 295 × 63 mm
• Weight: 0.12 kg
• Colour: White
• Supported bands/technologies: LTE, GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868/915 MHz

How to use

Mount the DeLOCK 12433 antenna on a stable surface or pole with an appropriate bracket and connect it to your radio device using a compatible 50 Ω cable and connector. Position the antenna vertically to match its polarization and place it clear of large metallic obstructions to maximize coverage. For outdoor use, ensure all cable connections and mounts are weatherproofed according to your installation environment.

Recommendations

For best performance, install the antenna at a height and location with minimal physical obstructions and away from other antennas to reduce interference. Match the antenna to equipment with a 50 Ω input and verify regulatory compliance for the intended frequency bands in your region.
