Rookgenerator Ancel S160 voor lekdetectie – draagbaar rookapparaat voor auto- en HVAC-systemen

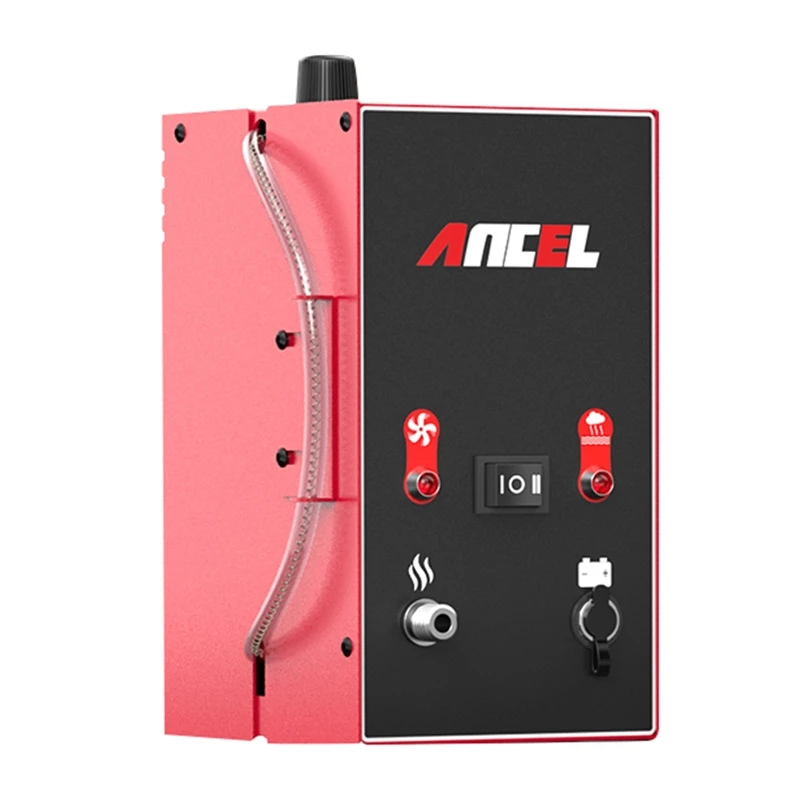

The Ancel S160 leak detection smoke generator is a compact diagnostic tool for locating air and fluid leaks in vehicle systems. It produces visible smoke to identify faults such as crankcase air leaks, intake manifold gasket leaks, intercooler leaks, improperly closed valves and fuel system leaks. The unit works in Smoke and Air modes, with a flow rate below 10 l/min and an operating pressure range of 0.8–14.5 PSI. A built-in air pump eliminates the need for an external compressor and the device is suitable for testing intake, cooling, EVAP, crankcase, fuel tank, exhaust and other piping systems.

Advantages

The integrated air pump allows the S160 to run directly from a 12 V battery without an external compressed air source, increasing mobility and reducing setup time. Smoke generation begins in under 10 seconds after startup; a single 20 ml refill of test oil is required to begin diagnostics. Overheat and freeze protection safeguard both the operator and the unit, while a durable metal housing and ergonomic handle provide robustness for workshop and field use.

Key specifications

How to use

Connect the power cord clamps to a 12 V battery, pour approximately 20 ml of the supplied test oil into the reservoir and select Smoke or Air mode as required. Apply the smoke delivery hose or appropriate adapter to the system under test (intake, EVAP, crankcase, etc.) and observe for smoke escaping at leak points while monitoring the built-in pressure gauge and flow meter on the front panel. Adjust pressure within the 0.8–14.5 PSI range to suit the component being tested. Turn the unit off and allow it to cool before refilling or storing.

Recommendations

Use the supplied adapters and sealing elements that match the vehicle connection to ensure accurate results. Operate the unit in a well-ventilated area and follow the user manual instructions for safe handling, maintenance and storage.
