ROPAM NeoLTE-IP-PS-SET Alarmcentrale-set met LTE- en IP-communicatie

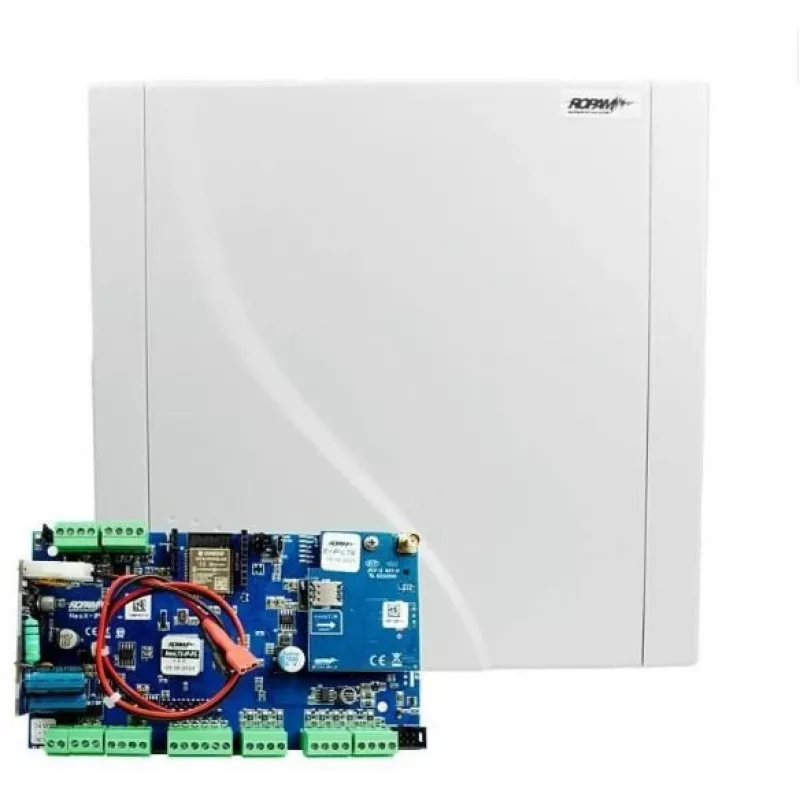

The ROPAM NeoLTE-IP-PS-SET is a comprehensive alarm control panel set designed for modern security systems. It integrates a powerful control panel with an LTE modem and Ethernet connectivity, providing reliable remote monitoring and control. This set includes the NeoLTE-IP panel, O-R3 plastic enclosure, 13.8V/2A power supply, and LTE antenna, making it a complete solution for residential and commercial security applications.

Advantages

This alarm control panel set offers advanced features such as 8 programmable zones expandable up to 32, 4 programmable outputs expandable up to 32, and support for up to 32 users and 4 partitions. It includes a built-in 13.8V/2A switching power supply and an efficient battery charger with diagnostics for 7Ah/17Ah batteries. The panel supports multiple control methods including keypads, mobile app (RopamDroid/RopamBridge), web browser, SMS, and DTMF. It also features home automation capabilities for controlling lights, gates, and heating. With EN 50131 Grade 2 security grading, it ensures high-level protection.

Suitable for

• Residential security systems
• Small to medium commercial premises
• Remote monitoring applications
• Home automation integration

Key specifications

• System Type: Alarm Control Panel Set
• Communication: Integrated LTE (4G) Modem, Ethernet (IP)
• Zones: 8 programmable (NO/NC/EOL/2EOL), expandable to 32
• Outputs: 4 programmable (2 OC, 2 relay), expandable to 32
• Power Supply: Built-in 13.8V DC / 2A switching
• Battery Charger: Supports 7Ah/17Ah batteries with diagnostics
• Users: Up to 32 users, 4 partitions
• Event Log: 1000 events
• Control: Keypads, Mobile App, Web, SMS, DTMF
• Home Automation: Programmable outputs for lights, gates, heating
• Security Grade: EN 50131 Grade 2
• Operating Temperature: -10°C to +55°C
• Enclosure: Plastic O-R3 type included
• Programming: Local USB, Remote via RopamBridge
• Firmware Updates: Remote via RopamBridge
• Timers: 8 independent timers
• Bus: RopamNET for expanders and keypads
• Monitoring Protocols: SIA-IP, Contact ID, SMS

Recommendations

For optimal performance, use with Ropam keypads and expanders. Ensure proper battery selection (7Ah or 17Ah) for backup power. The panel is suitable for Grade 2 installations per EN 50131.
