ROPAM temperatuursensor TSR-1-HT

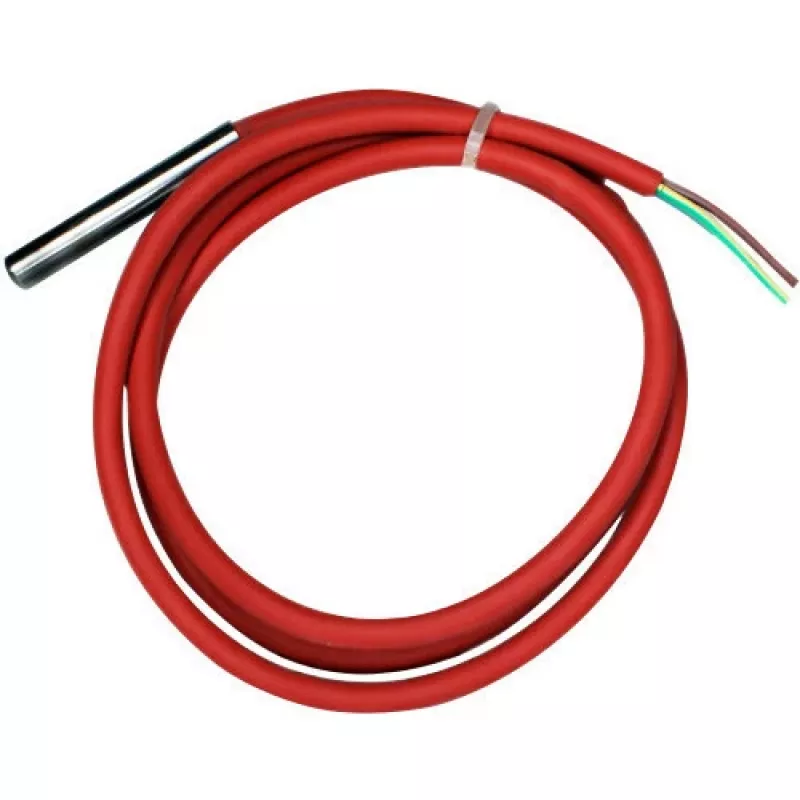

The ROPAM Temperature Sensor TSR-1-HT is a high-precision digital temperature sensor designed for integration with ROPAM alarm control panels. Featuring the DS18B20 digital thermometer, it provides accurate temperature readings over a wide range, making it ideal for environmental monitoring in security and automation systems.

Advantages

High accuracy of ±0.5°C in the typical operating range, robust stainless steel probe with IP68 protection for outdoor or harsh environments, and easy integration via 1-Wire bus interface. The sensor is powered directly from the control panel, eliminating the need for external power supplies.

Suitable for

• Temperature monitoring in security systems
• Integration with ROPAM alarm control panels (e.g., NeoGSM-IP, OptimaGSM)
• Industrial and commercial temperature sensing applications
• Outdoor temperature measurement due to IP68 probe

Key specifications

• Sensor Type: DS18B20 Digital Thermometer
• Measurement Range: -55°C to +125°C
• Accuracy: ±0.5°C (-10°C to +85°C)
• Interface: 1-Wire Bus
• Cable Length: 1 meter
• Probe Material: Stainless Steel
• Probe Dimensions: Ø6 x 50 mm
• Protection Rating: IP68 (probe)
• Supply Voltage: 3.0V - 5.5V DC
• Resolution: 9 to 12 bits (Configurable)
• Current Consumption: ~1mA (active)
• Output: Digital
• Wiring: 3-wire (VCC, GND, Data)

Recommendations

For optimal performance, ensure proper wiring to the control panel and configure the resolution as needed. The sensor is compatible with ROPAM alarm panels that support 1-Wire sensors. Avoid exposing the cable connector to moisture.
