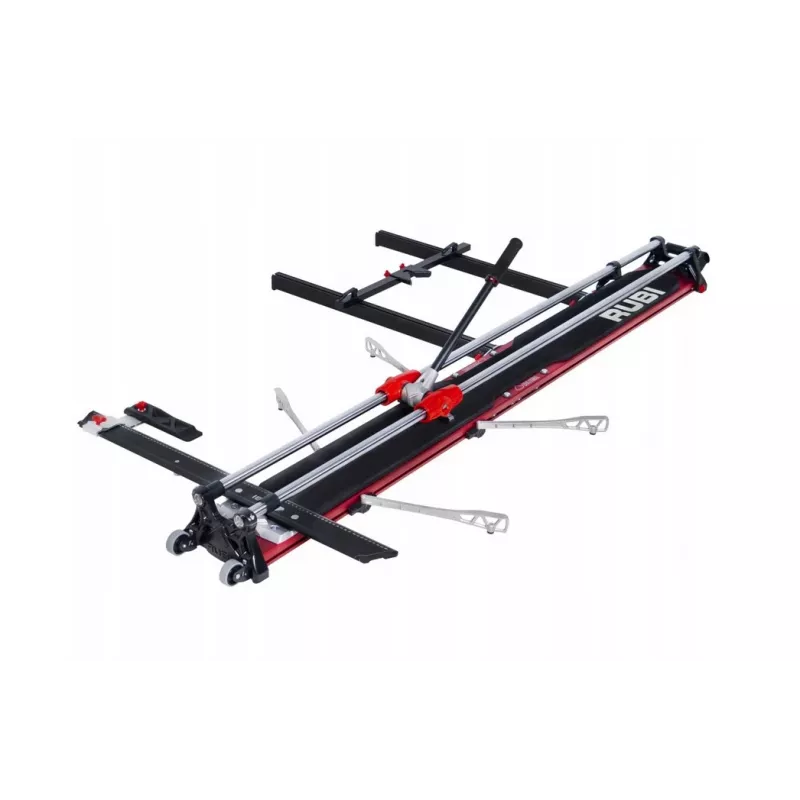

RUBI Tegelsnijder HIT-1600 PLUS RS

The RUBI HIT-1600 PLUS RS is a professional manual tile cutter designed for precise straight and diagonal cuts on ceramic, porcelain, and stoneware tiles up to 1600 mm in length. With a robust reinforced structure and a powerful breaking capacity of 800 kg, this tool ensures clean, accurate cuts every time. The double chrome-plated steel guide system provides exceptional stability and durability, while the ergonomic soft-grip handle enhances user comfort during extended use. Integrated wheels and a transport handle make it easy to move around the job site.

Advantages

High breaking power of 800 kg for clean breaks on tough tiles. Double guide system with anti-corrosion treatment ensures long-lasting precision. Swiveling square with central pivot allows quick and accurate angle adjustments. Side stop enables repetitive cuts for increased efficiency. Interchangeable cutting wheel system (Ø 6-22 mm) extends tool versatility.

Suitable for

• Professional tilers and contractors
• Cutting ceramic, porcelain, and stoneware tiles
• Straight cuts up to 1600 mm
• Diagonal cuts up to 1130 x 1130 mm
• On-site and workshop use

Key specifications

• Max cutting length (straight): 1600 mm
• Max cutting length (diagonal): 1130 x 1130 mm
• Cutting thickness: 3-18 mm
• Breaking power: 800 kg
• Scoring system: Push
• Breaking system: Mobile single-point breaker
• Guide system: Double guide, chrome-plated steel with anti-corrosion treatment
• Base material: High-strength aluminum
• Cutting wheel compatibility: Ø 6-22 mm (interchangeable)
• Included cutting wheel: Ø 8 mm scoring wheel
• Adjustable square: Swiveling square with central pivot
• Side stop: Yes
• Handle type: Ergonomic soft-grip handle
• Transport features: Integrated wheels and handle

Recommendations

For best results, use a sharp, appropriate cutting wheel for the tile material. Regularly clean and lubricate the guide rails to maintain smooth operation. Always wear safety glasses when cutting tiles.
