Ruckus-compatibele BlueOptics QSFP28 100G-LR4 10km optische transceivermodule

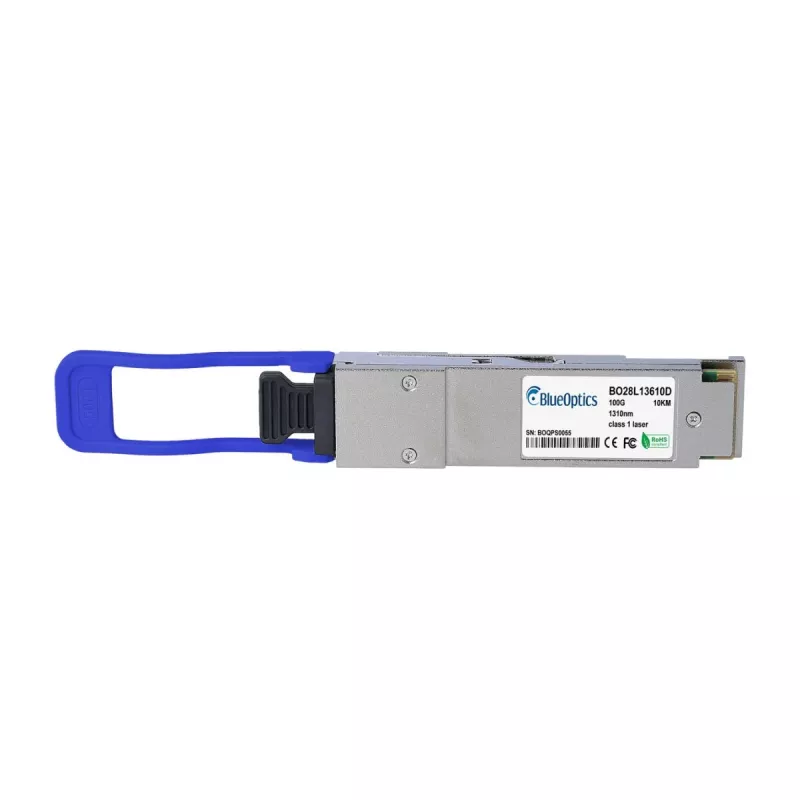

The BlueOptics BO28L13610D is a high-performance 100G QSFP28 optical transceiver module designed for 10 km reach over single-mode fiber. It is fully compatible with Ruckus 100G-QSFP28-LR4-10KM equipment, ensuring seamless integration into existing networks. This module supports 100GBASE-LR4 standard and utilizes LAN-WDM technology with four wavelengths for reliable data transmission.

Advantages

This transceiver offers cost-effective 100G connectivity for data center and enterprise networks. It features low power consumption under 4.5W, hot-pluggable design for easy installation, and digital diagnostic monitoring (DDM) for real-time performance tracking. The rugged design ensures stable operation in temperatures from 0°C to 70°C.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications infrastructure
• High-performance computing environments

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Interface: 100GBASE-LR4
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: Duplex LC
• Wavelengths: 1295.56 nm, 1300.00 nm, 1304.44 nm, 1308.88 nm (LAN-WDM)
• Transmitter: LAN-WDM DFB Lasers
• Receiver: PIN Photodetector Array
• Power Consumption: < 4.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3ba, SFF-8665, SFF-8636, MSA
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with single-mode fiber patch cables and ensure proper cleaning of optical connectors. This module is ideal for upgrading network infrastructure to 100G speeds while maintaining compatibility with existing Ruckus systems.
