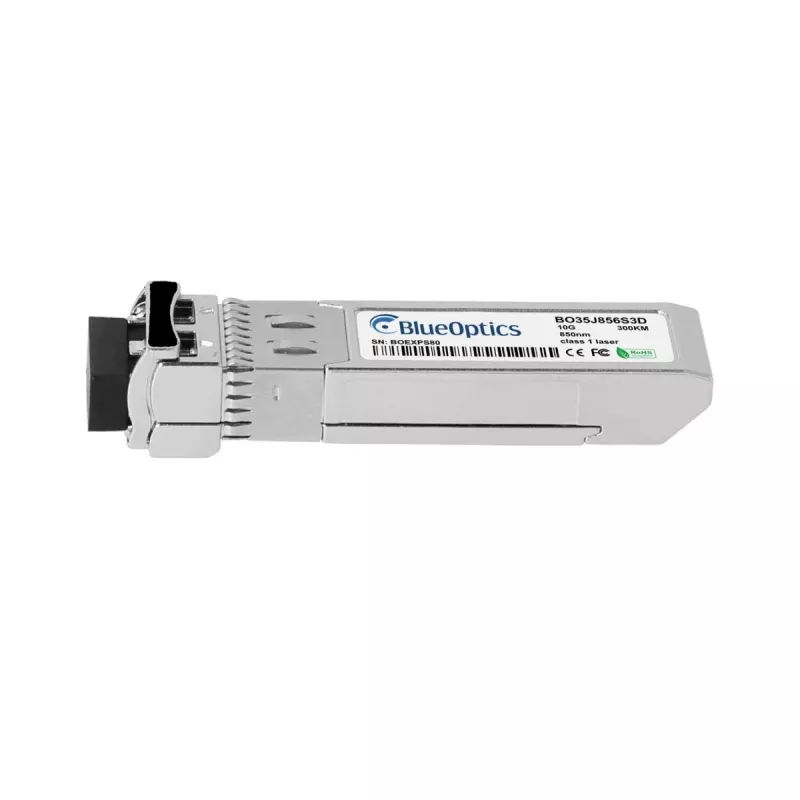

Ruckus-compatibele BlueOptics SFP+ 10GBASE-SR transceiver BO35J856S3D (10G-SFPP-USR-SA)

The BlueOptics BO35J856S3D is a high-performance SFP+ transceiver designed for 10 Gigabit Ethernet applications. It is fully compatible with Ruckus Networks equipment, serving as a direct replacement for the 10G-SFPP-USR-SA module. This hot-pluggable transceiver supports 10GBASE-SR over multimode fiber, delivering reliable connectivity for data centers and enterprise networks.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption of less than 1.0 W helps reduce energy costs. Hot-pluggable design allows for easy installation and maintenance without network downtime.

Suitable for

• 10 Gigabit Ethernet connections in data centers and enterprise networks
• Ruckus Networks switches and routers requiring SFP+ modules
• Short-range multimode fiber links up to 400 meters

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: 850 nm
• Fiber Type: Multimode (MMF)
• Connector: LC Duplex
• Max Distance: 300 m (OM3), 400 m (OM4)
• DDM/DOM Support: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber patch cables. Ensure your network equipment supports SFP+ modules and 10GBASE-SR standard.
