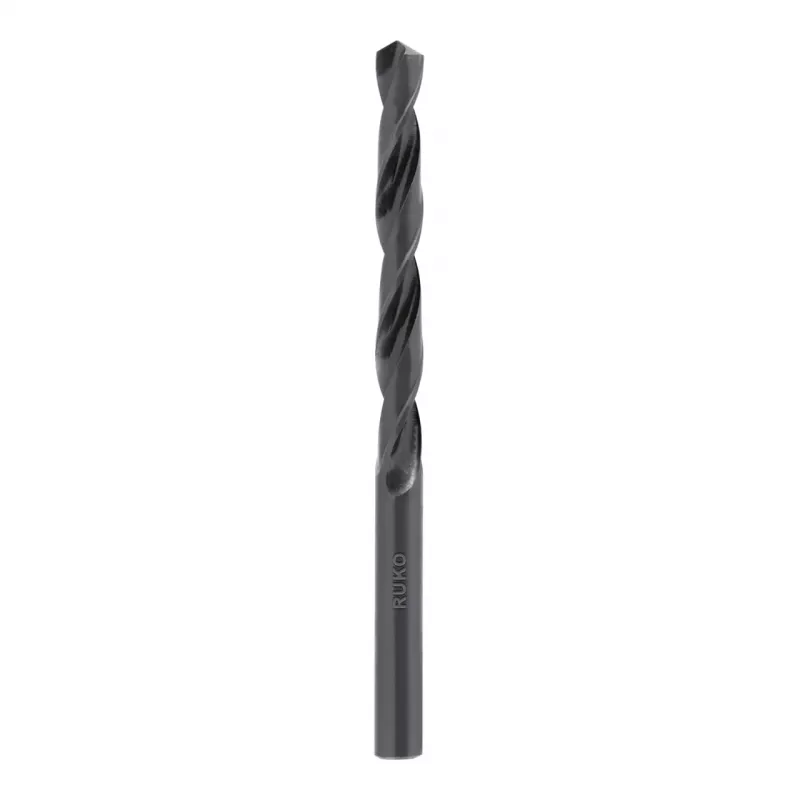

RUKO SPB-DIN338 14,5mm gewalste en gefreesde spiraalboor

Twist drill bit with 14.5 mm diameter, manufactured from rolled high-speed steel (HSS-R) to DIN 338. The roll-forged process and black oxide finish deliver a robust cutting edge for general-purpose drilling in steel, cast iron, non-ferrous metals, plastics, and wood.

Advantages

Roll-forged HSS-R construction provides high toughness and resistance to breakage. The 118° point angle and tapered core ensure accurate centring and efficient chip removal. Black oxide surface reduces friction and improves wear resistance.

Suitable for

• Steel up to approx. 900 N/mm² tensile strength
• Cast iron
• Non-ferrous metals
• Plastics
• Wood

Key specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: HSS-R (rolled high-speed steel)
• Diameter: 14.5 mm
• Shank type: Cylindrical
• Shank diameter: 14.5 mm
• Overall length: 169 mm
• Flute length: 114 mm
• Point angle: 118°
• Cutting direction: Right-hand cut
• Tolerance: h8
• Core type: Tapered
• Manufacturing process: Roll-forged
• Surface finish: Black oxide

Recommendations

Use with corded or cordless drills. Suitable for workshop and on-site applications requiring a durable general-purpose twist drill bit.
