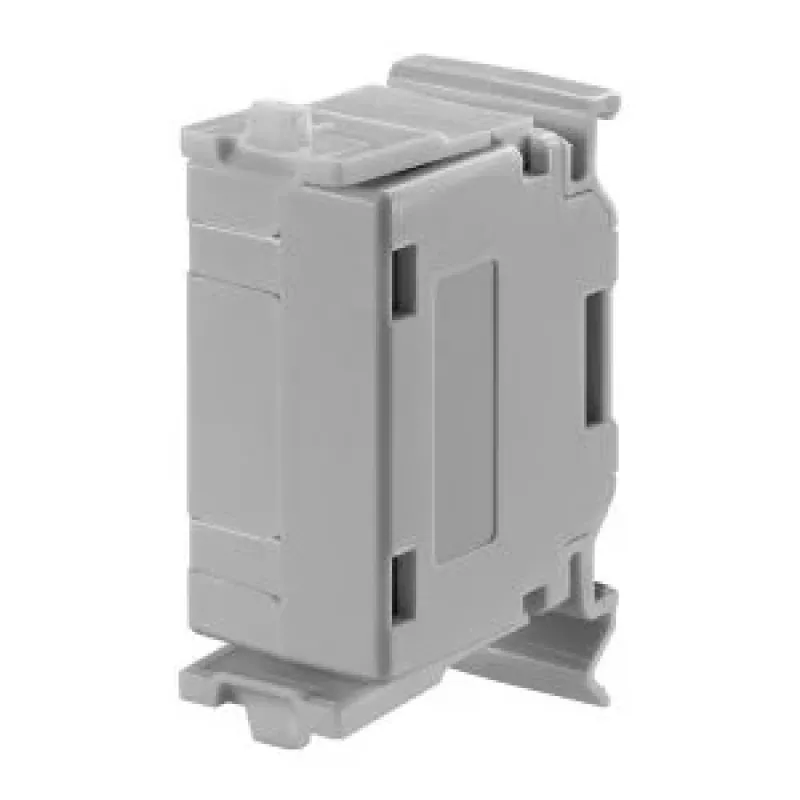

Rutenbeck ClassEA RJ45 koppelmodule voor DIN-rail, afgeschermd, 10G, 1 poort 13910261

This RJ45 coupling module from Rutenbeck is a shielded, DIN-rail mountable connector designed for high-performance network distribution. It provides a tool-free way to connect two shielded patch cables while maintaining Class EA performance up to 10 Gigabit Ethernet.

Highlights

• Shielded RJ45 female-to-female coupler for secure data links
• Mounts on standard DIN rail (REG), width 1 TE (18 mm)
• Supports 10GBASE-T and Power over Ethernet up to PoE++
• Compatible with Cat.6A, Cat.7, Cat.7A, Cat.8.1, and Cat.8.2 cables
• Die-cast zinc housing with gold-plated contacts

In daily use

Install the module in a network distribution board or industrial enclosure. Connect two shielded patch cables to extend a link or create a feed-through point. The tool-free design speeds up installation, and the shielded housing protects signal integrity in noisy environments.

Full specifications

• Product type: RJ45 coupling module
• Mounting: DIN rail (REG), 1 TE width
• Performance class: Class EA (ISO/IEC 11801, EN 50173-1)
• Transmission speed: up to 10 Gigabit Ethernet
• Shielding: shielded
• Connector type: RJ45 female to RJ45 female
• Number of ports: 1
• Housing material: die-cast zinc / plastic
• Contact plating: gold-plated
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Operating temperature: -20°C to +70°C
• Colour: silver/grey

Final note

A reliable, high-performance coupling module for professional network installations where space and signal quality matter.
