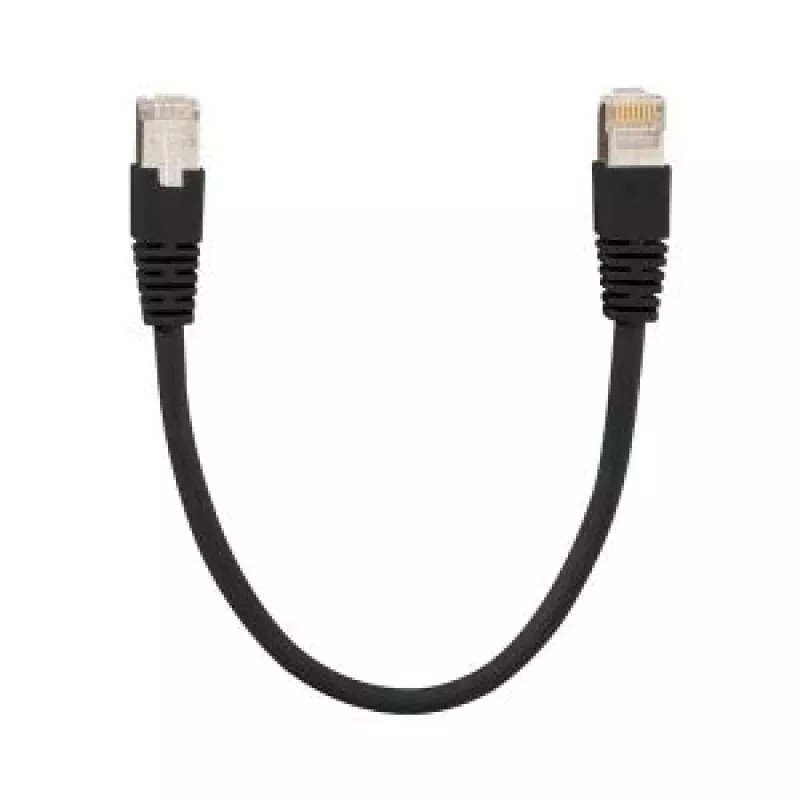

Rutenbeck patchkabel PK Cat.6A iso U 6 kV HF 2,0 m zwart 23510220

In data centers and industrial networks where high-speed 10 Gigabit Ethernet and electrical isolation are required, this Rutenbeck patch cable provides a reliable 2.0 m link between servers, switches, and patch panels. Its Cat.6A S/FTP construction ensures stable performance up to 500 MHz, while the 6 kV dielectric strength protects connected equipment from transient voltage spikes.

Key specifications

• Cable length: 2.0 m
• Cable standard: Cat.6A
• Cable shielding: S/FTP
• Connector type: RJ45
• Product colour: Black
• Jacket material: Halogen-Free (LSZH)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Dielectric strength: 6 kV
• Conductor material: Copper
• Conductor gauge: AWG 26/7
• Connector plating: Gold-plated contacts
• Wiring standard: TIA/EIA 568B
• PoE support: PoE++
• Operating temperature: -20°C to +60°C

Why choose it

The halogen-free LSZH jacket reduces toxic smoke and corrosive gas emissions in the event of fire, making it suitable for enclosed spaces. The 6 kV isolation rating adds an extra layer of protection for sensitive network equipment, and the stranded copper conductors provide flexibility for frequent patching.

Ideal use cases

• Data center patching between servers and switches
• Industrial network connections requiring electrical isolation
• Office LAN installations with 10GBASE-T equipment

Good to know

The cable meets ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards for Cat.6A performance. It supports Power over Ethernet up to PoE++ (IEEE 802.3bt) for powering devices such as IP cameras and wireless access points.
