S-video-verdeelversterker EUROLITE LVH-1 (1 ingang, 4 uitgangen)

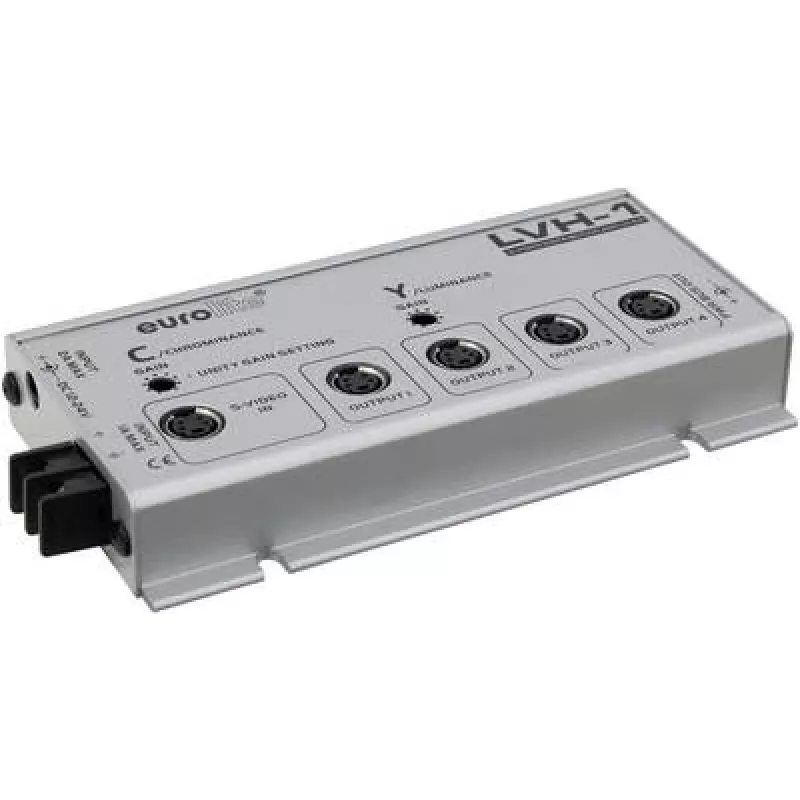

The EUROLITE LVH-1 S-Video Distribution Amplifier (model 81013201) provides one S-Video input and four S-Video outputs to split a single video source to multiple displays or recorders. It is intended for reliable S-Video signal distribution in AV setups, preserving signal integrity across outputs while simplifying cabling for small installations, presentations, and monitoring applications.

Advantages

The LVH-1 offers four buffered S-Video outputs from a single input, reducing signal degradation and impedance mismatch when connecting several devices. Its compact design and straightforward connections make it easy to integrate into existing AV systems. The unit helps maintain picture quality across all outputs and simplifies setup by avoiding multiple repeaters or switchers.

Suitable for

Key specifications

How to use

Connect the S-Video source to the LVH-1 input connector, then connect up to four S-Video cables from the LVH-1 outputs to the target displays or recorders. Power the unit if a separate power supply is required (check the unit's power input and included accessories). Verify each connected display for proper image and adjust source settings if necessary. Place the amplifier near the source or within convenient cable reach to minimize cable length and potential signal loss.

Recommendations

For best results use good-quality S-Video cables and keep cable runs as short as practical. When integrating with mixed-signal systems, ensure matching grounding and avoid routing video cables alongside high-power AC lines to reduce interference.
