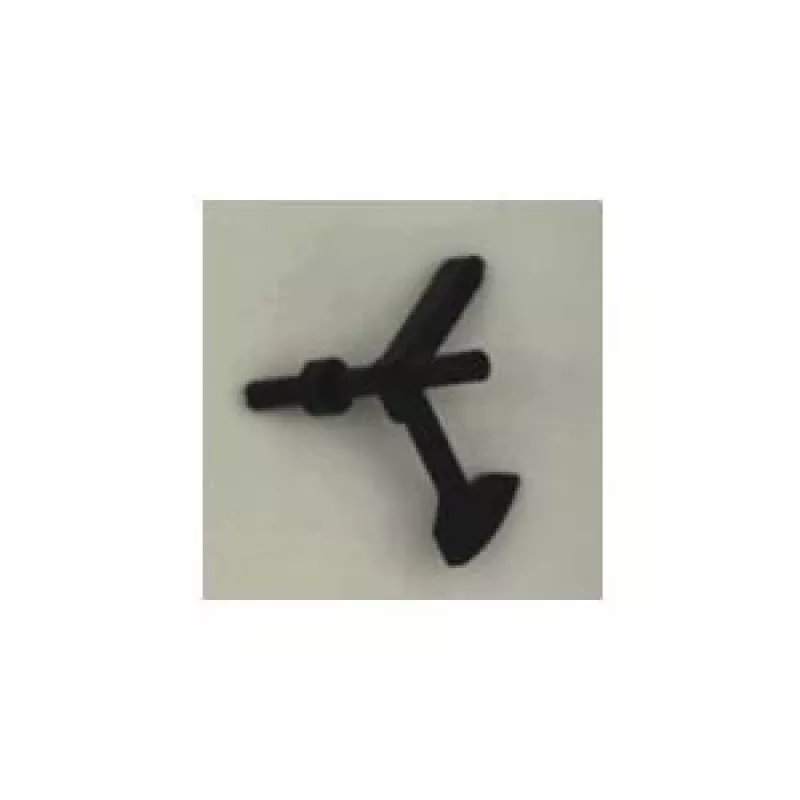

Samsung actuatorhendel JC66-01191A

When the paper path jams or the fuser fails to engage in a high-volume Samsung MultiXpress printer, the actuator lever is often the hidden culprit. This Samsung Actuator Lever JC66-01191A restores precise mechanical actuation in compatible MultiXpress and CLX/K/M series models, eliminating error codes and downtime caused by a worn or broken lever.

Who is it for

Service technicians and IT administrators maintaining Samsung MultiXpress SL-X7400, SL-X7500, SL-X7600, CLX-9201, CLX-9251, CLX-9301, K4250RX, K4300LX, K4350LX, M4300LX, M4350LX, M4370LX, X4220RX, X4250LX, X4300LX printers and copiers.

Main features

• Reinforced PBT+GF3 construction: 3% glass fiber adds rigidity and heat resistance for long service life.
• Precision-molded to Samsung factory tolerances for drop-in fit and reliable actuation.
• Designed for internal mechanical drive or sensor mechanisms; professional installation recommended.

Specifications

• Part type: Actuator Lever
• Material: PBT+GF3 (Polybutylene Terephthalate with 3% Glass Fiber)
• Compatibility: Samsung MultiXpress SL-X7400, SL-X7500, SL-X7600 Series, CLX-9201, CLX-9251, CLX-9301, K4250RX, K4300LX, K4350LX, M4300LX, M4350LX, M4370LX, X4220RX, X4250LX, X4300LX
• Function: Mechanical Actuation
• Application: Internal Printer/Copier Mechanism
• Colour: Black

Tips

Always power off and unplug the printer before installation. Refer to the service manual for your specific model to locate the actuator lever. Handle with care to avoid damaging the glass fiber reinforced plastic.
