SAS-kabel Intel CYPCBLSL112KIT

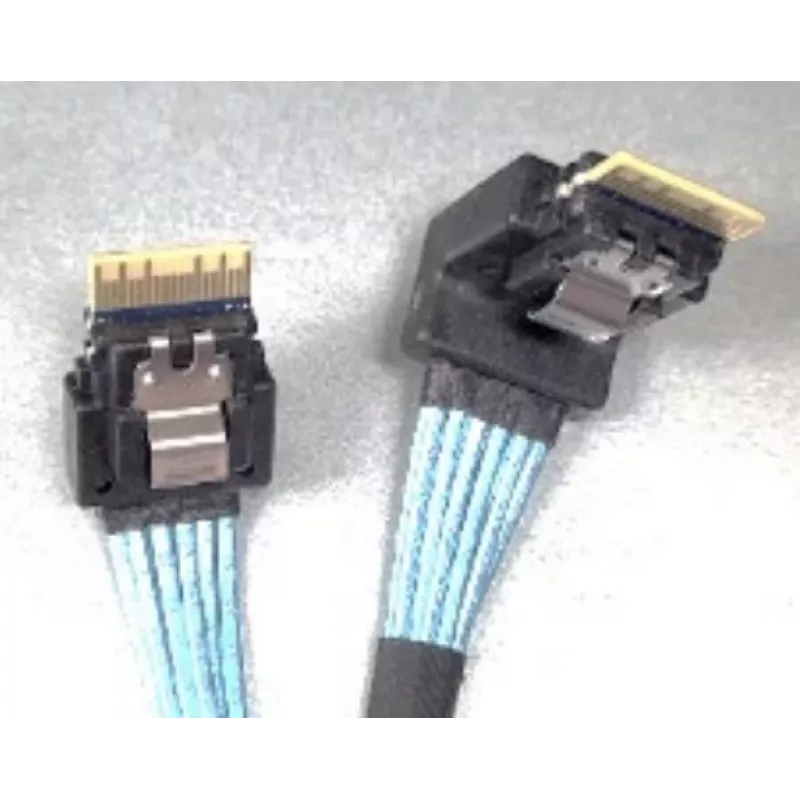

Cable kit Intel CYPCBLSL112KIT for a 1U 12 × 2.5” system (M50CYP1UR212) provides SlimSAS splitter connections to support PCIe NVMe drives in the front drive bay. The kit includes four splitter cables of different lengths that link Intel server board SlimSAS CPU connectors to the HSBP SlimSAS SSD connectors, enabling proper routing and connectivity for NVMe SSDs in the specified Intel server platform.

Advantages

The Intel CYPCBLSL112KIT contains purpose-built SlimSAS splitter cables that match the Intel Server M50CYP and Server Board M50CYP connector layout, ensuring compatibility and correct signal routing. Multiple cable lengths are included to accommodate internal cable routing in a 1U chassis and to minimize excess cable slack. The kit supports PCIe NVMe drives in the front drive bay by converting and distributing SlimSAS links to the appropriate HSBP SSD connectors.

Suitable for

• 1U 12 × 2.5” Intel M50CYP server systems requiring front-bay NVMe drive connectivity
• Connecting server board SlimSAS CPU connectors to HSBP SlimSAS SSD connectors
• Server maintenance or upgrades where matching Intel MPN CYPCBLSL112KIT connector layout is required

Key specifications

• Manufacturer: Intel
• MPN: CYPCBLSL112KIT
• EAN: 5032037213141
• Compatible platform: Intel Server M50CYP / Server Board M50CYP
• Purpose: SlimSAS splitter cables to support PCIe NVMe drives in front drive bay
• Included cables and lengths: 1 × 412/420 mm, 1 × 400/392 mm, 1 × 350/342 mm, 1 × 312/320 mm (splitter cables)

How to use

Identify the corresponding SlimSAS connectors on the server board (CPU0 and CPU1 A–D) and the HSBP SlimSAS SSD connectors indicated for SSD0–11. Route each splitter cable from the server board connector pair to the matching HSBP SSD connector as listed: 412/420 mm from CPU0 A/B to SSD0-1, 400/392 mm from CPU1 C/D to SSD10-11, 350/342 mm from CPU0 C/D to SSD2-3, and 312/320 mm from CPU1 A/B to SSD8-9. Ensure connectors are fully seated and secure any excess cable to avoid airflow obstruction. Power down the system and follow standard electrostatic discharge (ESD) precautions when installing or removing cables.

Recommendations

Use the Intel CYPCBLSL112KIT only in the specified Intel M50CYP 1U 12 × 2.5” configuration and follow server documentation for connector mapping. Verify firmware and BIOS settings for NVMe support and validate drive detection after installation.
