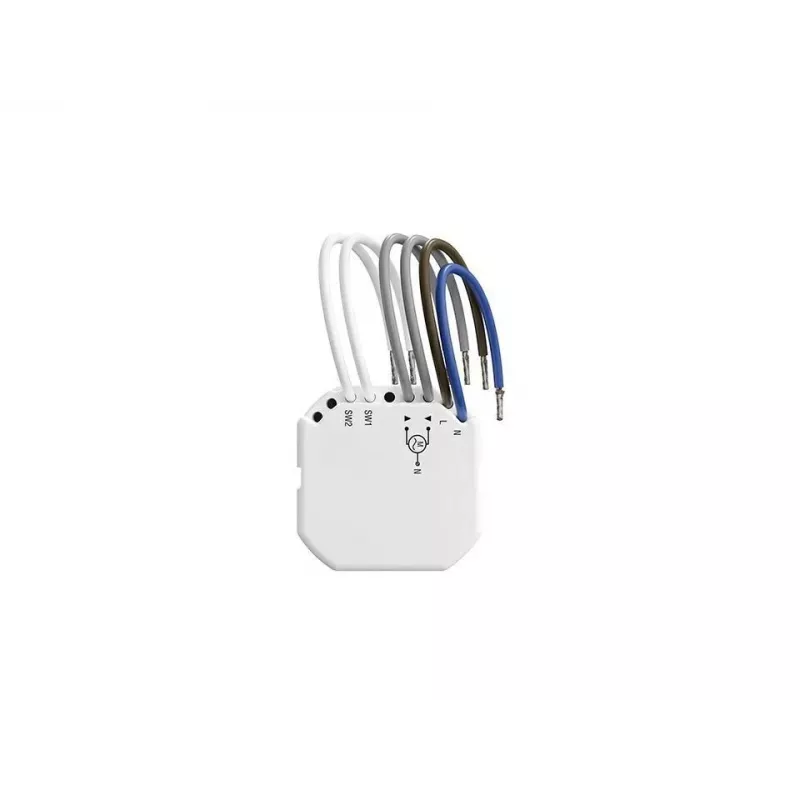

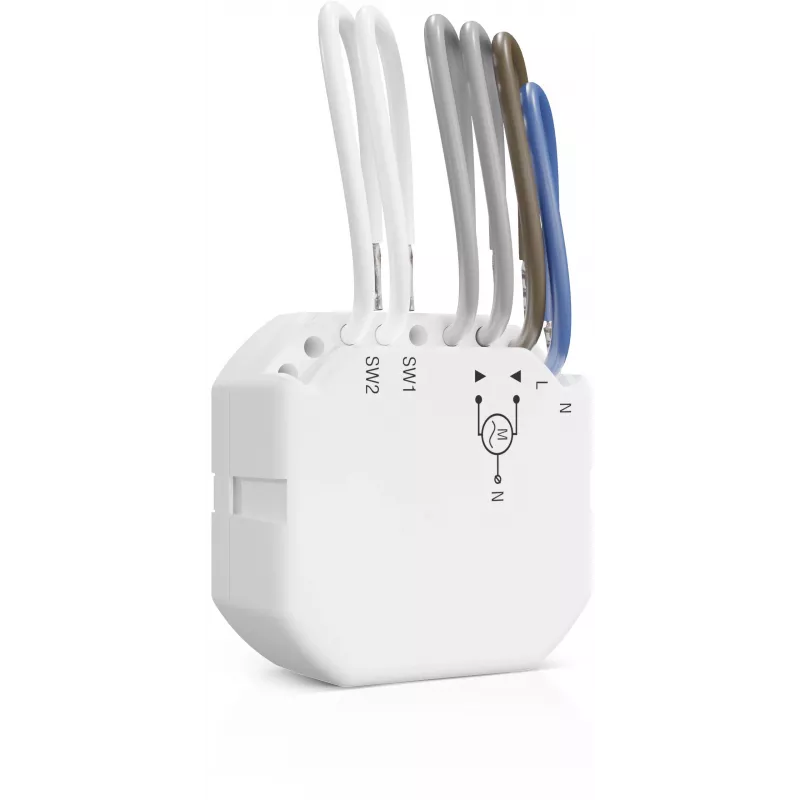

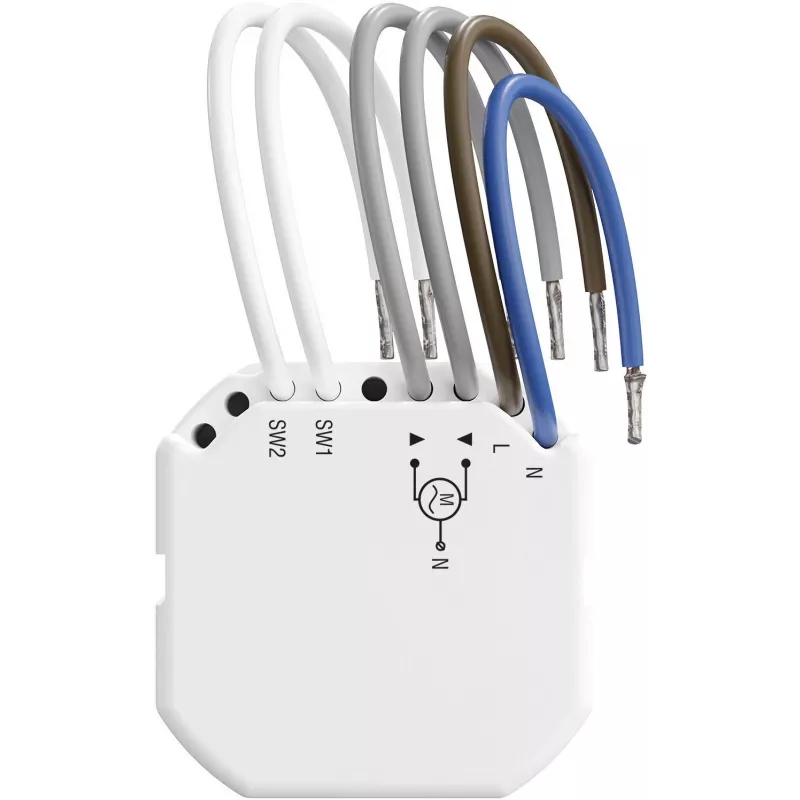

SATEL BE WAVE Smart Blinds ARSC-200 ABAX2 draadloze rolluik-/jaloeziebesturing

Wireless control of roller shutters and blinds with the SATEL ARSC-200, a flush-mounted controller operating on the ABAX2 system with a range of up to 2000 m in open areas.

Overview

The ARSC-200 Smart Blinds controller enables remote operation of AC roller shutter and blind motors via the ABAX2 wireless protocol at 868 MHz. It features two relay outputs for up/down control, supporting resistive loads up to 3 A and inductive loads up to 1.5 A at 230 V AC. Local push-buttons allow manual control, while AES encryption ensures secure communication.

What stands out

• Flush-mounted design fits a standard Ø60 mm box
• Two relay outputs for bidirectional motor control
• Supports AC motors up to 3 A resistive load
• Local push-button inputs for manual operation
• Operating temperature range from -10°C to +55°C

Technical details

• Wireless system: ABAX2, 868 MHz
• Power supply: 230 V AC, 50-60 Hz
• Max resistive load: 3 A / 230 V AC
• Max inductive load: 1.5 A / 230 V AC
• Wireless range: up to 2000 m (with ACU-220/ACU-280)
• Environmental class: II (EN 50130-5)
• IP rating: IP20
• Current consumption: max 20 mA
• Protection features: overload, thermal

Our verdict

The ARSC-200 integrates seamlessly into ABAX2 smart home systems, offering reliable and secure control for roller shutters and blinds with straightforward installation.
