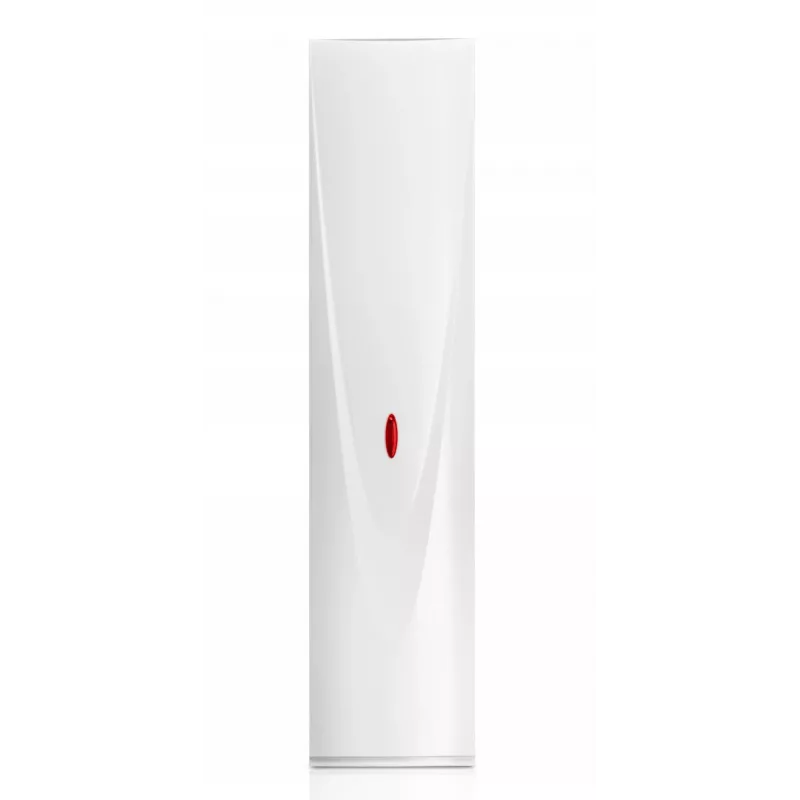

SATEL Draadloze Universele Sensor MXD-300

The SATEL MXD-300 is a versatile wireless universal sensor designed for integration with ABAX 2 and ABAX systems. It features two programmable inputs that can be configured as NO/NC or analog, making it suitable for a wide range of security and monitoring applications. The sensor operates at 433 MHz and is powered by a CR123A 3V lithium battery with a typical lifespan of up to 2 years. With a wireless range of up to 2000 m in open area (ABAX 2) and 500 m (ABAX), it ensures reliable communication. The device includes tamper protection, alarm memory, signal strength indication, and low battery indication. Remote configuration is supported via DLOADX software, and AES encryption is used for secure data transmission (ABAX 2). The sensor is rated for environmental class II (EN 50130-5) and can operate in temperatures from -10°C to +55°C with up to 93% non-condensing humidity.

Advantages

Flexible input configuration allows adaptation to various sensors and detectors. Long wireless range and robust encryption ensure secure and reliable operation. Remote configuration simplifies setup and maintenance. Tamper protection enhances security against unauthorized access.

Suitable for

• Security and alarm systems
• Industrial monitoring
• Smart building automation
• Remote area surveillance

Key specifications

• Wireless Protocol: ABAX 2 / ABAX
• Operating Frequency: 433 MHz
• Number of Inputs: 2 (programmable NO/NC, analog)
• Power Source: CR123A 3V Lithium Battery
• Battery Life: Up to 2 years
• Wireless Range (ABAX 2): Up to 2000 m (open area)
• Wireless Range (ABAX): Up to 500 m (open area)
• Operating Temperature: -10°C to +55°C
• Tamper Protection: Enclosure opening and detachment
• Encryption: AES (ABAX 2)
• Environmental Class: II (EN 50130-5)

Recommendations

For optimal performance, use with SATEL ABAX 2 controllers. Ensure the battery is replaced when low battery indication is active. Test wireless signal strength during installation to avoid interference.
