Satel INT-SF-W smart-home centrale bediening accessoire bedraad wit

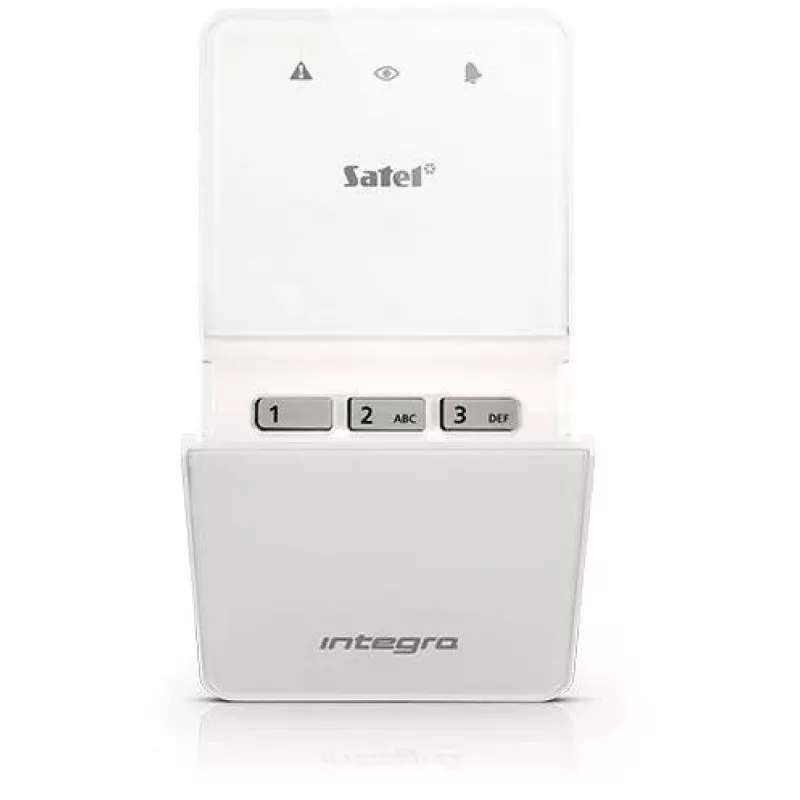

The Satel INT-SF-W smart home central control unit accessory is a wired partition keypad designed for use with INTEGRA and INTEGRA Plus alarm control panels. Operating at 12 V and fitted with LED status indicators, this keypad measures 80 mm in width, 143 mm in depth and 25 mm in height, enabling compact integration into existing security and smart home installations. The INT-SF-W is intended to maintain a consistent design line when paired with other SATEL keypads such as INT-KLFR, INT-TSI, INT-TSH2, INT-TSG2 and INT-KSG.

Advantages

The wired design ensures reliable communication with the alarm control panel while LED indicators provide immediate visual status feedback. Its compact dimensions facilitate installation in limited spaces and alignment with other devices in the INTEGRA series. Compatibility with multiple SATEL keypad models simplifies system design and helps preserve a uniform control-panel appearance across the smart home installation.

Suitable for

• Partition control in INTEGRA and INTEGRA Plus alarm systems
• Replacement or addition of wired keypads in residential or small commercial security systems
• Installations requiring a compact, panel-matched keypad with LED status indicators

Key specifications

• Operating voltage: 12 V
• Status indicators: LED
• Mounting type: wired keypad (designed for integration with control panels)
• Width: 80 mm
• Depth: 143 mm
• Height: 25 mm
• Compatible keypad models: designed to match appearance and operation with INT-KLFR, INT-TSI, INT-TSH2, INT-TSG2, INT-KSG

How to use

Mount the INT-SF-W keypad in a position that provides convenient access for users and wiring to the alarm control panel. Connect the keypad to the INTEGRA or INTEGRA Plus control panel following the panel manufacturer’s wiring diagrams and safety instructions. After powering the system at 12 V, verify LED indicators reflect proper system status and test partition control functions with the associated control panel. For consistent appearance, install the INT-SF-W alongside other SATEL keypads from the recommended series.

Recommendations

Install and commission the device according to SATEL installation guidelines and local electrical regulations. Use the INT-SF-W in systems based on INTEGRA or INTEGRA Plus control panels and pair it visually and functionally with the listed SATEL keypads to maintain a uniform control interface.
