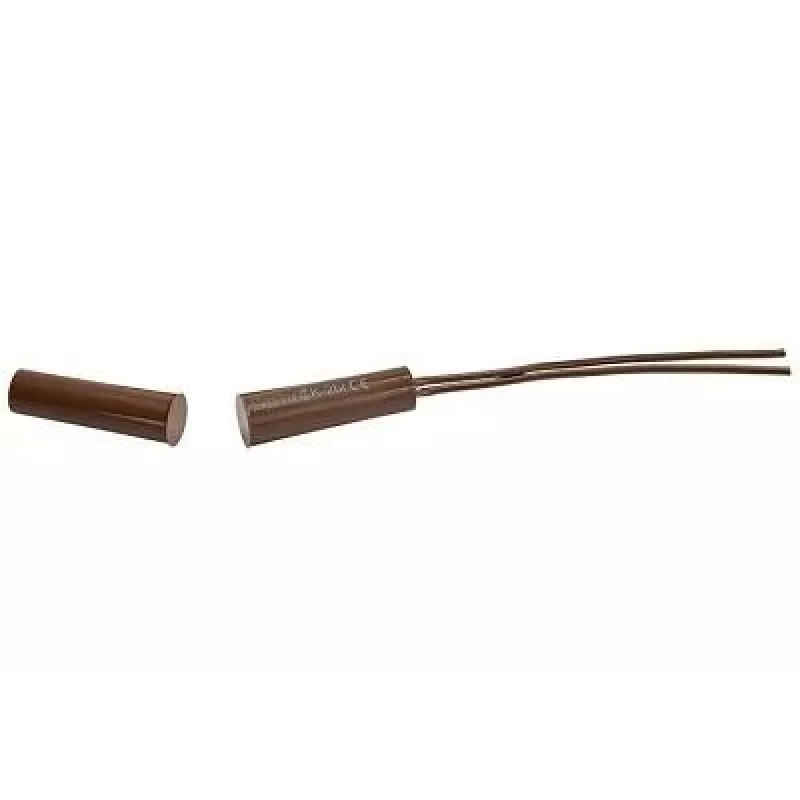

SATEL K-2 BR opbouw magneetcontact (reedschakelaar) - bruin

The SATEL K-2 BR is a surface-mounted magnetic contact (reed switch) designed for use in alarm and access control systems. It provides reliable detection of door and window openings, featuring a normally closed (NC) contact configuration and a maximum switching distance of 20 mm. The brown ABS plastic enclosure blends well with standard door and window frames, making it a discreet yet effective security component.

Advantages

Easy to install with screw terminals, the K-2 BR offers a robust and durable design suitable for indoor use. Its compact size and neutral brown colour allow for seamless integration into various environments. The reed switch technology ensures long-lasting performance with minimal maintenance.

Suitable for

• Doors and windows in residential and commercial buildings
• Integration with alarm systems and access control systems
• Surface-mounted applications where flush mounting is not possible

Key specifications

• Sensor Type: Magnetic Contact (Reed Switch)
• Mounting Type: Surface-mounted
• Contact Configuration: Normally Closed (NC)
• Max. Switching Distance: 20 mm
• Max. Switching Voltage: 20 V DC
• Max. Switching Current: 20 mA
• Max. Switching Power: 3 W
• Operating Temperature: -10°C to +55°C
• Enclosure Material: ABS Plastic
• Colour: Brown
• Connection Type: Screw terminals
• Application: Doors, Windows
• Compatibility: Alarm systems, Access control systems
• Tamper Protection: No

Recommendations

For optimal performance, ensure the gap between the contact and magnet does not exceed 20 mm. Suitable for use with SATEL alarm panels and other compatible control systems. Always follow local safety regulations during installation.
