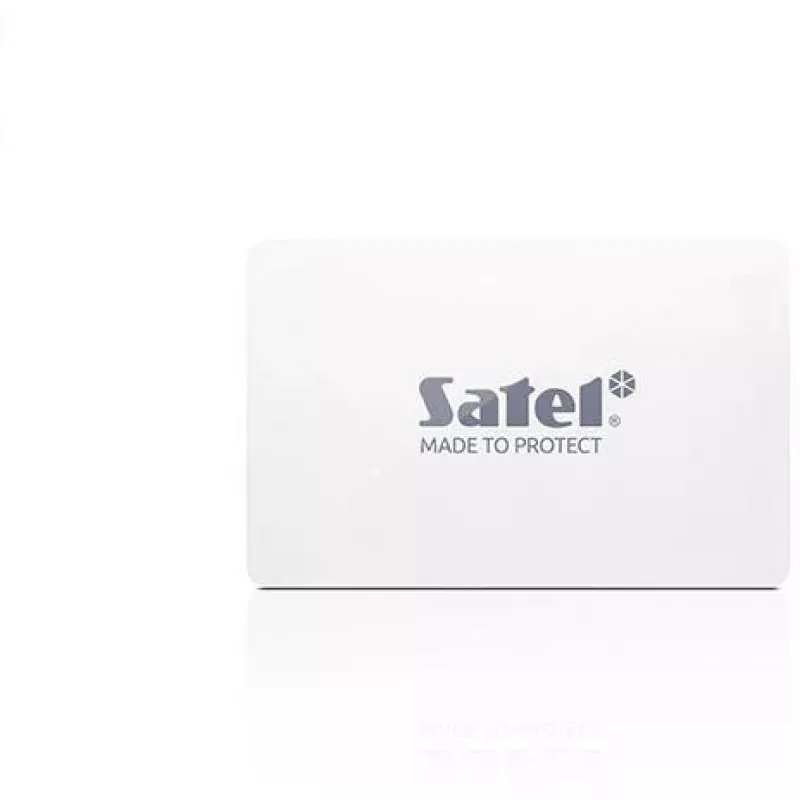

SATEL MIFARE DESFire EV3 8K contactloze smartcard (servicekaart, 13,56 MHz) MC-SRV-8

The SATEL MC-SRV-8 is a high-security contactless smart card designed for service and configuration of SATEL access control systems. Featuring the NXP MIFARE DESFire EV3 chip with 8 KB EEPROM memory, it operates at 13.56 MHz and complies with ISO/IEC 14443-4 Type A standard. This card is essential for programming and maintaining SATEL ACCO-NT and ACCO-PRO systems.

Advantages

Equipped with hardware DES/3DES/AES encryption and Common Criteria EAL5+ certified chip, the MC-SRV-8 ensures robust data protection. Its 7-byte unique identifier (UID) and 500,000 write endurance cycles guarantee long-term reliability. The card is made of durable PVC in standard ID-1 (CR80) format, suitable for daily use.

Suitable for

• Service and configuration of SATEL ACCO-NT and ACCO-PRO access control systems
• Secure identification and authentication in high-security environments
• Integration with existing MIFARE DESFire EV3 infrastructure

Key specifications

• Card Type: Contactless Smart Card
• Chip: NXP MIFARE DESFire EV3
• Memory: 8 KB EEPROM
• Frequency: 13.56 MHz (HF RFID)
• Standard: ISO/IEC 14443-4 Type A
• Security: Hardware DES/3DES/AES encryption, EAL5+ certified
• UID: 7-byte
• Data Retention: 10 years
• Write Endurance: 500,000 cycles
• Operating Temperature: -25°C to +70°C
• Material: PVC
• Format: ID-1 (CR80)
• Colour: White

Recommendations

Use the MC-SRV-8 as a dedicated service card for initial system setup and maintenance. Keep it in a secure location to prevent unauthorized access. For optimal performance, pair with SATEL readers supporting 13.56 MHz and MIFARE DESFire EV3.
