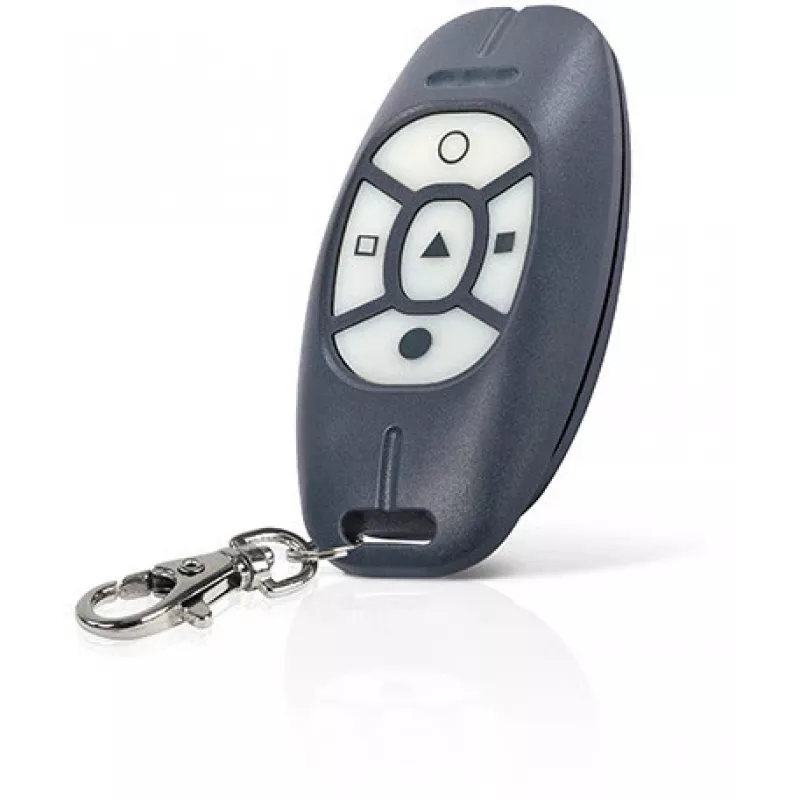

SATEL OPT-1 infraroodafstandsbediening voor OPAL Plus en OPAL Plus GY melders

The SATEL OPT-1 is a dedicated infrared remote control designed for configuring and controlling SATEL OPAL Plus and OPAL Plus GY series detectors. It provides installers and end-users with a convenient wireless interface for adjusting detector parameters, sensitivity, operating modes, and performing basic control functions such as arming/disarming, status check, test mode activation, and memory reset.

Advantages

Easy-to-use handheld remote with four buttons and a red LED indicator for IR transmission confirmation. Powered by a single CR2032 lithium battery with a lifespan of up to several years, ensuring long-term reliability. Compact and lightweight design makes it ideal for on-site adjustments and everyday use.

Suitable for

• Installers setting up and calibrating SATEL OPAL Plus and OPAL Plus GY detectors
• End-users performing basic control and status checks of compatible detectors
• Applications requiring non-contact configuration via infrared communication

Key specifications

• Communication Type: Infrared (IR)
• Compatibility: SATEL OPAL, OPAL Plus, OPAL Plus GY series detectors
• Power Supply: 1x CR2032 3V Lithium Battery
• Battery Life: Up to several years (usage dependent)
• Number of Buttons: 4
• Operating Range: Up to 5 meters (line of sight)
• Indicator: Red LED for IR transmission confirmation
• Enclosure Material: ABS Plastic
• Operating Temperature: -10°C to +55°C
• Humidity Range: 93 ±3% (non-condensing)
• Color: White/Grey

Recommendations

For optimal performance, ensure a clear line of sight between the remote and the detector. Replace the CR2032 battery when the LED indicator dims or fails to illuminate. This remote is not compatible with other SATEL detector series without IR support.
