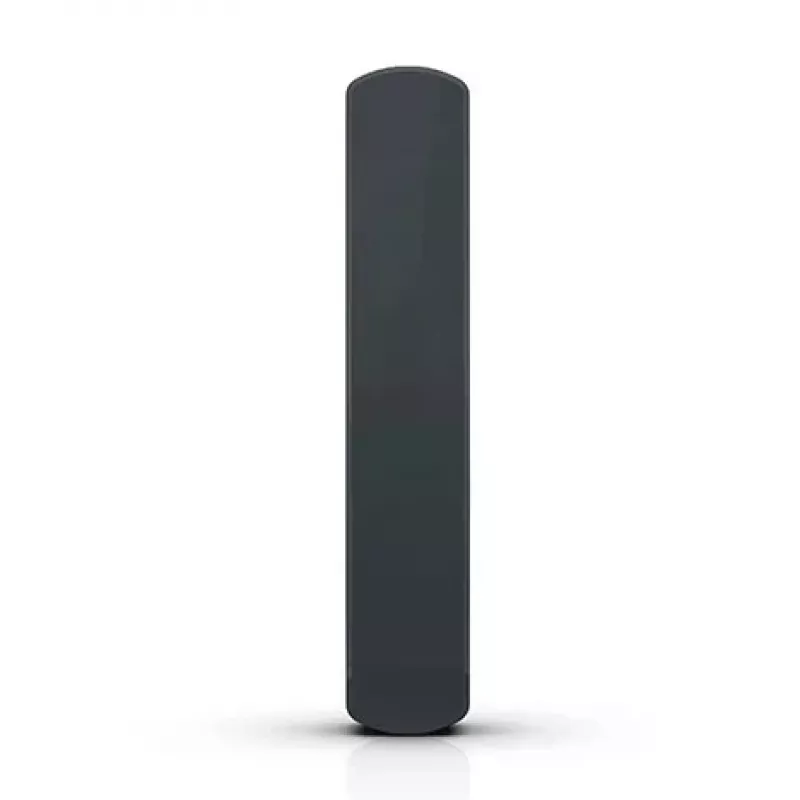

SATEL OPX-1 DG universele hermetische behuizing donkergrijs voor ABAX 2

The SATEL OPX-1 DG is a universal hermetic enclosure designed for outdoor installation of SATEL ABAX 2 system modules. Made from UV-stabilized polycarbonate, this dark grey enclosure provides IP54 protection against dust and water splashes, ensuring reliable operation in harsh weather conditions. It features dedicated mounting points for ABAX 2 modules such as ACU-220, ACU-280, INT-KWRL2, and INT-CR, and includes tamper protection against enclosure opening.

Advantages

Robust IP54-rated protection for outdoor use; UV-stabilized material for long-lasting durability; tamper-proof design enhances security; easy wall-mounting with pre-defined points for quick installation.

Suitable for

• Outdoor installation of SATEL ABAX 2 wireless alarm system modules
• Protecting control panels, expanders, and other compatible devices from weather elements
• Security system installations requiring a durable, weather-resistant enclosure

Key specifications

• Product type: Universal hermetic enclosure
• Product colour: Dark grey
• Material: Polycarbonate
• IP protection rating: IP54
• Intended environment: Outdoor
• Mounting method: Wall-mounted
• Tamper protection: Yes (against enclosure opening)
• Operating temperature range: -25°C to +55°C
• Relative humidity: Up to 93% (non-condensing)
• UV resistance: Yes (UV-stabilized polycarbonate)
• Compatible products: SATEL ABAX 2 system modules (ACU-220, ACU-280, INT-KWRL2, INT-CR)

Recommendations

For optimal performance, ensure the enclosure is securely wall-mounted and all cable entries are properly sealed to maintain IP54 protection. Use only with SATEL ABAX 2 modules to guarantee compatibility.
