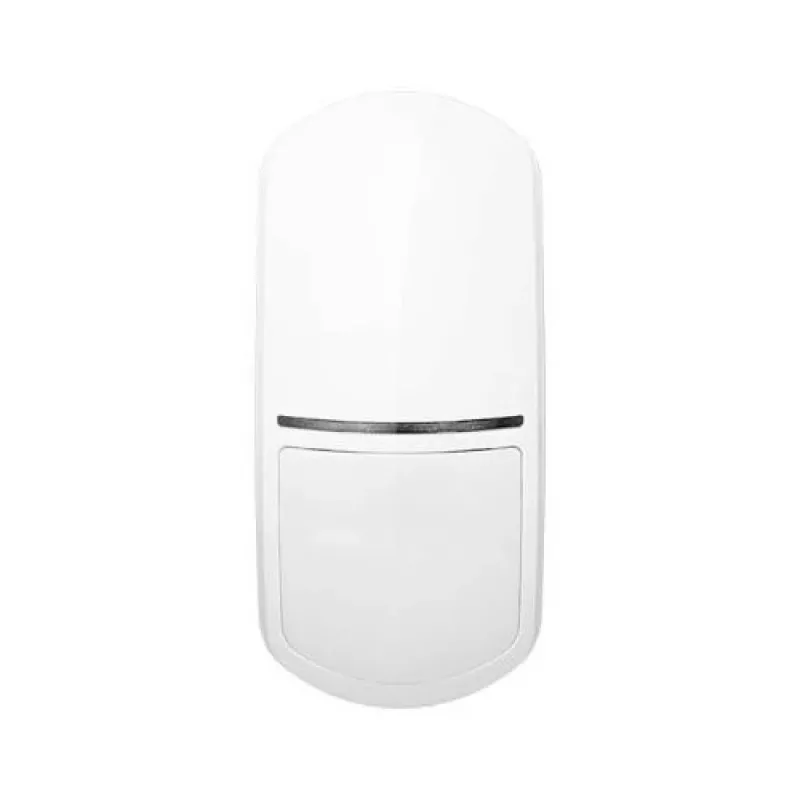

SATEL SLIM-DUAL-LUNA BUS dual-bus bewegingsmelder met lichtfunctie, PIR+MW

The SATEL SLIM-DUAL-LUNA BUS is a dual-technology motion detector combining passive infrared (PIR) and microwave (MW) sensors with an integrated white LED lighting function. Designed for use with SATEL INTEGRA and INTEGRA Plus control panels, it provides reliable intrusion detection and adjustable illumination for residential and commercial premises.

Advantages

Combines PIR and microwave detection for reduced false alarms, features adjustable white LED lighting for convenience, and supports remote configuration via DLOADX software. Pet immunity up to 20 kg (selectable) ensures minimal nuisance alarms from small animals.

Suitable for

• Indoor security systems requiring dual-technology detection
• Areas needing integrated lighting for enhanced visibility
• Integration with SATEL INTEGRA / INTEGRA Plus alarm panels

Key specifications

• Detection Technology: PIR + Microwave (24.125 GHz)
• Detection Range: 15 m x 24 m, 90° angle
• Integrated Lighting: White LED, adjustable brightness
• Power Supply: 12 V DC from SATEL BUS
• Max Current Consumption: 120 mA (with LEDs on), standby 40 mA
• Operating Temperature: -10°C to +55°C
• Environmental Class: II, Security Grade: EN 50131 Grade 2
• Tamper Protection: Enclosure opening and removal from mounting surface
• Installation Height: 2.4 m
• Digital Signal Processing and Temperature Compensation
• Remote Configuration via DLOADX

Recommendations

For optimal performance, mount at 2.4 m height and ensure the detection area is free of obstructions. Use DLOADX software for fine-tuning sensitivity and lighting parameters.
