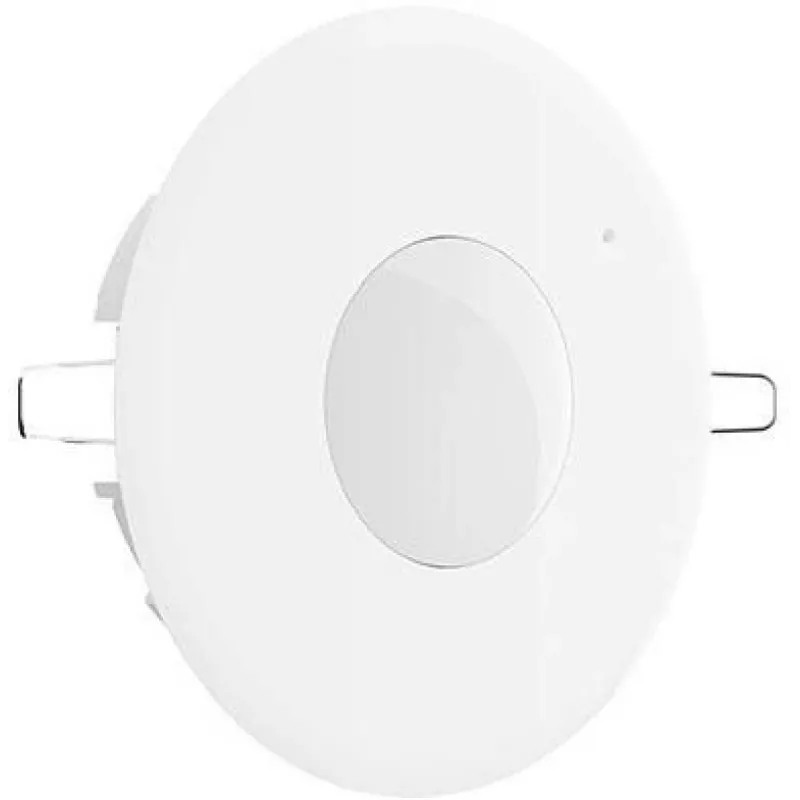

Satel SLIM-R-DUAL-PRO BUS duale plafond-bewegingsmelder met antimaskering, inbouw

The Satel SLIM-R-DUAL-PRO BUS is a high-performance dual technology motion detector designed for recessed ceiling mounting. It combines passive infrared (PIR) and microwave (24 GHz K-band) detection to provide reliable intrusion detection with reduced false alarms. The detector features advanced antimasking technology that uses microwave signals to detect attempts to cover or block the sensor. It communicates via the Satel BUS interface, allowing seamless integration with Satel alarm control panels for remote configuration and monitoring.

Advantages

Dual PIR and microwave detection ensures high accuracy and immunity to false triggers. The recessed design offers a discreet, flush-mounted appearance suitable for modern interiors. Antimasking protection enhances security by detecting tampering attempts. Digital temperature compensation maintains consistent performance across varying environmental conditions. Remote configuration via Satel control panels simplifies setup and adjustments.

Suitable for

• Residential and commercial security systems requiring reliable motion detection
• Ceiling-mounted installations where aesthetics and low profile are important
• Areas requiring antimasking protection to prevent sensor blocking
• Integration with Satel alarm systems via BUS communication

Key specifications

• Detection Technology: Dual (PIR + Microwave)
• Mounting Type: Recessed Ceiling
• Communication Interface: Satel BUS
• Antimasking: Yes (Microwave)
• Detection Coverage: 360°, up to 16 m diameter at 2.4 m height
• Recommended Mounting Height: 2.4 m - 4 m
• Microwave Frequency: 24 GHz (K-band)
• Power Supply: 12V DC (from Satel BUS)
• Current Consumption: Max. 20 mA
• Environmental Class: Grade 2 (EN 50131)
• Operating Temperature: -10°C to +55°C
• Digital Temperature Compensation: Yes
• Remote Configuration: Yes (via Satel control panel)
• Tamper Protection: Yes (against removal)
• LED Indicator: Yes (for status and test mode)
• Housing Color: White
• Housing Material: ABS Plastic

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 m in a location with clear line of sight to the protected area. Avoid placing near heat sources, air vents, or direct sunlight. Use with compatible Satel control panels for full feature access.
