SATEL SLIM-S-DUAL-LUNA BUS dubbele plafondbewegingsmelder met verlichtingsfunctie, opbouwmontage

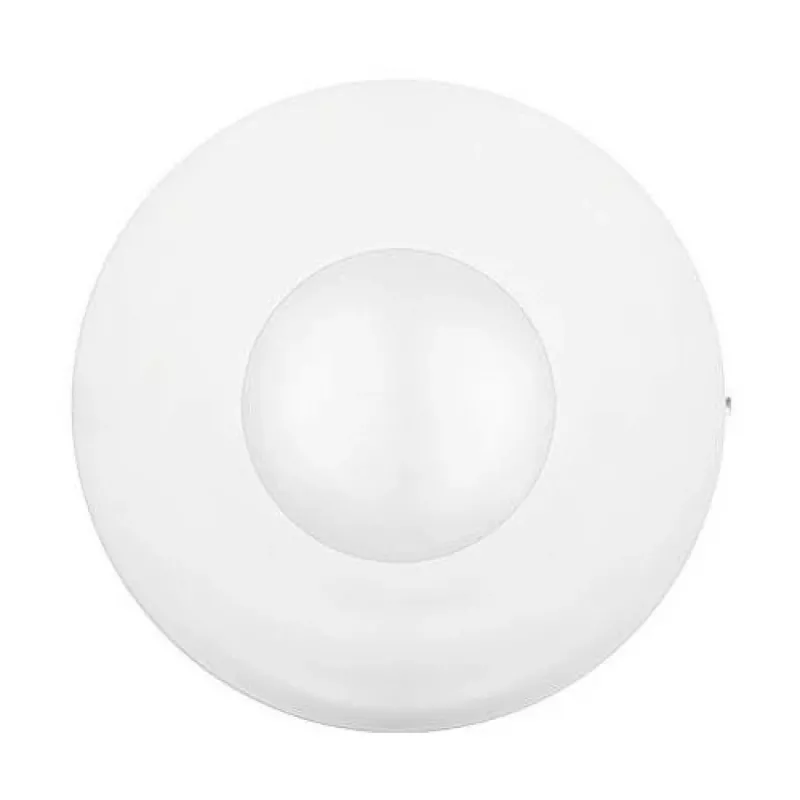

The SATEL SLIM-S-DUAL-LUNA BUS is a dual-technology ceiling motion detector with an integrated LED illuminator, designed for surface mounting. It combines passive infrared (PIR) and 24 GHz microwave detection to provide reliable intrusion detection while also offering a built-in white light lighting function. The detector communicates via the SATEL BUS interface and is compatible with INTEGRA and VERSA alarm control panels.

Advantages

Dual detection technology (PIR + microwave) reduces false alarms. The integrated LED illuminator provides lighting on demand, enhancing security and convenience. Surface-mounted design simplifies installation on ceilings. Adjustable PIR and microwave sensitivity allows fine-tuning for specific environments. Tamper protection ensures the device is not opened or removed without authorization.

Suitable for

• Indoor security systems in residential and commercial buildings
• Areas requiring both motion detection and lighting, such as corridors, stairwells, and open spaces
• Integration with SATEL INTEGRA and VERSA alarm systems via BUS communication

Key specifications

• Detection Technology: Dual (PIR + Microwave)
• Microwave Frequency: 24 GHz
• Detection Angle: 360°
• Detection Range: Up to 16 m diameter (at 3.7 m mounting height)
• Mounting Type: Ceiling, Surface-mounted
• Communication Interface: SATEL BUS
• Lighting Function: Built-in LED illuminator (white light)
• Power Supply: 12V DC (from control panel bus)
• Max Current Consumption: 100 mA (with LEDs on)
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50131-1)
• Security Grade: Grade 2 (EN 50131-1)
• Tamper Protection: Enclosure opening and detachment from mounting surface
• PIR Sensitivity Adjustment: Yes
• Microwave Sensitivity Adjustment: Yes
• LED Indicators: For alarm, pre-alarm, MW, PIR
• Application Environment: Indoor
• Housing Material: ABS Plastic
• Compliance: EN 50131-2-4, EN 50131-1

Recommendations

For optimal performance, mount the detector at a height of 2.5 to 4 meters. Avoid placing near heat sources, air vents, or direct sunlight. Ensure the BUS connection is properly terminated. The lighting function can be configured via the control panel to activate on alarm or manually.
