Satellietschotel Megasat D4

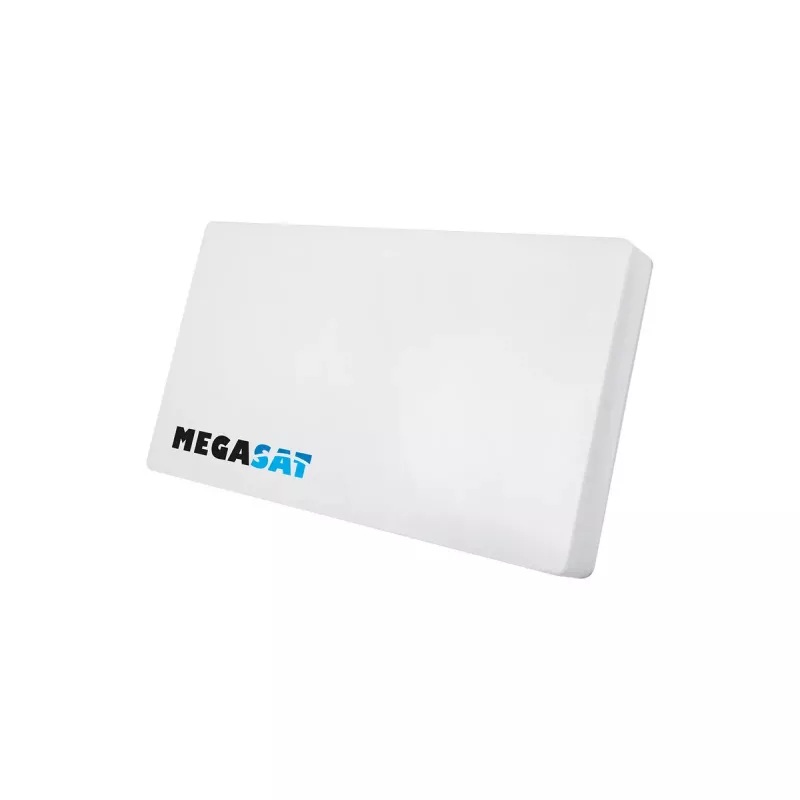

The Megasat D4 is a flat satellite antenna offering reception performance equivalent to a conventional 60 cm parabolic dish. Its compact, low-profile housing measures 525 mm × 68 mm × 290 mm and is designed for unobtrusive mounting on balconies or house walls. The antenna covers the satellite frequency range 10.7–12.75 GHz and provides high band output of 1100–2150 MHz and low band output of 950–1950 MHz. A universal exchangeable LNB supporting 1, 2 or 4 users is included, and the unit draws approximately 160 mA at standard receiver voltages.

Advantages

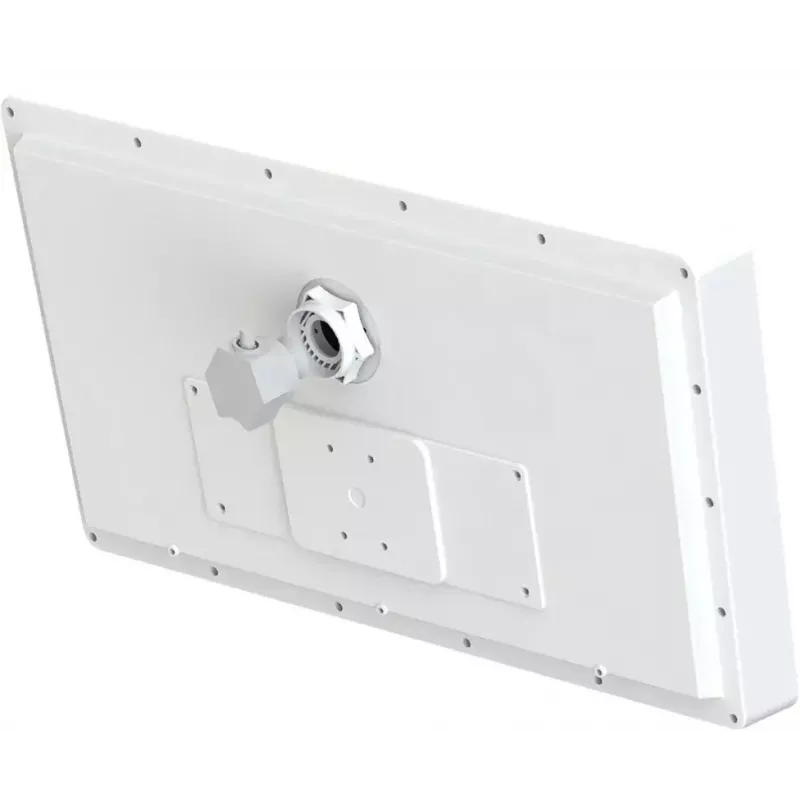

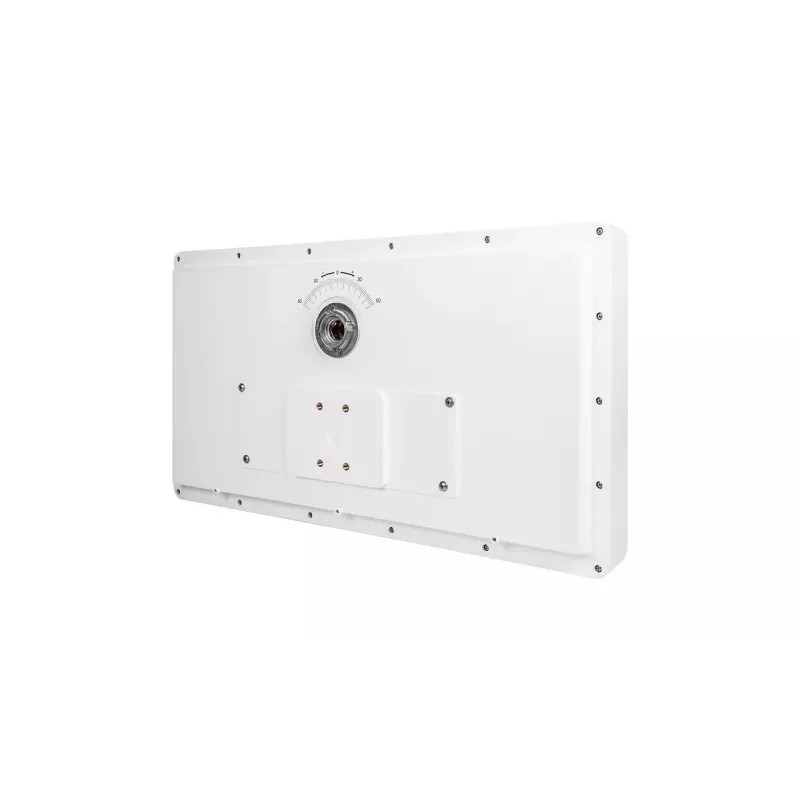

The flat design offers space-saving, discreet installation while delivering reception comparable to a 60 cm dish. The robust housing protects internal electronics from weather. The included universal LNB can be replaced separately if faulty or when upgrading to serve additional users, reducing maintenance and upgrade costs.

Suitable for

Key specifications

How to use

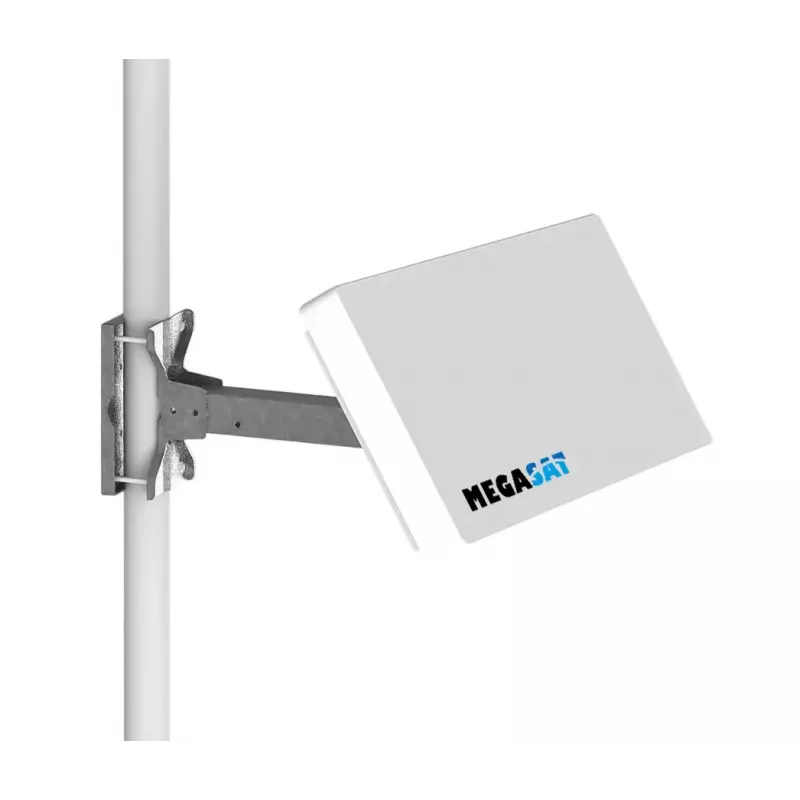

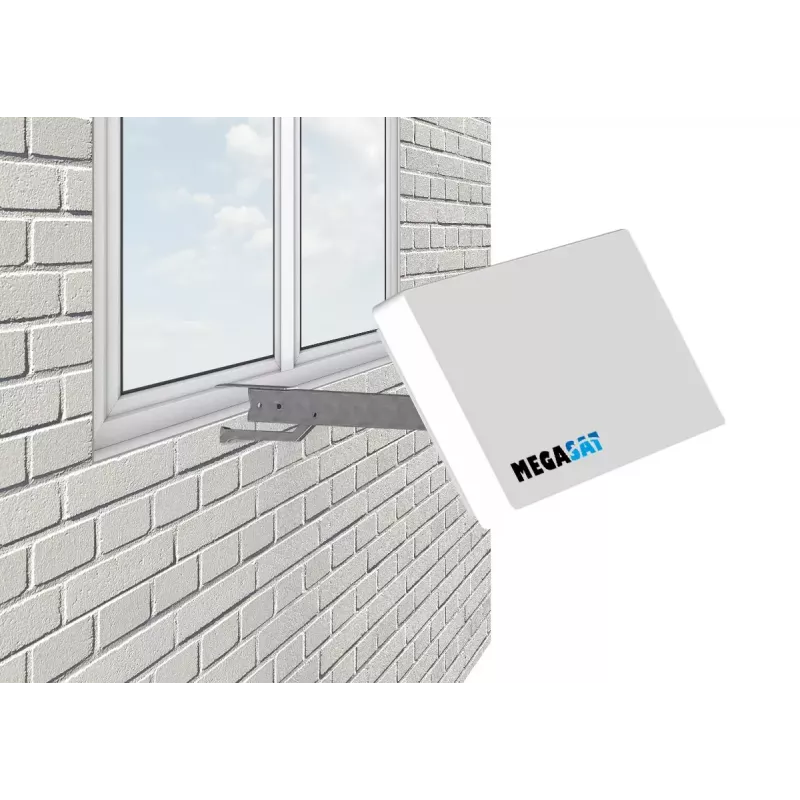

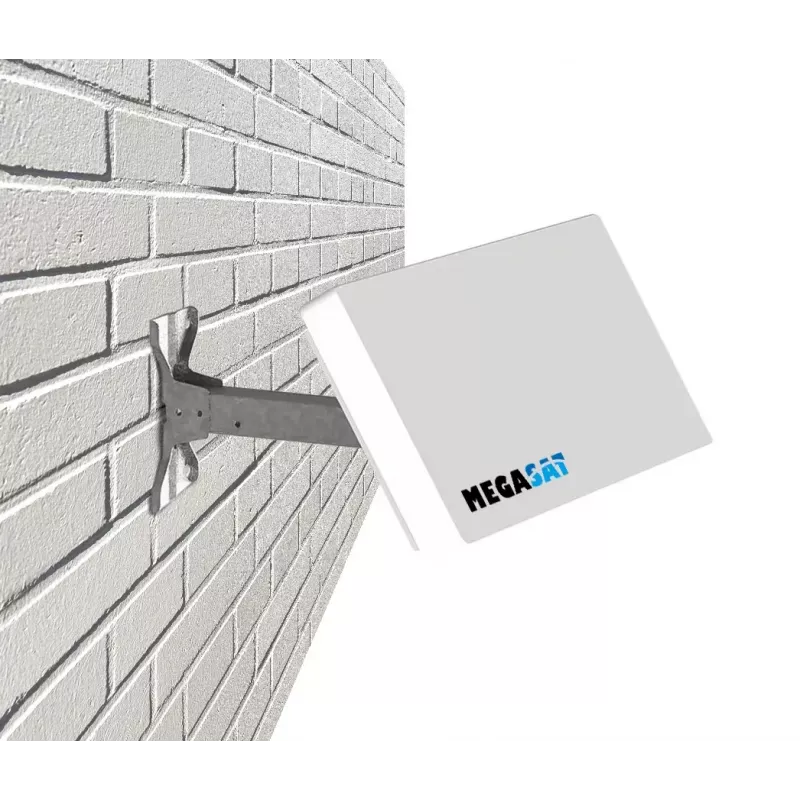

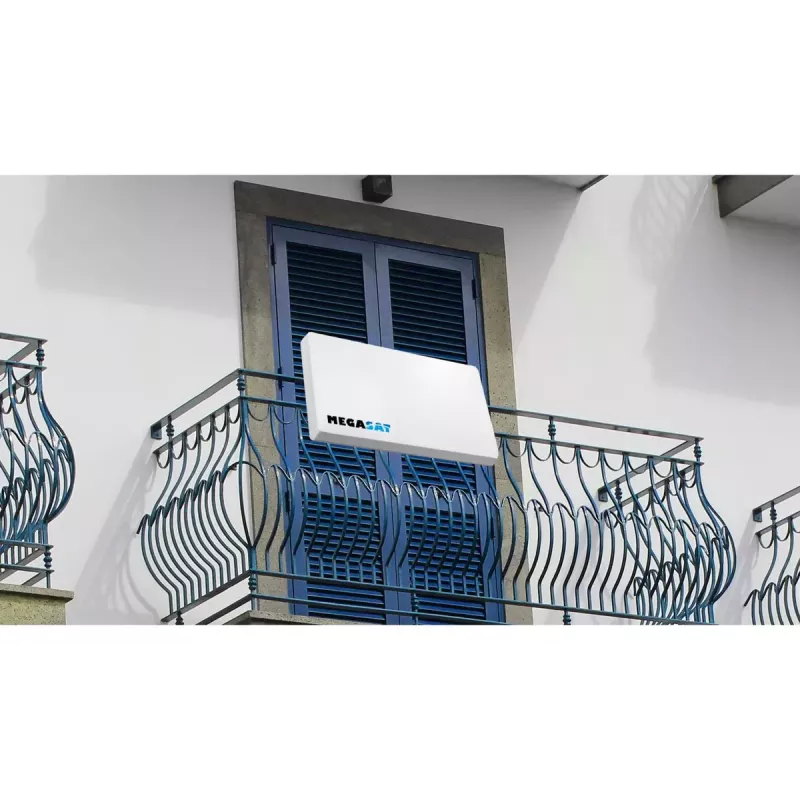

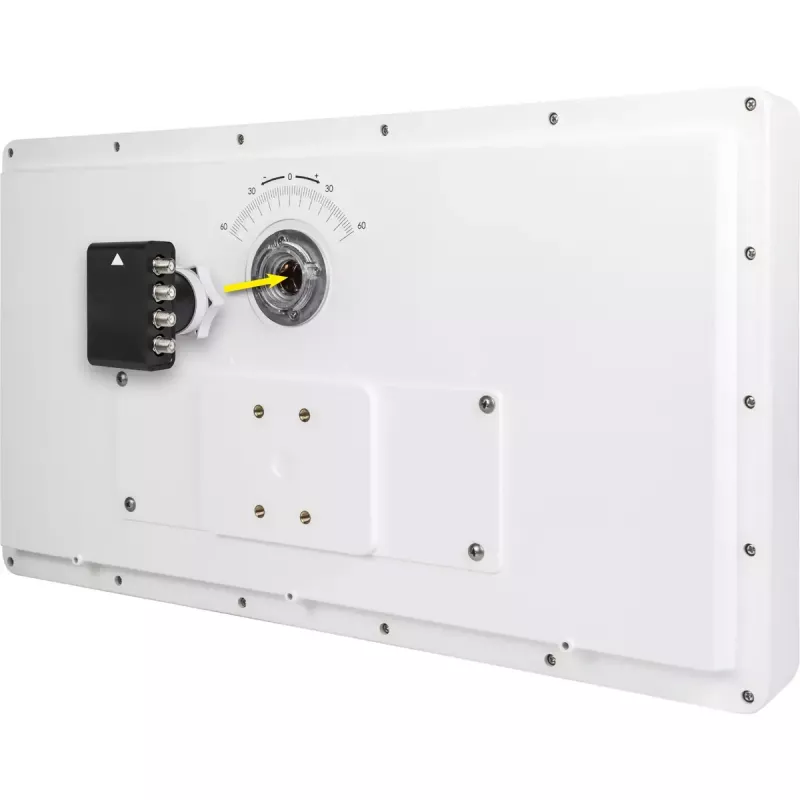

Mount the flat antenna on a balcony railing or a solid wall using suitable mounting brackets and fixings. Aim the antenna toward the satellite direction for your location and connect the included universal LNB to the coaxial cable(s). Connect the cable(s) to your satellite receiver(s) and supply power from the receiver in the normal way (12–14 V or 16–19 V). If you need additional receivers, replace the LNB with a suitable multi-output type or configure the included LNB for the required number of users.

Recommendations

For best reception, choose an installation point with an unobstructed view to the satellite and secure mounting to prevent movement in wind. When replacing the LNB, follow the manufacturer’s instructions and turn off receiver power before making connections.
