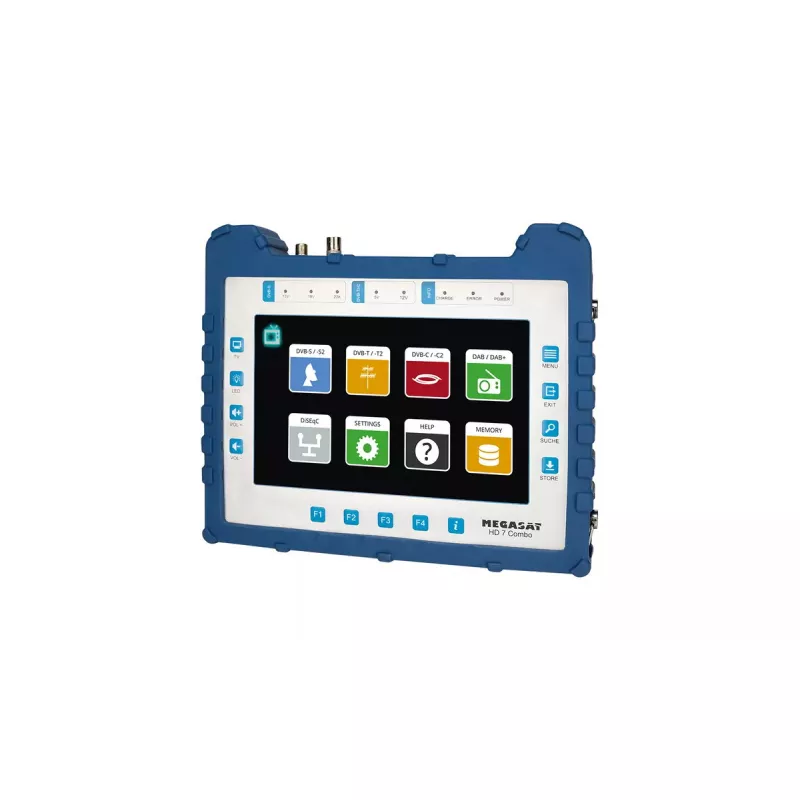

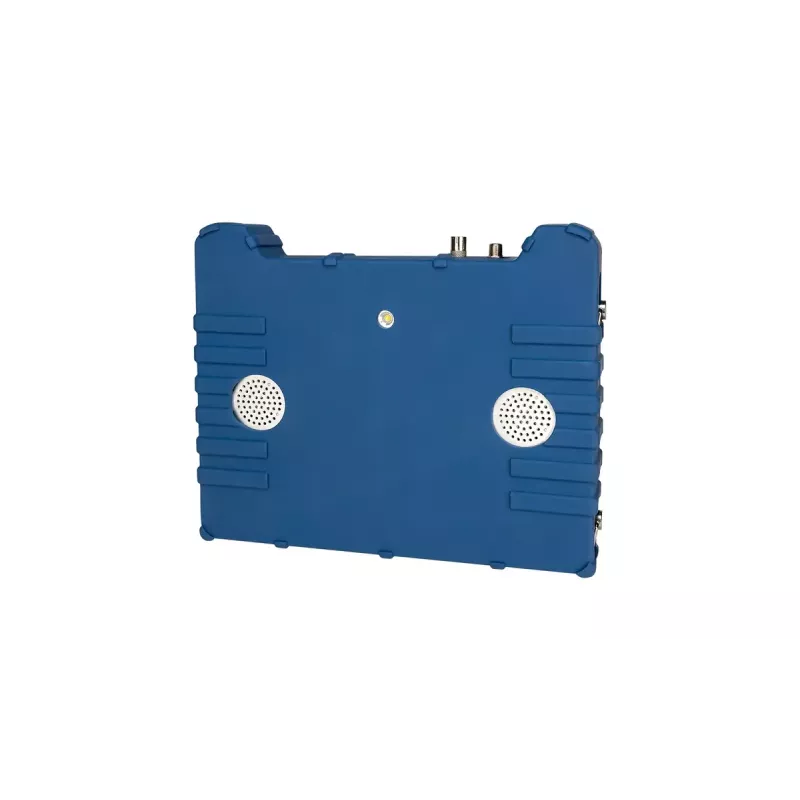

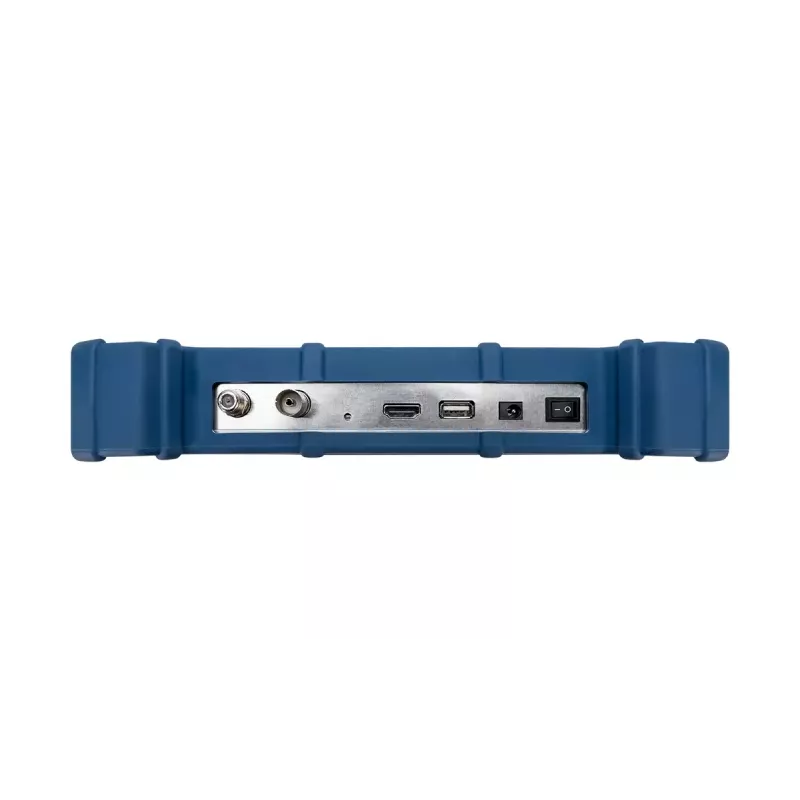

Satellietzoeker Megasat HD 7 Combo

The Megasat HD 7 Combo is a portable satellite finder with an 8.9-inch touch color display for measurement and analysis of satellite, cable, terrestrial (including DVB-T2 HD) and DAB/DAB+ radio signals. It combines spectrum and constellation diagrams, automatic satellite detection (NIT), an integrated receiver with live TV playback of free-to-air SD/HD/UHD channels and a robust aluminum housing with an LED work light. The device supports DiSEqC monitoring to read switching commands and stores measured data via USB. The battery delivers up to 4 hours of operation and can be charged via 230 V adapter or the included car charger.

Advantages

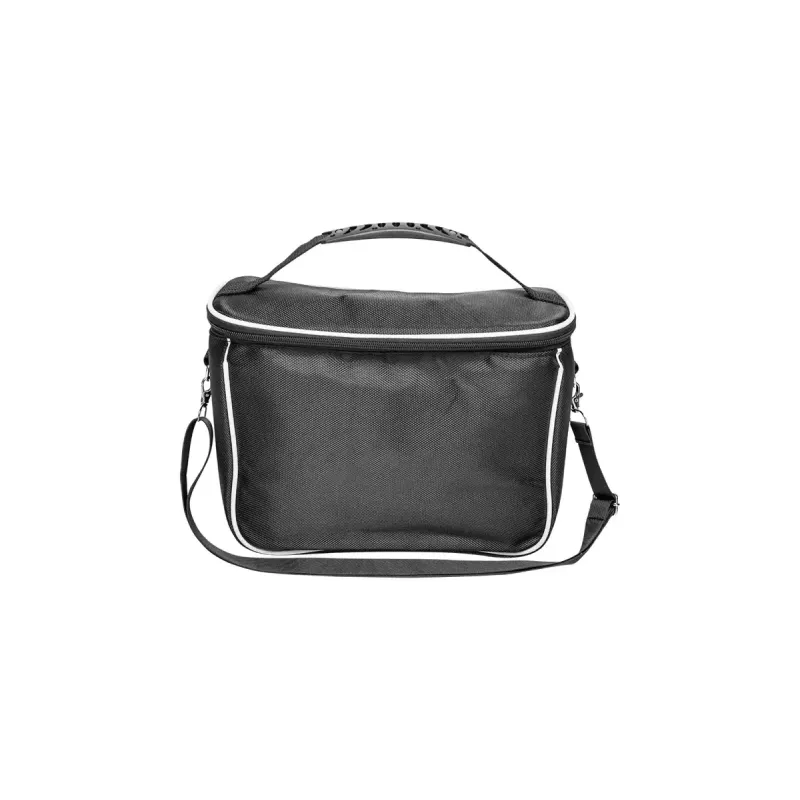

The Megasat HD 7 Combo offers precise signal level and quality readouts together with spectrum and constellation analysis for rapid error identification and fine alignment. Its integrated TV receiver and preinstalled channel list allow immediate live-image verification while the automatic NIT satellite detection and built-in compass with angle calculation simplify dish alignment. The solid aluminium housing, rear LED light and included protective cover improve durability and usability in the field. Measured data, program lists and firmware updates are handled via USB.

Suitable for

Key specifications

How to use

Connect the antenna or cable to the Megasat HD 7 Combo and turn the device on. Use the clear menu and the touch display to select the signal type to measure (satellite, cable, terrestrial or DAB). For dish alignment, view the large signal level and quality indicators or open the magnified display. Use the integrated compass and angle calculation by entering your location data to obtain elevation and azimuth values, then adjust the dish accordingly. Use spectrum and constellation views to identify interference or misalignment and confirm reception by playing back free-to-air channels via the integrated receiver. Save measurement results or export program lists and firmware updates using a USB stick.

Recommendations

For fastest and most accurate dish alignment, enable automatic satellite detection (NIT), use the magnified signal display while adjusting the dish, and verify reception with live TV playback. Charge the battery before extended field use and protect the unit with the provided cover to avoid moisture and dirt.
