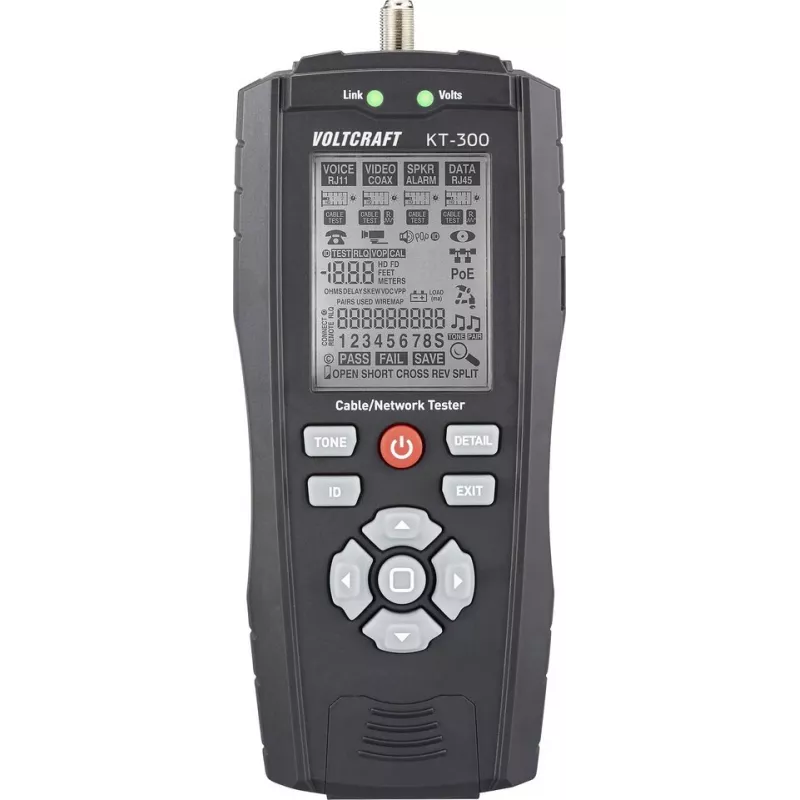

VOLTCRAFT KT-300 kabeltester VC-17497100 voor telecommunicatie en netwerk

Network and telecommunications cable tester with comprehensive connector support, enabling rapid verification of RJ45, RJ11/RJ12, BNC, USB, and FireWire cabling. The VOLTCRAFT KT-300 detects open circuits, shorts, crossed wires, and miswires, ensuring reliable installations up to 100 meters.

Advantages

Automatic scanning simplifies testing: the main unit cycles through all wires and displays results via 9 LEDs, including shield/ground. The detachable remote unit allows one-person testing of installed cables. A low battery indicator prevents unexpected interruptions, and the included carrying case protects the tester during transport.

Suitable for

• Network technicians verifying Ethernet and telephone installations
• AV professionals testing coaxial and FireWire connections
• IT support staff troubleshooting USB peripheral cabling
• Field service engineers needing a portable, multi-interface tester

Key specifications

• Supported cable types: RJ45 (UTP/STP), RJ11/RJ12, BNC, USB (Type A-B), FireWire (IEEE 1394)
• Test functions: continuity, open, short, cross, miswire, shielding test
• Display: 9 LED indicators for 8 wires plus shield/ground
• Power: 1x 9V block battery (6LR61, not included)
• Maximum cable length: 100 meters
• Operating temperature: 0 to +50 °C
• Housing: ABS plastic
• Included: remote unit, BNC adapter cable, USB A-B adapter cable, FireWire 6-pin and 4-pin adapter cables, carrying case

Recommendations

For installers and technicians who need a reliable, all-in-one cable tester for multiple connector standards, the KT-300 delivers efficient diagnostics with clear LED indication and a practical remote unit for single-person testing.
