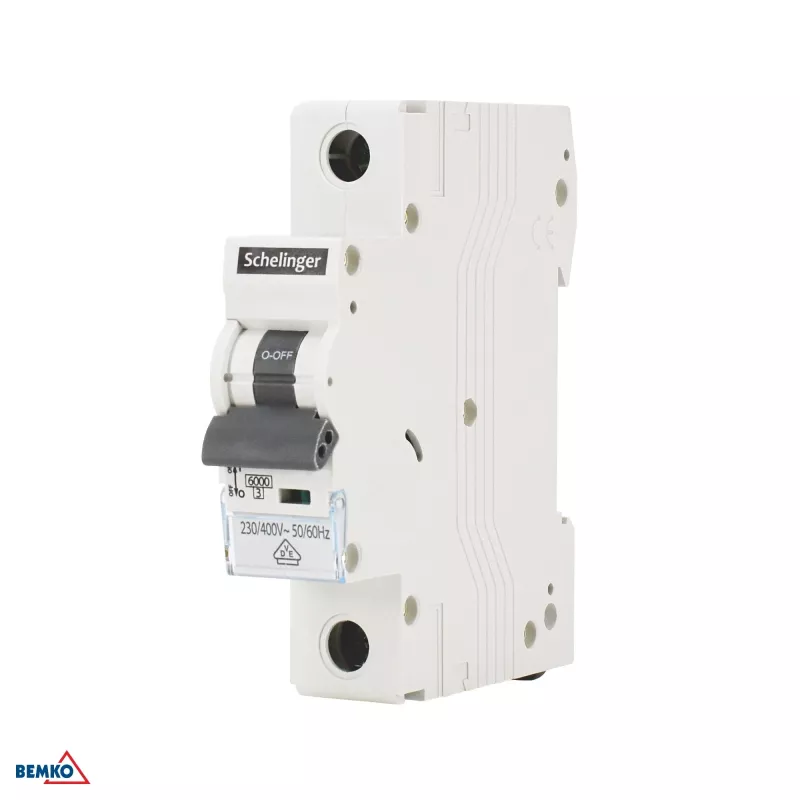

SCHELINGER A02-G8-1P-B63 installatieautomaat 6kA 1P B 63A VDE

For installations where a 63 A load must be protected without nuisance tripping, the SCHELINGER A02-G8-1P-B63 delivers a B-curve response and a true 6 kA breaking capacity in a compact single-module housing. Unlike generic breakers that soften their magnetic trip under real fault conditions, this unit holds its calibration across the full -25 °C to +55 °C operating window, so motors, heaters and lighting banks start cleanly while short-circuit energy is still limited to class 3.

Highlights

• Rated current 63 A, tripping curve B, 1-pole protected
• Short-circuit breaking capacity 6 kA at 230/400 V AC
• Energy limiting class 3 for reduced let-through energy
• DIN rail mounting on 35 mm EN 60715 profile
• VDE certified, compliant with IEC/EN 60898-1
• Wide terminal range: 1–35 mm² rigid, 1–25 mm² flexible
• 10,000 electrical and 20,000 mechanical operating cycles

In daily use

The A02-G8-1P-B63 is built for distribution boards where space is tight but performance cannot be compromised. Its single-pole design occupies one 18 mm module, yet the terminal capacity accepts large cross-sections up to 35 mm², reducing the need for additional reduction terminals. The B-curve magnetic trip is set to 3–5 times rated current, making it suitable for circuits with moderate inrush currents such as resistive heating, water heaters, and general socket outlets. During a fault, the 6 kA breaking capacity safely interrupts the current without damage to the device, and the IP20 housing (IP40 at terminals) protects against accidental contact while allowing easy inspection and wiring.

Full specifications

• Product type: Miniature Circuit Breaker (MCB)
• Number of poles: 1P
• Rated current: 63 A
• Tripping curve: B
• Short-circuit breaking capacity: 6 kA
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail 35 mm (EN 60715)
• Standards: IEC/EN 60898-1, VDE
• Energy limiting class: 3
• Terminal capacity: 1–35 mm² rigid, 1–25 mm² flexible
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Operating temperature: -25 °C to +55 °C
• Protection degree: IP20 (terminals IP40)
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated insulation voltage (Ui): 500 V

Final note

The SCHELINGER A02-G8-1P-B63 combines VDE-certified safety with a robust design that handles high currents in a single module, making it a reliable choice for demanding electrical installations.
