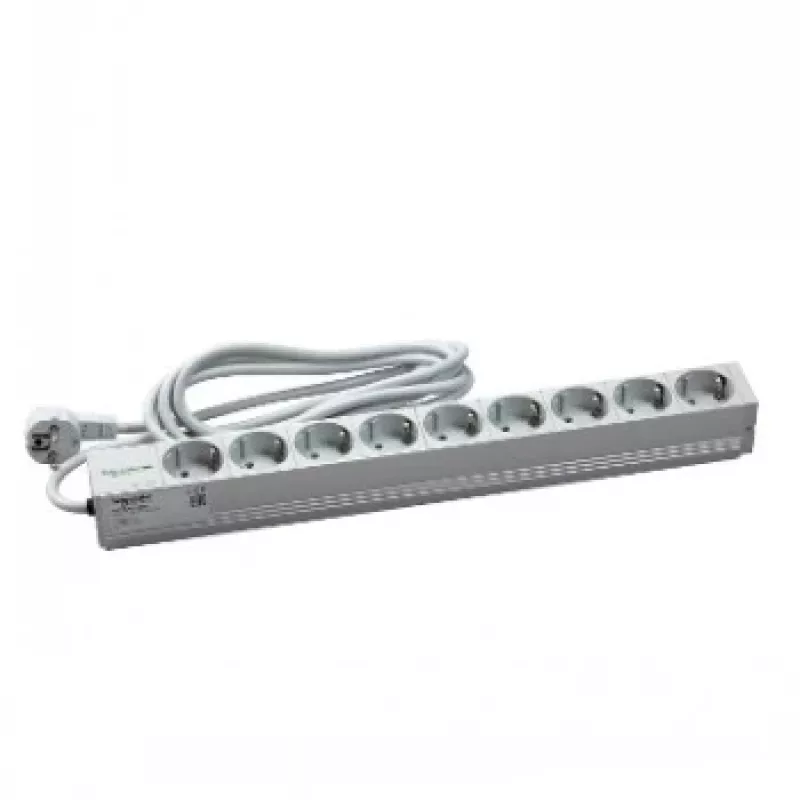

Schneider Electric Actassi 1U PDU Power Distribution Rail - 9 Schuko stopcontacten 19 inch VDE

The Schneider Electric Actassi NSYAPU19S9 is a 1U rackmount power distribution unit designed for 19-inch racks. It provides reliable power distribution with 9 Schuko outlets (CEE 7/3) and an IEC C14 input connector, ideal for data centers and network cabinets.

Advantages

Compact 1U form factor saves rack space; robust aluminium construction ensures durability; VDE certification guarantees safety and compliance.

Suitable for

• Server rooms and data centers requiring basic power distribution
• Network cabinets with 19-inch racks
• Applications needing Schuko outlets for European equipment

Key specifications

• Form Factor: 1U Rackmount
• Number of Outlets: 9
• Outlet Type: Schuko (CEE 7/3)
• Input Connector: IEC 60320 C14
• Rated Voltage: 230V AC
• Rated Current: 10 A
• Power Capacity: 2300 W
• Frequency: 50/60 Hz
• Mounting: Horizontal 19-inch
• Enclosure Material: Aluminium
• Colour: Black
• Certifications: VDE, CE, RoHS

Recommendations

For optimal performance, ensure the PDU is mounted securely in a well-ventilated rack. Do not exceed the rated current.
