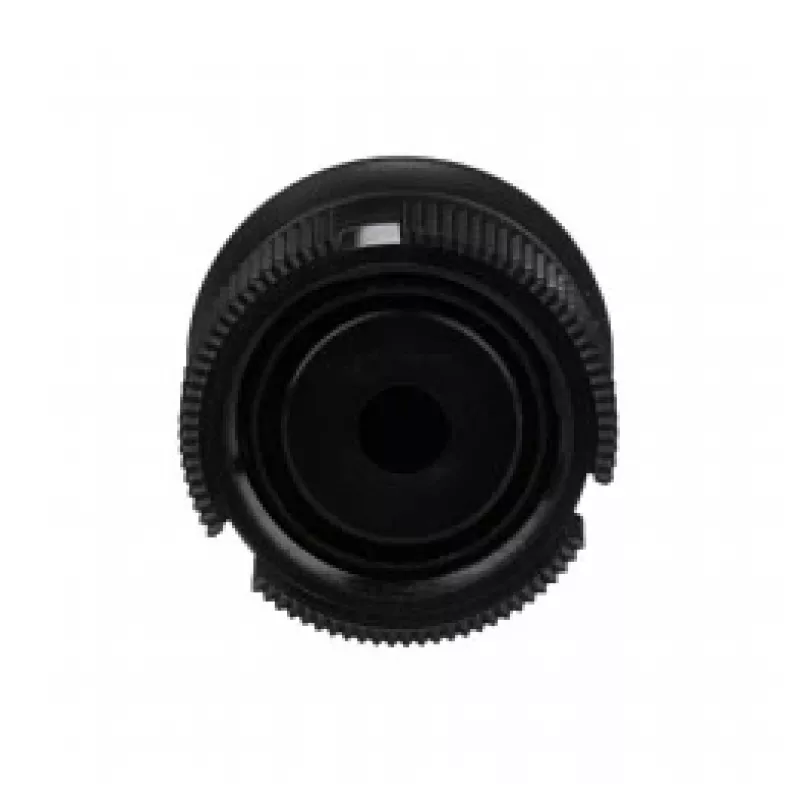

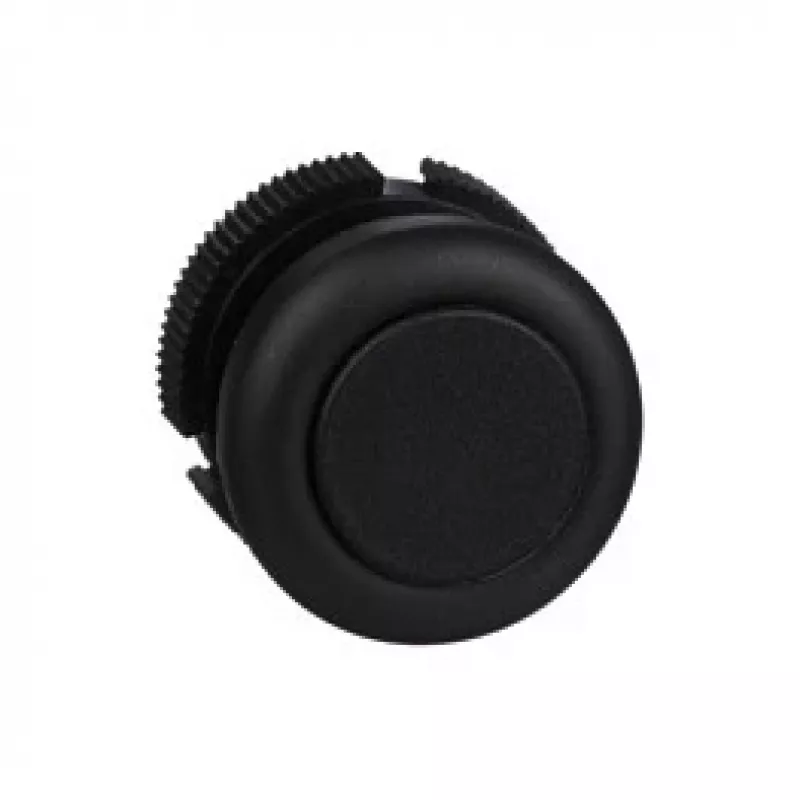

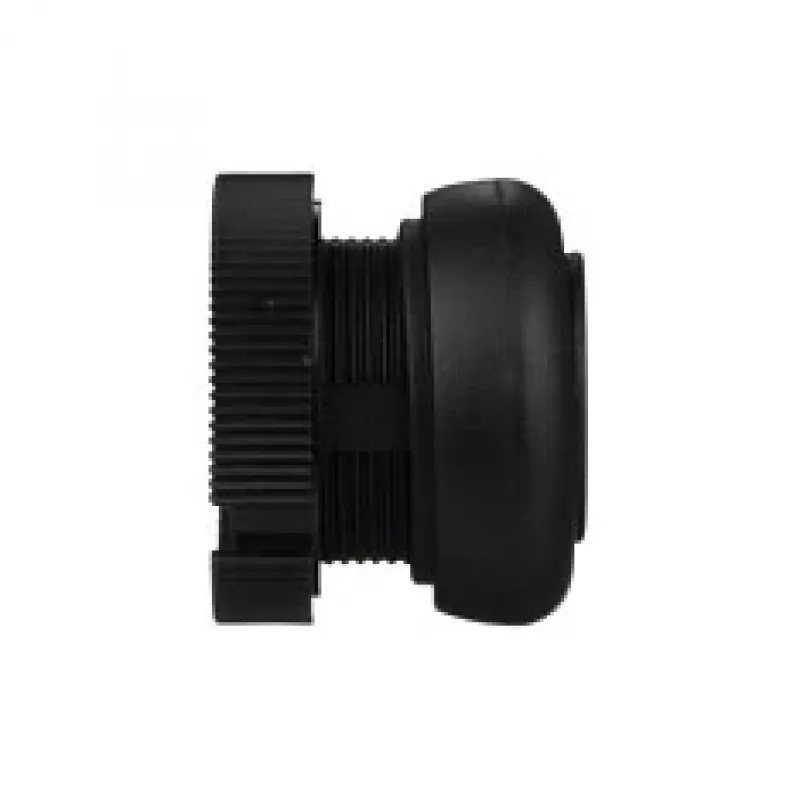

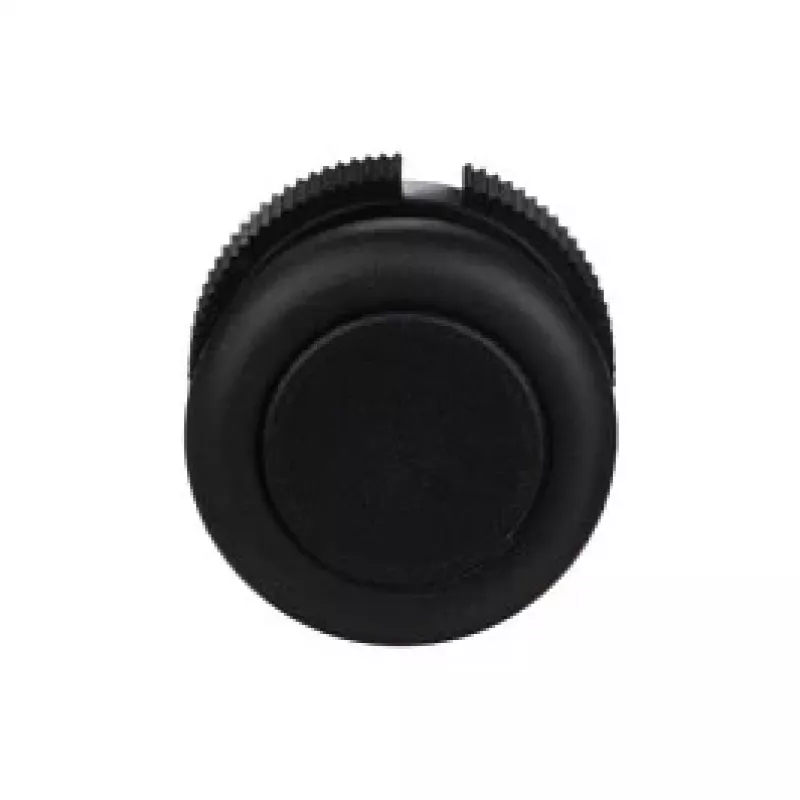

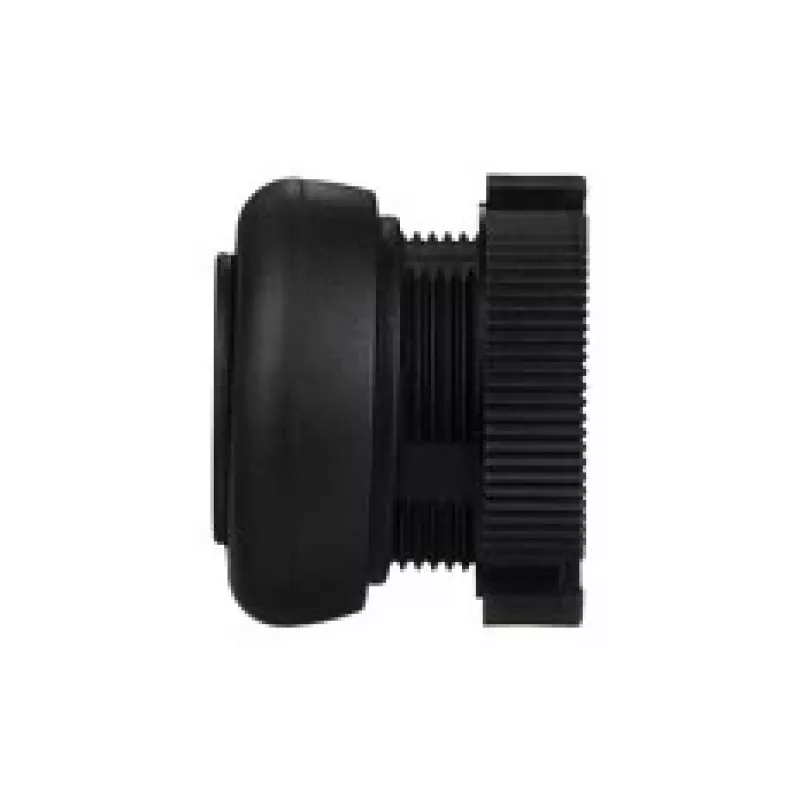

SCHNEIDER XACA9412 pendelbedieningsstation drukknop zwart

With a mechanical life of 1,000,000 operations and an IP65 protection rating, the SCHNEIDER XACA9412 push button delivers exceptional reliability in demanding industrial environments. This black button unit is engineered for pendant control stations, combining robust construction with secure screw-clamp terminals for maintenance-free connections.

Overview

Part of the Harmony XAC series, the XACA9412 is a complete push button unit designed for use in pendant control stations. It features a black button head, a 1NO contact block, and a body constructed from high-quality plastic. The unit is rated for operational currents up to 3 A at 240 V AC, making it suitable for a wide range of control circuits. Its operating temperature range of -25°C to +70°C ensures functionality in extreme conditions.

What stands out

• Exceptional mechanical life: 1,000,000 cycles for long-term reliability.
• IP65 protection: dust-tight and protected against water jets.
• Wide operating temperature: from -25°C to +70°C for versatile use.
• Compact design: 70 mm width and 80 mm height for easy integration.
• Secure screw-clamp terminals: ensure stable electrical connections.

Technical details

• Brand: SCHNEIDER
• Model: XACA9412
• MPN: XACA9412
• EAN: 3389110645149
• Product colour: Black
• Mounting diameter: 22 mm
• Contacts configuration: 1NO
• Rated operational current: 3 A at 240 V AC
• Degree of protection: IP65
• Operating temperature: -25°C to +70°C
• Mechanical durability: 1,000,000 cycles
• Width: 70 mm
• Height: 80 mm
• Material: Plastic

Our verdict

The XACA9412 is a rugged and dependable push button for industrial control, offering outstanding durability and protection in a compact form factor.
