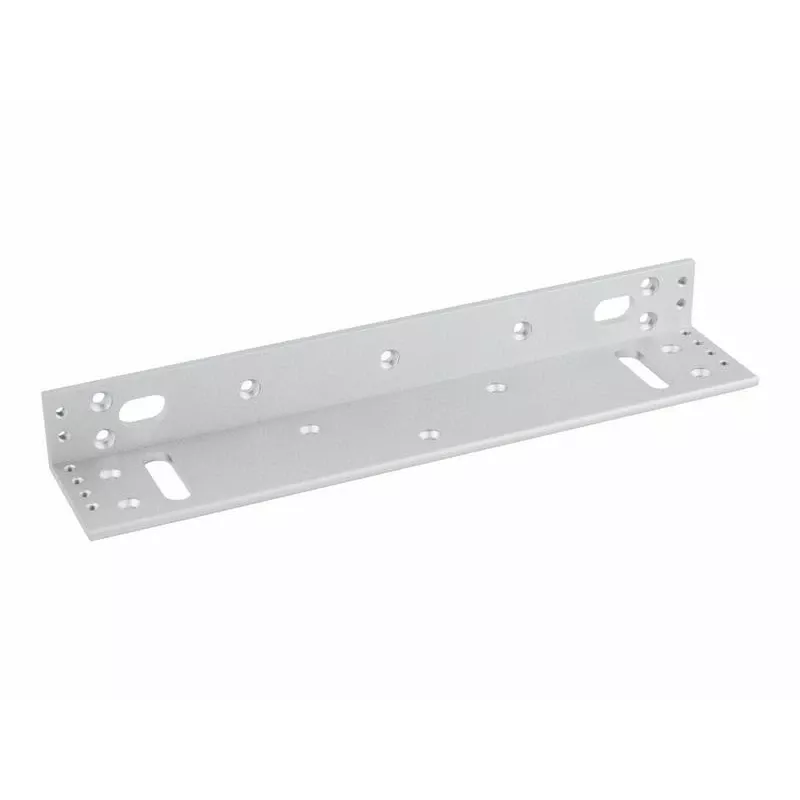

SCOT BK-600L2 montagebeugel voor EL-600SL, TSL

The SCOT BK-600L2 is a high-strength aluminum alloy mounting bracket designed specifically for SCOT EL-600SL and EL-600TSL magnetic locks with 600 lbs holding force. This L-type bracket ensures secure and stable installation on door frames for inward opening doors, providing reliable performance in access control systems.

Advantages

Constructed from anodized aluminum alloy, the BK-600L2 offers excellent corrosion resistance and durability for long-term indoor use. Its surface-mount design simplifies installation, and the included mounting screws facilitate quick setup. The bracket's precise dimensions (250x47x28 mm) ensure a perfect fit for compatible lock models.

Suitable for

• SCOT EL-600SL and EL-600TSL magnetic locks
• Access control systems for inward opening doors
• Indoor security applications requiring robust mounting

Key specifications

• Product Type: Mounting Bracket
• Bracket Configuration: L-Type
• Compatible Lock Holding Force: 600 lbs (280 kg)
• Material: High-strength Aluminum Alloy
• Surface Finish: Anodized Silver

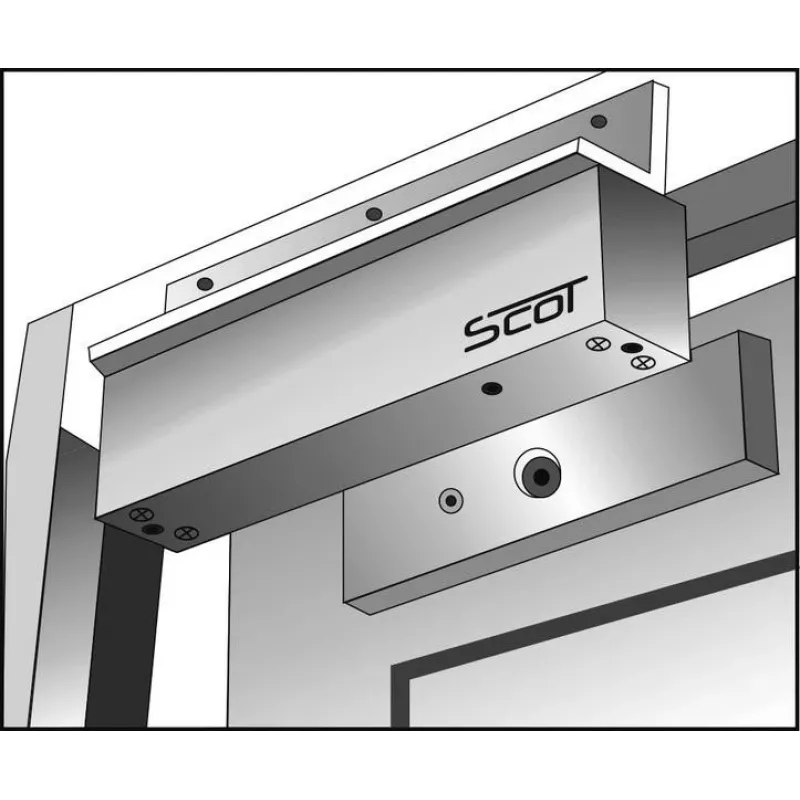

• Mounting Position: Door Frame
• Installation Method: Surface Mount

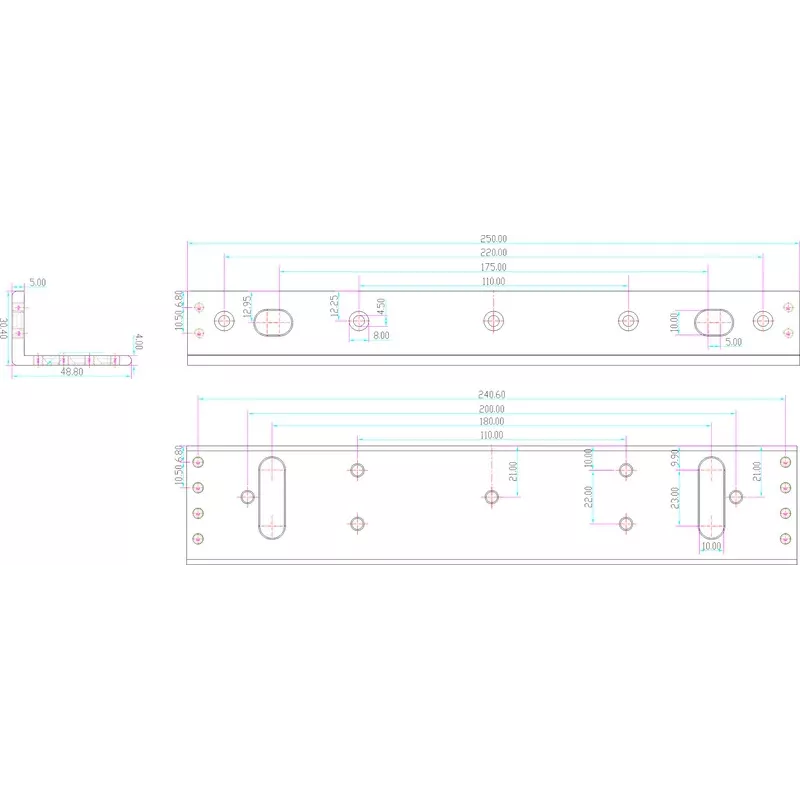

• Overall Dimensions: 250 x 47 x 28 mm
• Included Hardware: Mounting Screws

Recommendations

For optimal performance, use this bracket with SCOT EL-600SL or EL-600TSL locks. Ensure the door frame is suitable for surface mounting and follow the manufacturer's installation instructions.
