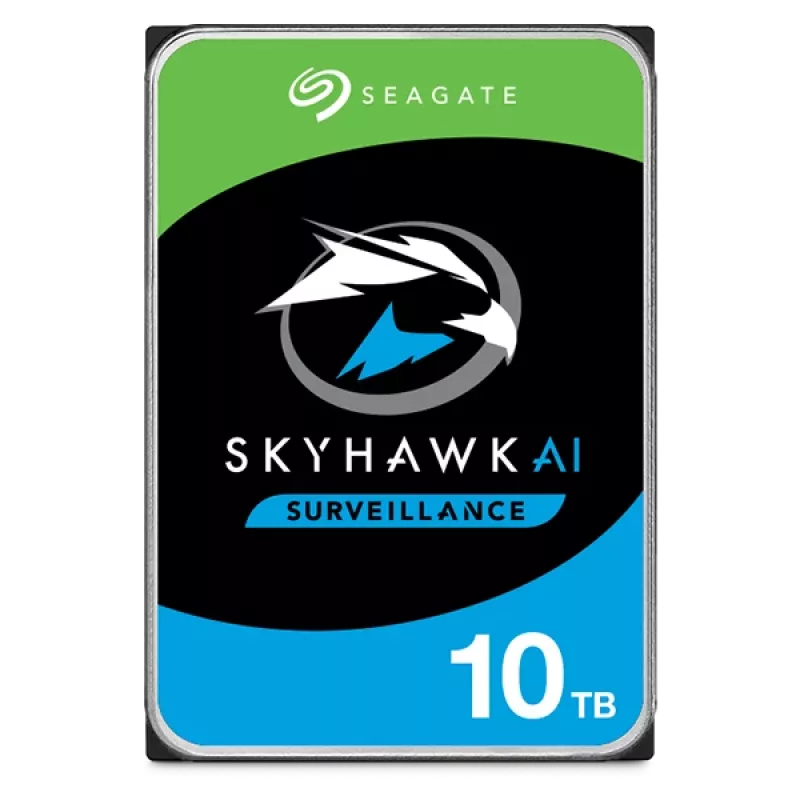

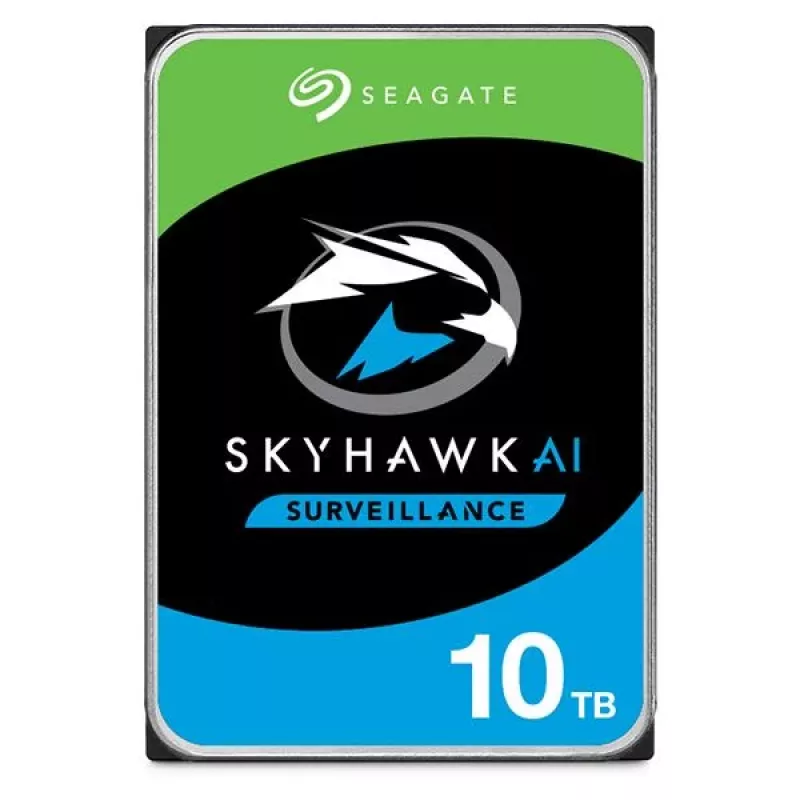

Seagate ST10000VE001 SkyHawk Surveillance HDD, 10 TB, 3,5 inch, 7200 RPM

The Seagate ST10000VE001 SkyHawk Surveillance HDD is a high-capacity 10 TB hard drive designed specifically for 24/7 surveillance systems. Built with reliability and performance in mind, it supports up to 64 cameras and is optimized for video streaming workloads. With a 3.5-inch form factor and 7200 RPM spindle speed, this drive ensures smooth recording and playback of high-definition footage.

Advantages

High storage capacity of 10 TB allows for extended recording without frequent overwrites. The 7200 RPM speed provides fast data access, reducing latency in multi-camera setups. Designed for continuous operation, it offers enhanced reliability with a workload rate of up to 180 TB/year. The drive also features ImagePerfect firmware that minimizes frame loss and ensures smooth video playback.

Suitable for

• Surveillance DVRs and NVRs
• Security camera systems with up to 64 cameras
• 24/7 recording environments
• Video analytics and edge storage applications

Key specifications

• Capacity: 10 TB
• Form factor: 3.5-inch
• Interface: SATA III (6 Gb/s)
• Spindle speed: 7200 RPM
• Cache: 256 MB
• Workload rate: 180 TB/year
• MTBF: 1,000,000 hours
• Power consumption: 5.0W idle, 7.5W active
• Operating temperature: 0°C to 65°C
• Storage temperature: -40°C to 70°C
• Dimensions: 26.11 x 101.85 x 146.99 mm
• Weight: 650 g

Recommendations

For optimal performance in surveillance systems, pair this drive with a compatible NVR or DVR that supports SATA III. Ensure adequate cooling in the enclosure to maintain reliability during continuous operation. This drive is an excellent choice for upgrading existing systems or building new high-capacity surveillance solutions.
