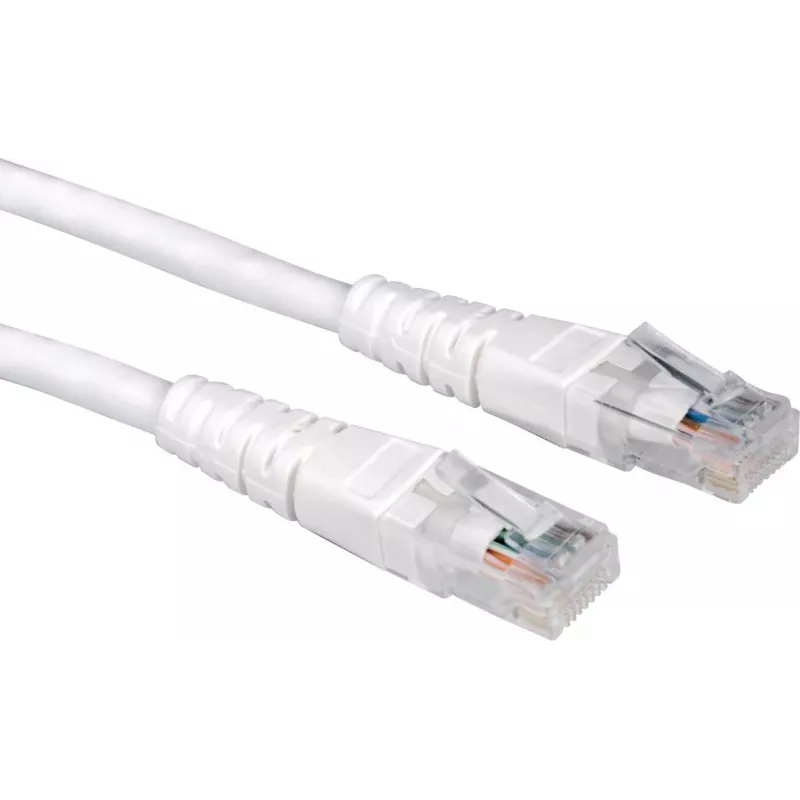

SECOMP STANDARD UTP-patchkabel Cat.6 (Class E), wit, 1 m (S1771)

For reliable gigabit links in tight spaces, this 1-meter Cat.6 UTP patch cable pairs a snagless molded boot with LSZH jacketing and gold-plated contacts. It is built for clean patching in racks, wall outlets, and desktop runs where short, tidy connections matter.

Highlights

• Cat.6 (Class E) performance up to 250 MHz, 1 Gbps
• Unshielded twisted pair (U/UTP) with 26 AWG stranded copper conductors
• Snagless molded boot protects the locking tab during frequent moves
• LSZH (Low Smoke Zero Halogen) jacket for safer indoor use
• Gold-plated RJ45 contacts (50µ) ensure consistent signal integrity
• 1:1 wiring (TIA/EIA 568B) for straight-through Ethernet connections

In daily use

The white jacket blends into office and home environments, while the snagless design prevents accidental disconnects when routing through cable managers. The stranded conductors remain flexible, making this cable easy to dress into patch panels or behind desks without kinking. It handles Gigabit Ethernet and Power over Ethernet applications within its length, and the LSZH material reduces toxic smoke in the event of fire—an important consideration for public buildings and server rooms.

Full specifications

• Cable type: UTP (Unshielded Twisted Pair), Cat.6 (Class E)
• Length: 1 m
• Colour: White
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µ)
• Wiring: 1:1 (TIA/EIA 568B)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Conductor: Copper (Cu), 26 AWG stranded
• Shielding: Unshielded (U/UTP)
• Boot: Molded, snagless
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet)
• Standards: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2
• Operating temperature: -20°C to +60°C

Final note

A short, dependable patch cable that meets Cat.6 specifications without excess bulk—ideal for high-density patching and visible installations where a clean white finish is preferred.
