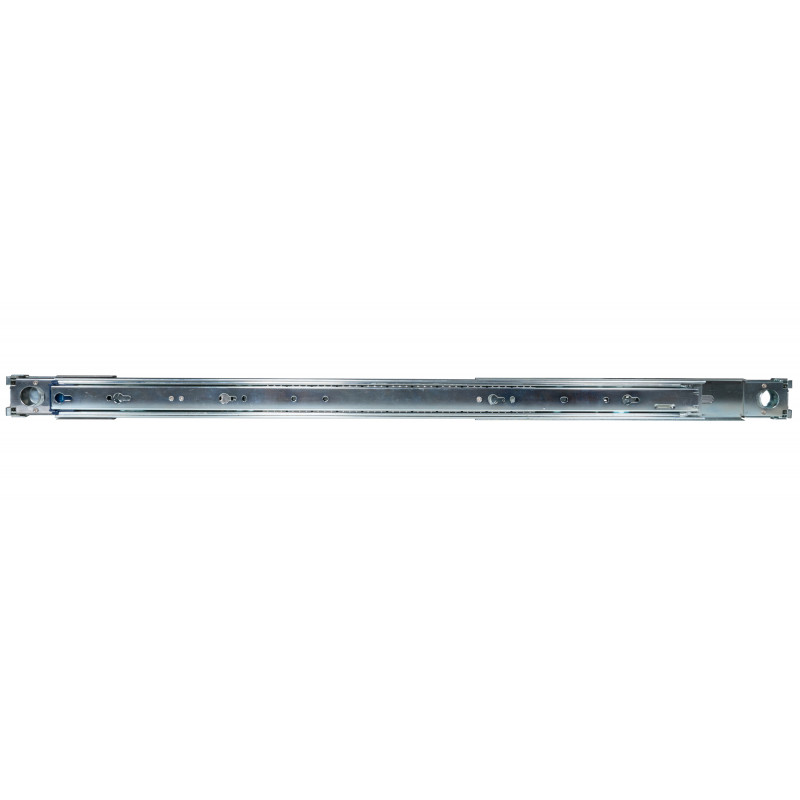

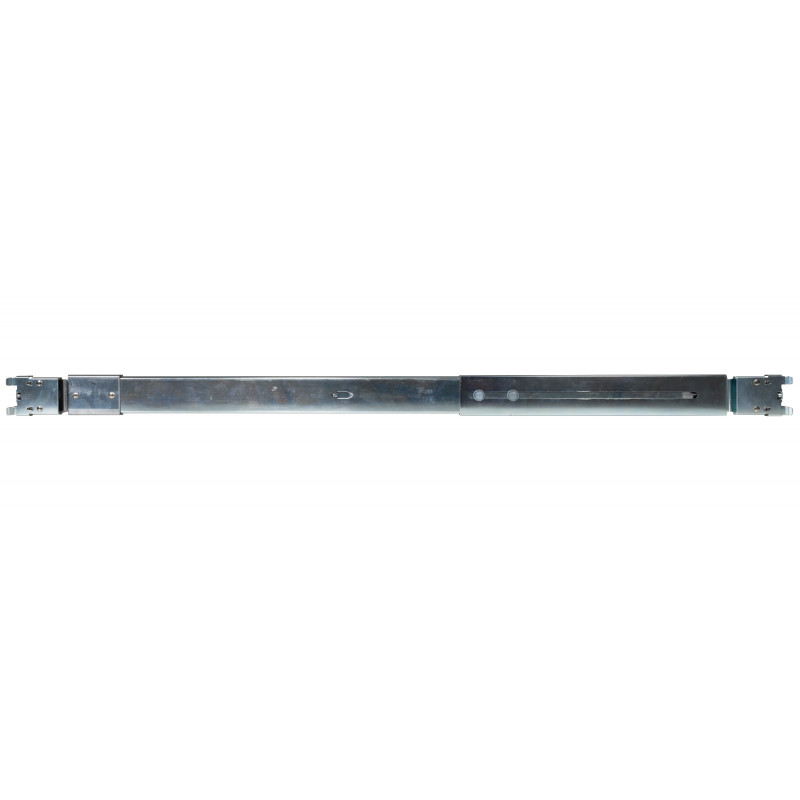

Securepoint telescooprails Premium voor RC300/RC400/RC1000

These premium telescopic rackmount rails provide a robust and convenient solution for mounting Securepoint RC300, RC400, and RC1000 series network security appliances in standard 19-inch racks. Engineered with full-extension ball bearing slides, they allow the appliance to be pulled out completely for easy access during maintenance or configuration, while the positive stop lock ensures stability in both closed and extended positions. The tool-less quick-release tabs enable fast installation without the need for additional tools, saving valuable time in data center environments. Constructed from high-grade cold-rolled steel with a corrosion-resistant finish, these rails are built to withstand continuous heavy-duty use, supporting up to 45 kg (100 lbs). The adjustable depth range from 450 mm to 800 mm accommodates various rack depths, and the slim-line design maximizes available rack space. This pair of rails is the ideal accessory for securely and efficiently integrating your Securepoint appliance into your IT infrastructure.

Advantages

The full-extension mechanism provides complete access to the appliance, simplifying upgrades and troubleshooting. The tool-less installation reduces setup time and effort, while the robust steel construction ensures long-term reliability. The positive stop lock prevents accidental movement, enhancing safety during service. Additionally, the adjustable depth and slim profile make these rails versatile for different rack configurations.

Suitable for

• Securepoint RC300 series appliances
• Securepoint RC400 series appliances
• Securepoint RC1000 series appliances
• Standard 19-inch 4-post racks
• Data centers and server rooms requiring easy appliance access

Key specifications

• Compatibility: Securepoint RC300, RC400, RC1000
• Rack standard: 19-inch, 4-post
• Extension type: Full extension with ball bearing slides
• Load capacity: up to 45 kg (100 lbs)
• Adjustable depth: 450 mm – 800 mm (17.7 in – 31.5 in)
• Material: High-grade cold-rolled steel
• Color: Black
• Installation: Tool-less quick-release tabs
• Locking mechanism: Positive stop lock
• Corrosion resistance: Galvanized or powder-coated finish
• Included hardware: Mounting screws and cage nuts
• Quantity: 1 pair
• Compliance: RoHS

Recommendations

For optimal performance and safety, verify that your rack depth is within the adjustable range and that the rack is properly grounded. Use the included cage nuts and screws for secure mounting, and periodically check the slide mechanism for smooth operation. These rails are an essential accessory for any Securepoint appliance deployment in a professional IT environment.
