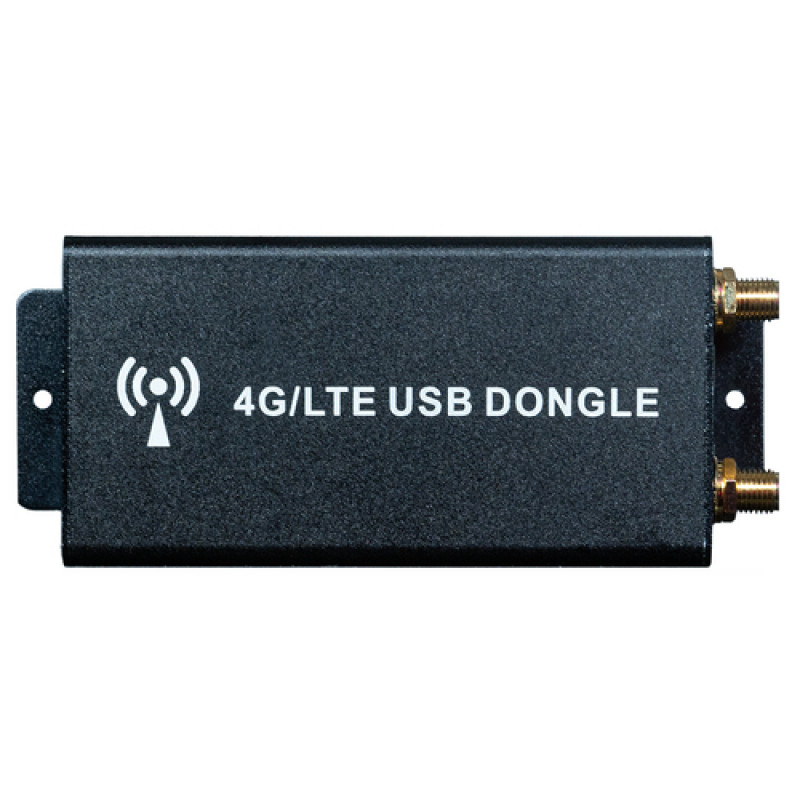

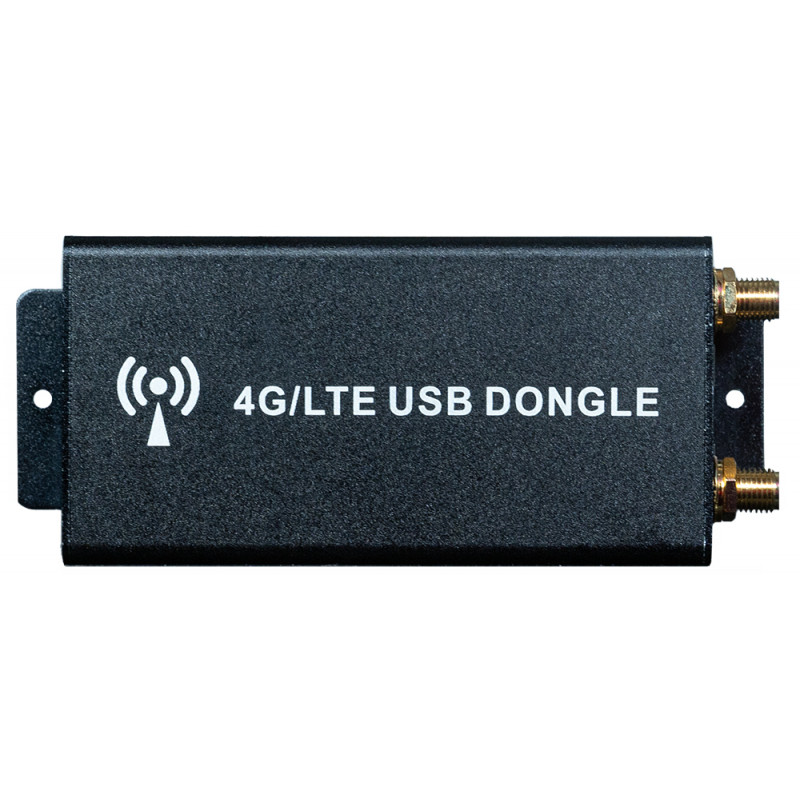

Securepoint upgrade-kit USB-dongle incl. LTE-module

Securepoint UTM appliances often rely on wired WAN connections, leaving remote or temporary sites without a reliable failover path. The Securepoint SP-UTM-11402 LTE Upgrade Kit solves this by adding 4G LTE connectivity through a simple USB dongle and two external antennas, ensuring continuous network availability even when primary lines go down.

Who is it for

This upgrade kit is ideal for IT administrators managing Securepoint UTM/RC series appliances in branch offices, retail locations, or mobile deployments. It suits organisations that need automatic WAN failover, out-of-band management, or primary connectivity in areas without fixed-line broadband.

Main features

• Adds 4G LTE Cat 4 connectivity with download speeds up to 150 Mbps and upload speeds up to 50 Mbps.

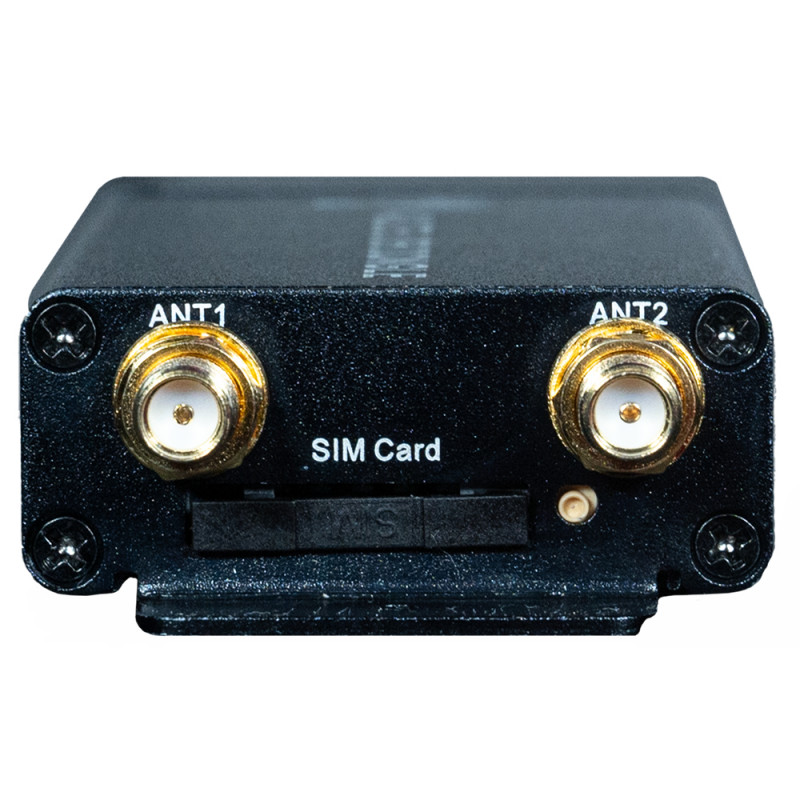

• Includes two external SMA antennas for improved signal reception in weak coverage areas.
• Supports 2G, 3G, and 4G networks for broad carrier compatibility.
• USB 2.0 interface for plug-and-play integration with Securepoint UTM/RC appliances.
• Micro-SIM slot for flexible carrier selection.
• Bus-powered operation – no external power supply needed.
• Integrated into Securepoint OS for seamless configuration and monitoring.

Specifications

• Product type: LTE upgrade kit
• Connectivity technology: 4G LTE (FDD/TDD), 3G UMTS/HSPA+, 2G GSM/GPRS/EDGE
• Interface: USB 2.0
• LTE category: Cat 4
• Max download speed: 150 Mbps
• Max upload speed: 50 Mbps
• SIM card type: Micro-SIM (2FF)
• Antenna type: External (2x included)
• Antenna connector: SMA
• LTE FDD bands: B1, B3, B5, B7, B8, B20, B28
• LTE TDD bands: B38, B40, B41
• UMTS/HSPA+ bands: B1, B5, B8
• GSM/GPRS/EDGE bands: 900/1800 MHz
• Compatibility: Securepoint UTM/RC series appliances (e.g., RC100, RC200, RC300, RC500, RC1000)
• Operating temperature: -20°C to 60°C
• Kit contents: LTE USB dongle, 2x external LTE antennas, USB extension cable, installation guide
• Power supply: USB bus-powered

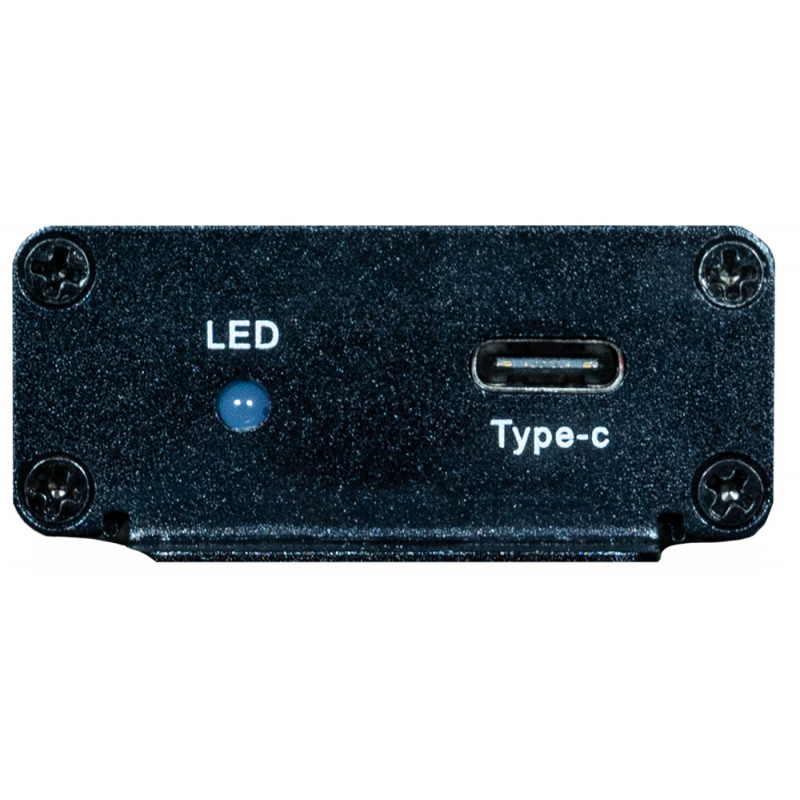

• LED indicators: Status LED (network activity, signal strength)
• Management: Integrated into Securepoint OS/firmware
• Security features: VPN passthrough, firewall integration (via Securepoint appliance)

Tips

Position the external antennas away from metal objects and at least 1 metre apart for optimal signal diversity. For failover scenarios, configure the LTE interface as a secondary WAN in Securepoint OS and test automatic switchover before deployment.
